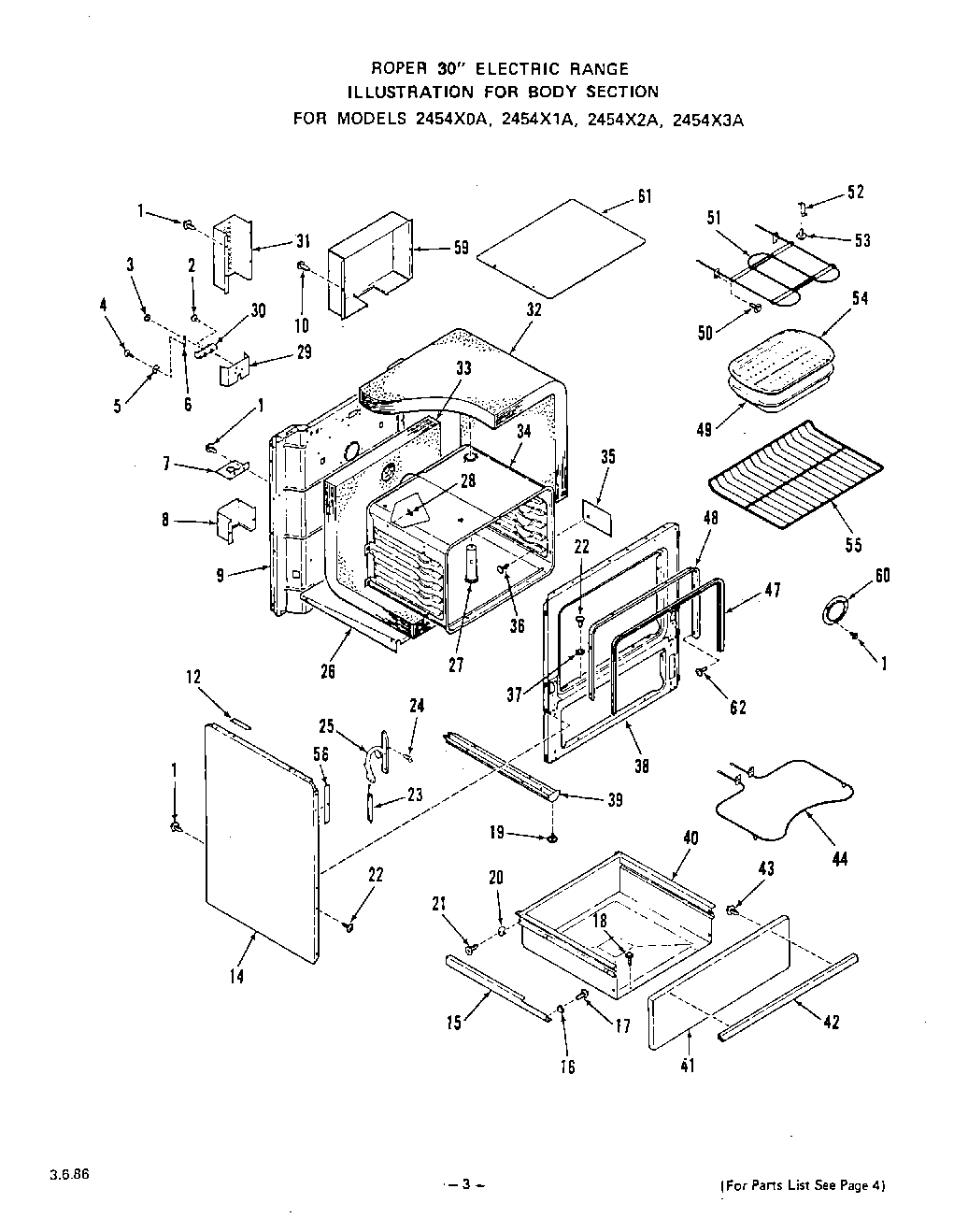

2454X2A 04 – BODY

Products

Position	Product
2	Screw 10-32×1“
3	Hex Nut 10-32
4	Screw 10-32×7/16“
5	Washer
6	Ground Strap
7	Range Service Mounting Plate
8	Wire Shield-Lower
9	Main Back
10	WP112432 Whirlpool Nut Assembly
12	Spacer-Main Top (2 Req)
14	Body Side (Lt. or Rt.) (Black)
15	Support-Storage Drawer (Lt. or Rt.)
16	Front Slide Block-(Lt. or Rt.)
17	Screw 10-32×17/32“
19	Leg Leveler (4 Req)
20	Rear Slide Block – Lt. or Rt.
21	Screw 8 – 32 x 3/8“
22	Screw 10ABx1/2“
23	Spring-Oven Door (Lt. or Rt.)
24	Screw
25	Hinge-Oven Door
25	Left
25	Right
26	Retainer-Bottom Insulation
27	Vent Tube
28	Thermostat Bulb Clip (2 Required)
29	Insulation-Service Cord
30	Junction Block
31	Shield-Upper Wire
32	Insulation-Oven Top & Sides (1 Piece)
33	Insulation-Oven Back & Bottom (1 Piece)
34	All 2234 & 2244 Models
35	Insulation Retainer-Rt. or Lt.
36	Dart-Button Head (2 Required)
37	WPL 21067
38	Front Frame
38	Front Frame
38	WPL 326042
39	Base w/Levelers (Lt. or Rt.)
40	Storage Drawer
41	WPL 326078
42	Handle-Broiler Door
43	WPL 295850
44	WPL 325883
47	WPL 326293
48	main chassis (almond)
49	WPL ARI11237A5
49	WPL 293098
49	WPL 331592
51	WPL 326360
52	Support-Broiler Element
53	Screw 10-16×7/16“
54	WPL ARI11238A7
54	WPL 293099
54	WPL 326297
55	WPL 326068
56	WPL 327378
59	WPL 326495
60	WPL 326935
61	WPL 319163
61	WPL 331867
61	WPL ARI11239A7
62	Screw 10ABx1/2“
