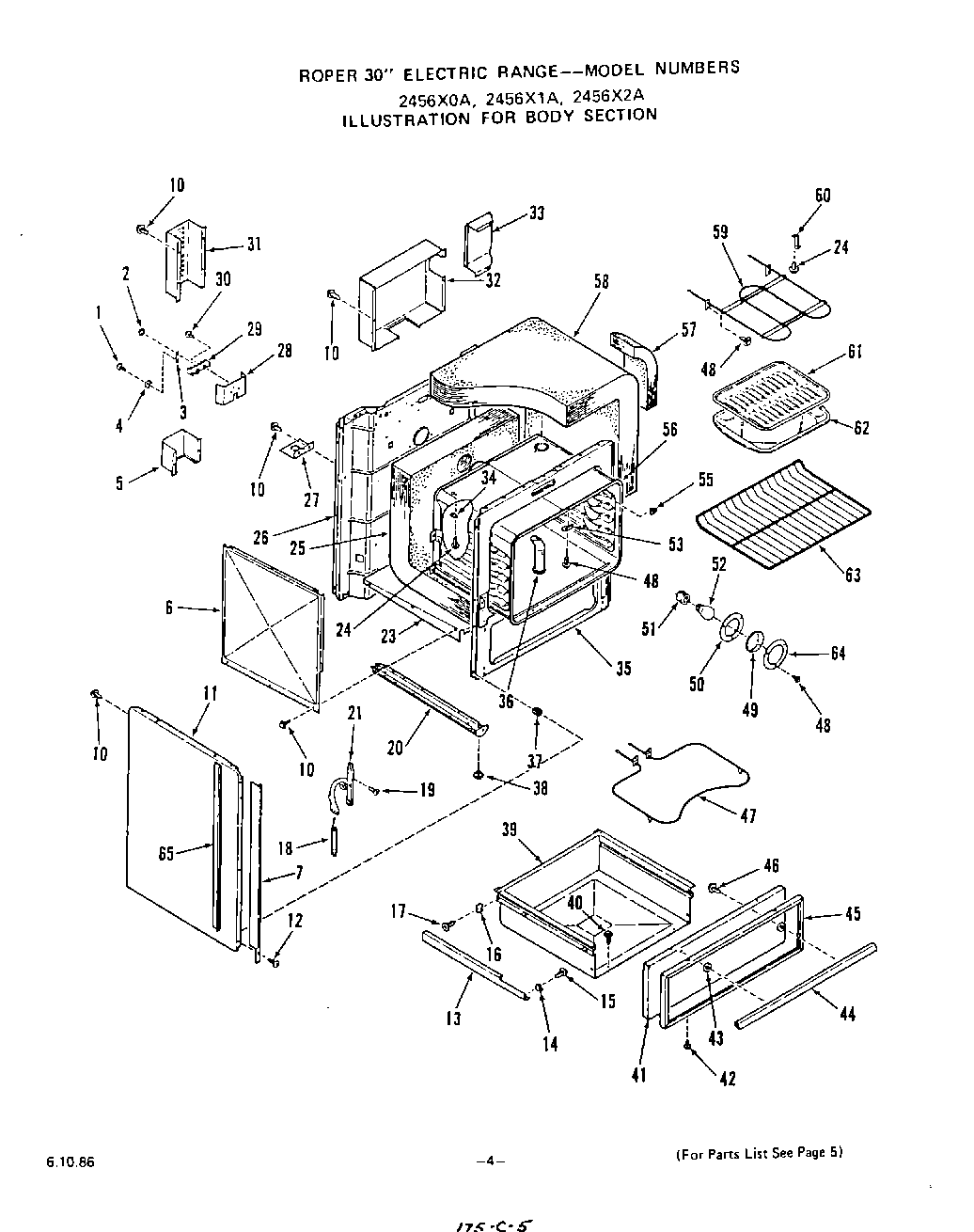

2456X0A 05 – BODY

Products

Position	Product
1	Screw 10-32×7/16“
2	Hex Nut 10-32
3	Ground Strap
4	Washer
5	Wire Shield-Lower
6	Retainer-Insulation (Lt. or Rt.)
7	Trim-Side (Left)
7	Trim-Side (Right)
7	Trim-Side
11	Body Side (Lt. or Rt.) (Black)
12	Screw 10ABx1/2“
13	Support-Storage Drawer (Lt. or Rt.)
14	Front Slide Block-(Lt. or Rt.)
15	Screw 10-32×17/32“
16	Rear Slide Block – Lt. or Rt.
17	Screw 8 – 32 x 3/8“
18	Spring-Oven Door (Lt. or Rt.)
19	Screw
20	Base w/Levelers-Lt. or Rt.
20	24062A, 24262A Models
20	Base w/Levelers (Lt. or Rt.)
21	Hinge-Oven Door
21	Right
21	Left
23	Retainer-Bottom Insulation
25	Insulation-Oven Back & Bottom
26	Main Back
27	Range Service Mounting Plate
28	Insulation-Service Cord
29	Junction Block
30	Screw 10-32×1“
31	Shield-Upper Wire
32	WPL 333128
33	Wire Shield
34	Cover Plate-Thermostat Bulb
35	Front Frame
36	Vent Tube
38	Leg Leveler (4 Req)
39	Storage Drawer
41	Panel-Storage Drawer
42	Screw 6-20×3/8“
43	Spacer
44	Handle-Broiler Door
45	Frame-Front Panel
46	WPL 295850
47	Bake Element
47	Bake Element (208 Volt (Optional))
47	WPL 325883
48	Screw 10-16×7/16“
49	Lens-Oven Light
50	Gasket-Lens
51	Holder-Oven Light Bulb
52	Oven Lamp Bulb
53	Cover
55	Clip-Thermostat Bulb (2 Req)
56	WPL 331578
57	Insulation (Rt. or Lt.)
58	Insulation-Oven Top & Sides (1 Piece)
59	WPL ARI11265A7
59	WPL 326360
59	WPL 326361
60	Support-Broiler Element
61	WPL 326297
62	WPL 331592
63	Oven Rack (2 Req)
64	Retainer-Oven Light Lens
65	Extension Side Trim
