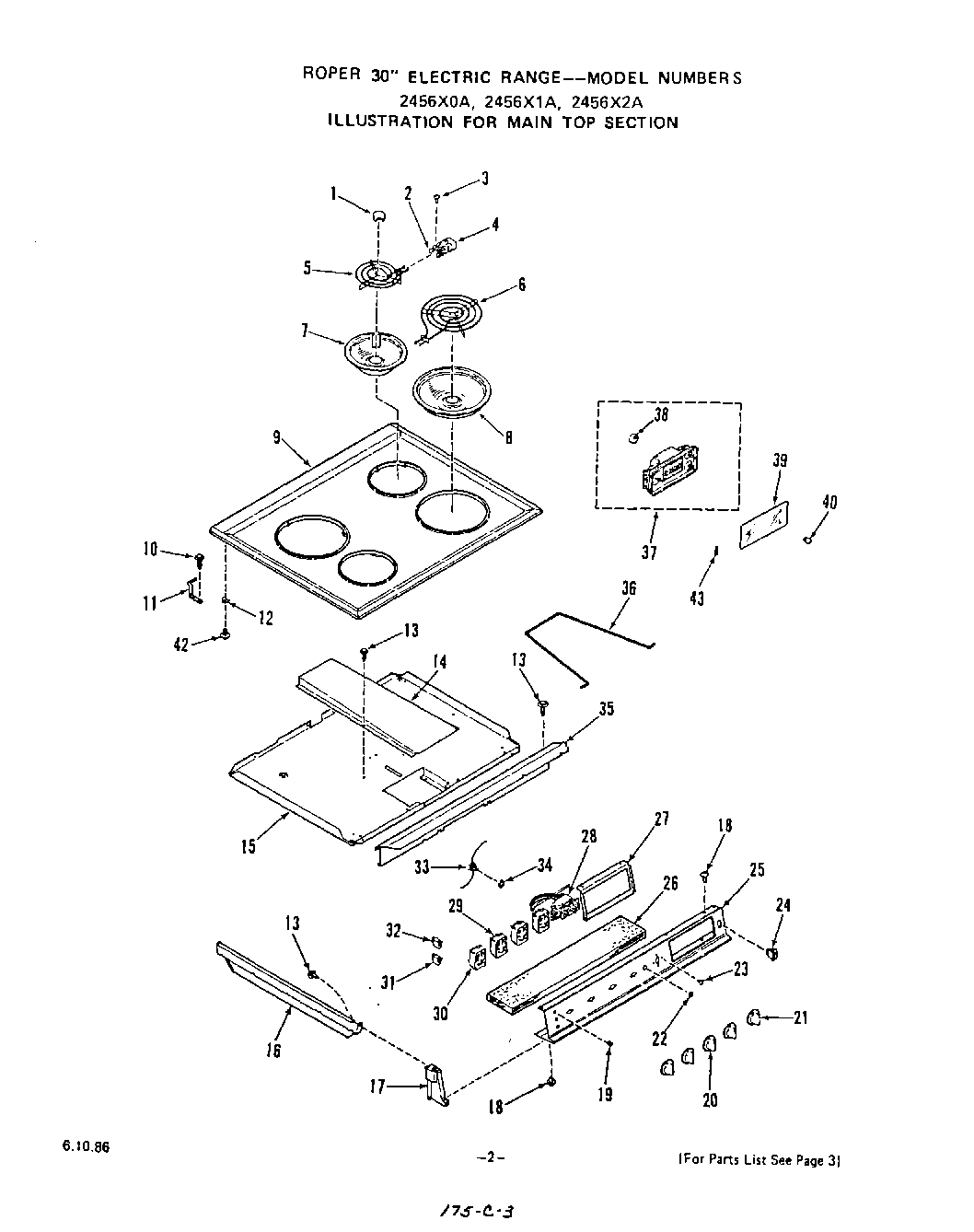

2456X1A 03 – MAIN TOP

Products

Position	Product
	WPL 335191
	WPL ARI11273A5
1	Medallion (2 Req) All 2101 Models
2	Bracket-Term. Block (2 Req) All 2101 Mod.
3	Screw 7-32×5/16“(2 Req) All 2101 Models
4	Term. Block w/Leads-All 2101 Models
5	6“ Surface Element (1 Req) All 2101 Models
6	8“ Surface Element (1 Req) All 2101 Mod.
7	6“ Burner Bowl (1 Req) All 2101 Models
8	8“ Burner Bowl (1 Req) All 2101 Models
9	Top-Main
9	Chrome 2426X1A, 2A Models
9	Chrome 2426X0A Models
11	Hinge-Main Top (Left)
11	Hinge-Main Top (Right)
11	Hinge-Main Top (Right 1456X0A Models)
11	Hinge-Main Top
11	Hinge-Main Top (Left 1456X0A Models)
12	Bracket-Hinge
13	Screw 10-16×7/16“
14	Switch, Fluorescent Light
15	Bottom-Burner Box
16	Extension-Burner Box Side (1456X0A Models)
16	Extension-Burner Box Side
16	Extension-Burner Box Side
17	End Cap-Manifold Panel (Right)
17	Cap-End
17	End Cap-Manifold Panel (Left)
18	Screw-10-32×1/2“
19	Lens-Indicator Light
20	Knob-Infinite Control (4 Req)
21	Knob-Thermostat
22	Knurled Nut
23	WPL 78565
24	Switch-Oven Light
24	Switch-Oven Light (1456X0A Models)
24	Switch-Oven Light
25	Panel-Control
26	Insulation
27	Bracket-Clock
28	Thermostat
29	Left Front & Right Rear
30	Right Front & Left Rear
31	Light-Indicator
32	Light-Indicator (Surface)
33	Push Switch (Lock-Unlock)
34	Lock Nut
35	Cover-Wire
36	Support Rod-Main Top
37	Clock
38	Motor-Clock
39	Glass-Clock
40	WPL ARI11272A2
40	Knob-Clock (Start & Stop Time)
40	Knob-Clock
42	Screw 10-32×5/16“
43	WPL 331334
43	Clip-Clock Bezel
43	WPL 335202
