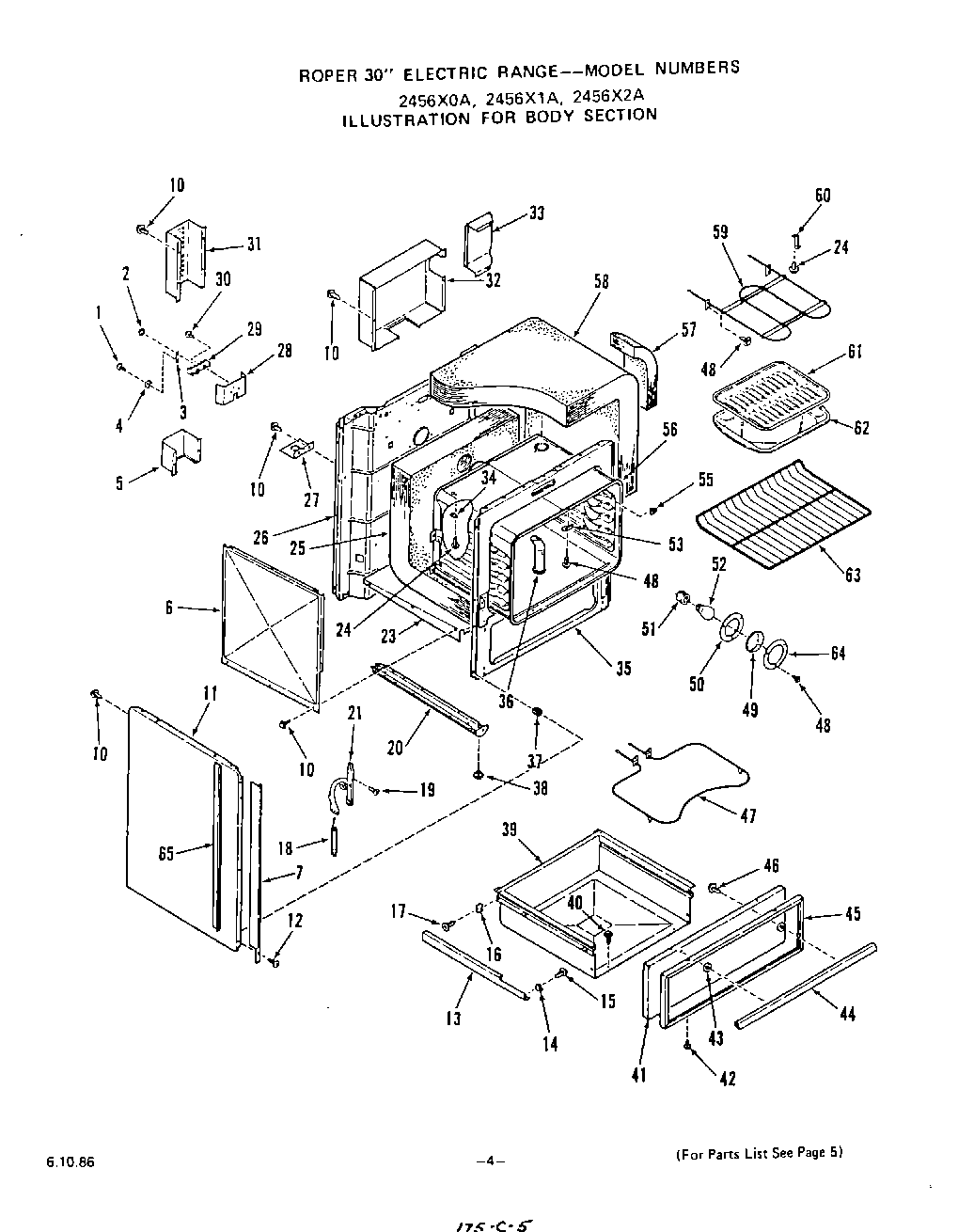

| 1 | Screw 10-32x7/16`` |
| 2 | Hex Nut 10-32 |
| 3 | Ground Strap |
| 4 | Washer |
| 5 | Wire Shield-Lower |
| 6 | Retainer-Insulation (Lt. or Rt.) |
| 7 | Trim-Side |
| 7 | Trim-Side (Left) |
| 7 | Trim-Side (Right) |
| 11 | Body Side (Lt. or Rt.) (Black) |
| 12 | Screw 10ABx1/2`` |
| 13 | Support-Storage Drawer (Lt. or Rt.) |
| 14 | Front Slide Block-(Lt. or Rt.) |
| 15 | Screw 10-32x17/32`` |
| 16 | Rear Slide Block - Lt. or Rt. |
| 17 | Screw 8 - 32 x 3/8`` |
| 18 | Spring-Oven Door (Lt. or Rt.) |
| 19 | Screw |
| 20 | Base w/Levelers (Lt. or Rt.) |
| 20 | 24062A, 24262A Models |
| 20 | Base w/Levelers-Lt. or Rt. |
| 21 | Left |
| 21 | Hinge-Oven Door |
| 21 | Right |
| 23 | Retainer-Bottom Insulation |
| 25 | Insulation-Oven Back & Bottom |
| 26 | Main Back |
| 27 | Range Service Mounting Plate |
| 28 | Insulation-Service Cord |
| 29 | Junction Block |
| 30 | Screw 10-32x1`` |
| 31 | Shield-Upper Wire |
| 32 | WPL 333128 |
| 33 | Wire Shield |
| 34 | Cover Plate-Thermostat Bulb |
| 35 | Front Frame |
| 36 | Vent Tube |
| 38 | Leg Leveler (4 Req) |
| 39 | Storage Drawer |
| 41 | Panel-Storage Drawer |
| 42 | Screw 6-20x3/8`` |
| 43 | Spacer |
| 44 | Handle-Broiler Door |
| 45 | Frame-Front Panel |
| 46 | WPL 295850 |
| 47 | WPL 325883 |
| 47 | Bake Element |
| 47 | Bake Element (208 Volt (Optional)) |
| 48 | Screw 10-16x7/16`` |
| 49 | Lens-Oven Light |
| 50 | Gasket-Lens |
| 51 | Holder-Oven Light Bulb |
| 52 | Oven Lamp Bulb |
| 53 | Cover |
| 55 | Clip-Thermostat Bulb (2 Req) |
| 56 | WPL 331578 |
| 57 | Insulation (Rt. or Lt.) |
| 58 | Insulation-Oven Top & Sides (1 Piece) |
| 59 | WPL 326360 |
| 59 | WPL ARI11278A3 |
| 59 | WPL 326361 |
| 60 | Support-Broiler Element |
| 61 | WPL 326297 |
| 62 | WPL 331592 |
| 63 | Oven Rack (2 Req) |
| 64 | Retainer-Oven Light Lens |
| 65 | Extension Side Trim |
