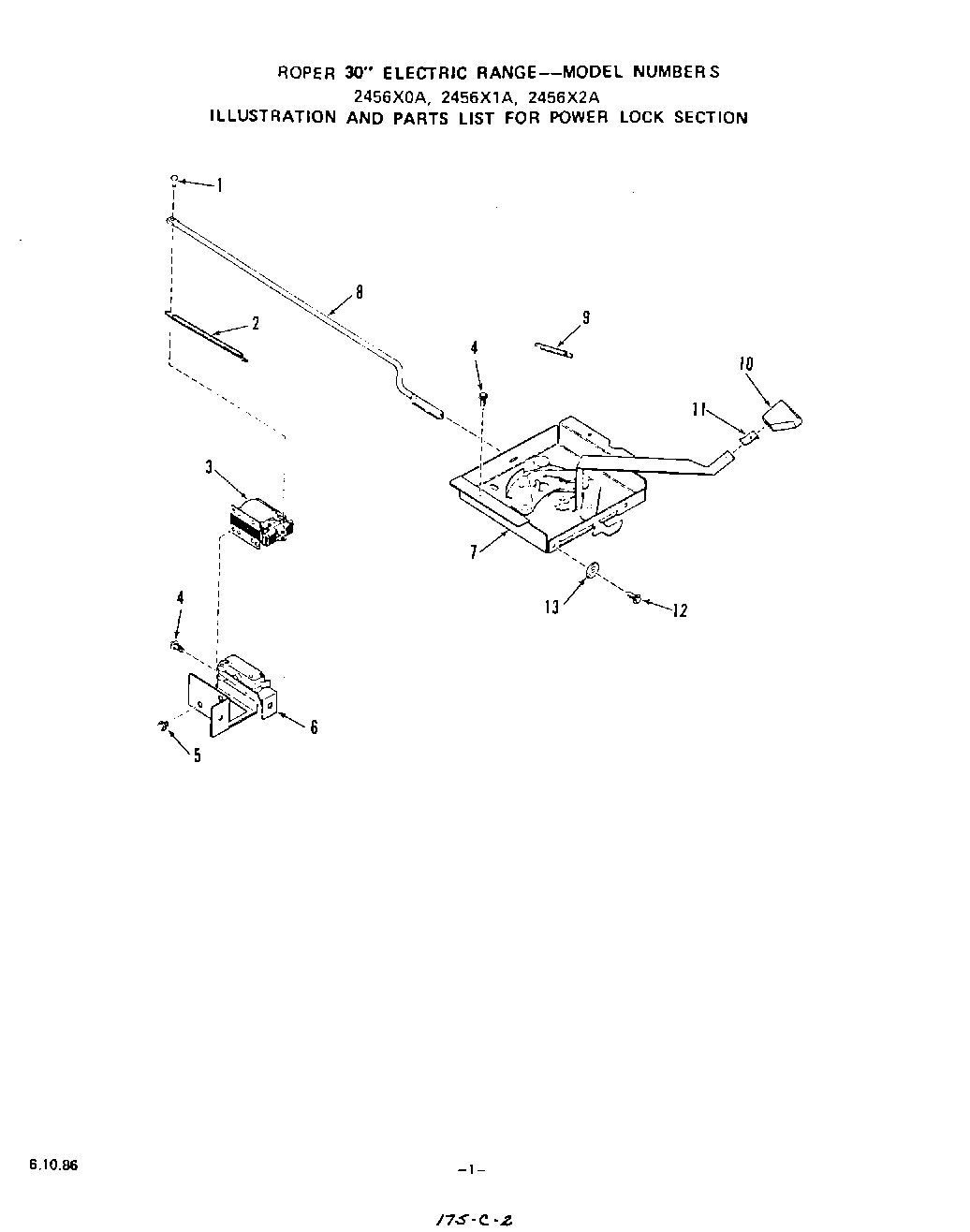

2456X2A 02 – POWER LOCK

Products

PositionProduct
1Stud
2Spring-Solenoid
3Solenoid Only
5Mounting Screw
6Bracket w/Switch
7Oven Door Lock Assm. (Inc. Key 9)
8Switch, Oven Light
9Spring-Lock Handle
10Knob-Lock
11Clip-Knob
12Screw 10-16×7/16“
13WPL 21067
