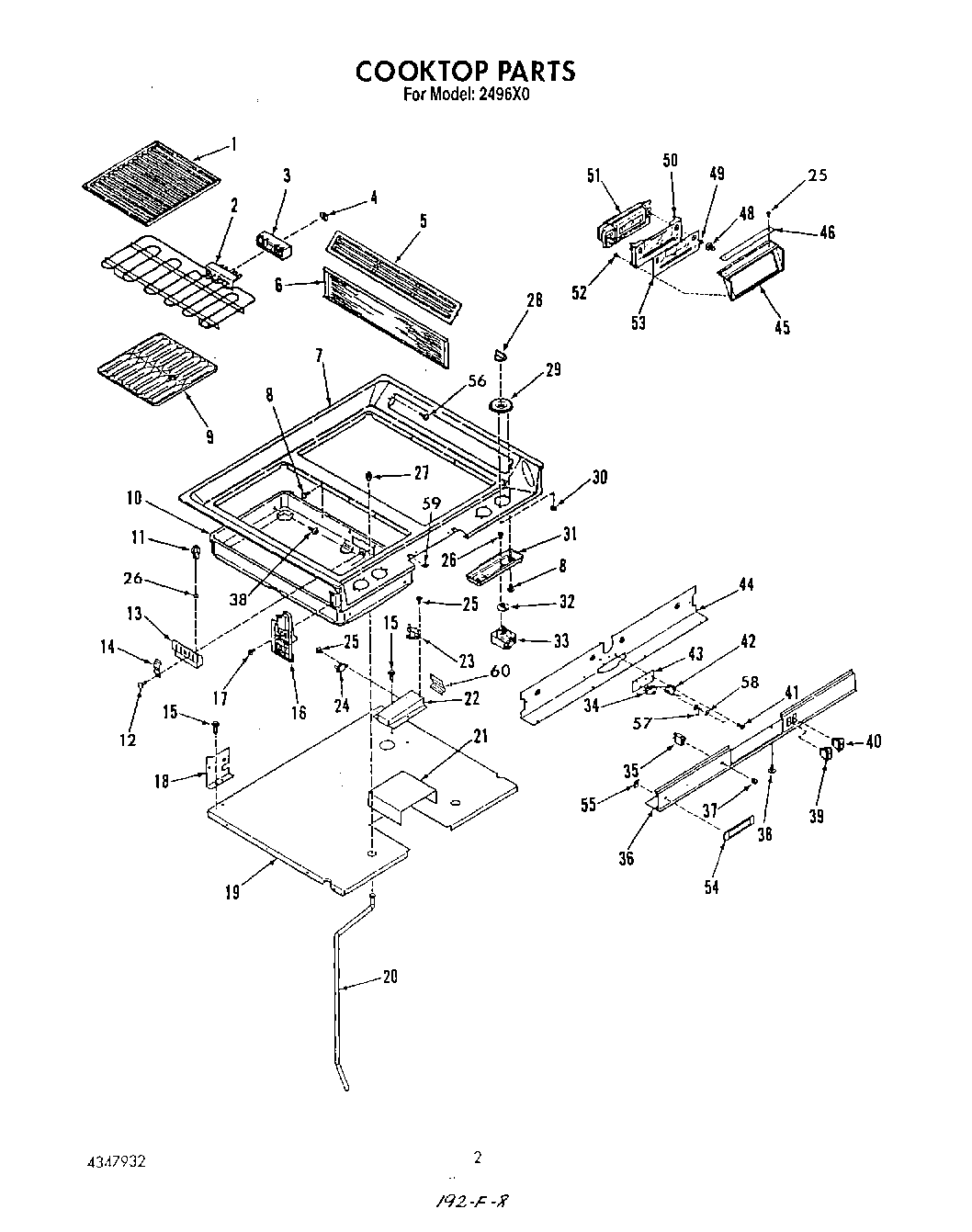

2496^0 02 – COOK TOP

Products

Position	Product
1	Grate-Grill
2	Element, Grill (240 Volt)
2	Element, Grill (208 Volt (Opt.))
3	Block, Terminal
4	Clip – Push on
5	Grill, Air Intake
6	Air Filter
7	Cooktop, Main (Almond)
7	Cooktop, Main (Chrome)
8	Screw No.6-20×3/8
9	Reflector Grid
10	Grease Well (Left)
10	Grease Well (Right)
11	Terminal
12	Screw, No.8-32 x 3/8
13	Block, Terminal
14	Clamp, Terminal Block
15	SCREW
16	End Cap (Right)
16	End Cap (Left)
17	Screw, No.10 x 5/8
18	Rear Filler (Left)
18	Rear Filler (Right)
19	Retainer, Insul.
20	Tube, Grease
21	Cover, Latch
22	Flue Duct
23	Limit Switch, Thermostat
24	Limit Switch, Blower
25	Screw 6-32×5/16
26	Screw
27	Fitting, Tube
28	Knob, Infinite
29	Bezel, Knob (Left Front)
29	Bezel, Knob (Right Front)
29	Bezel, Knob (Right Rear)
29	Bezel, Knob (Left Rear)
30	Nut, Speed
31	Mounting Plate
32	Seal, Control
33	W10900107 Whirlpool Oven Surface Element Switch
34	Switch, Door Lock
35	Indicator Light
36	Panel, Control
37	Lens, Ind. Light
38	WP308685 Whirlpool Microwave Screw
39	Rocker Switch, Blower/Hi-Lo
40	Rocker Switch, Blower/Oven Light
41	Screw No.4-40×11/16
42	Switch, Micro
43	Insulation
44	Back, Control
45	Bezel, Clock/Oven Control
46	Plate, Clock/Oven Control
48	Knob, Clock/Oven Control
49	Hex Nut
50	Lens, Clock/Oven C
51	WPL 4343004
52	WPL 4333352
53	WPL 4337075
54	WPL 4335903
55	WPL 4323217
56	Screw No.10-32×1/2
57	WPL 4337398
58	Washer
59	WPL 4331069
60	WPL 4337312
