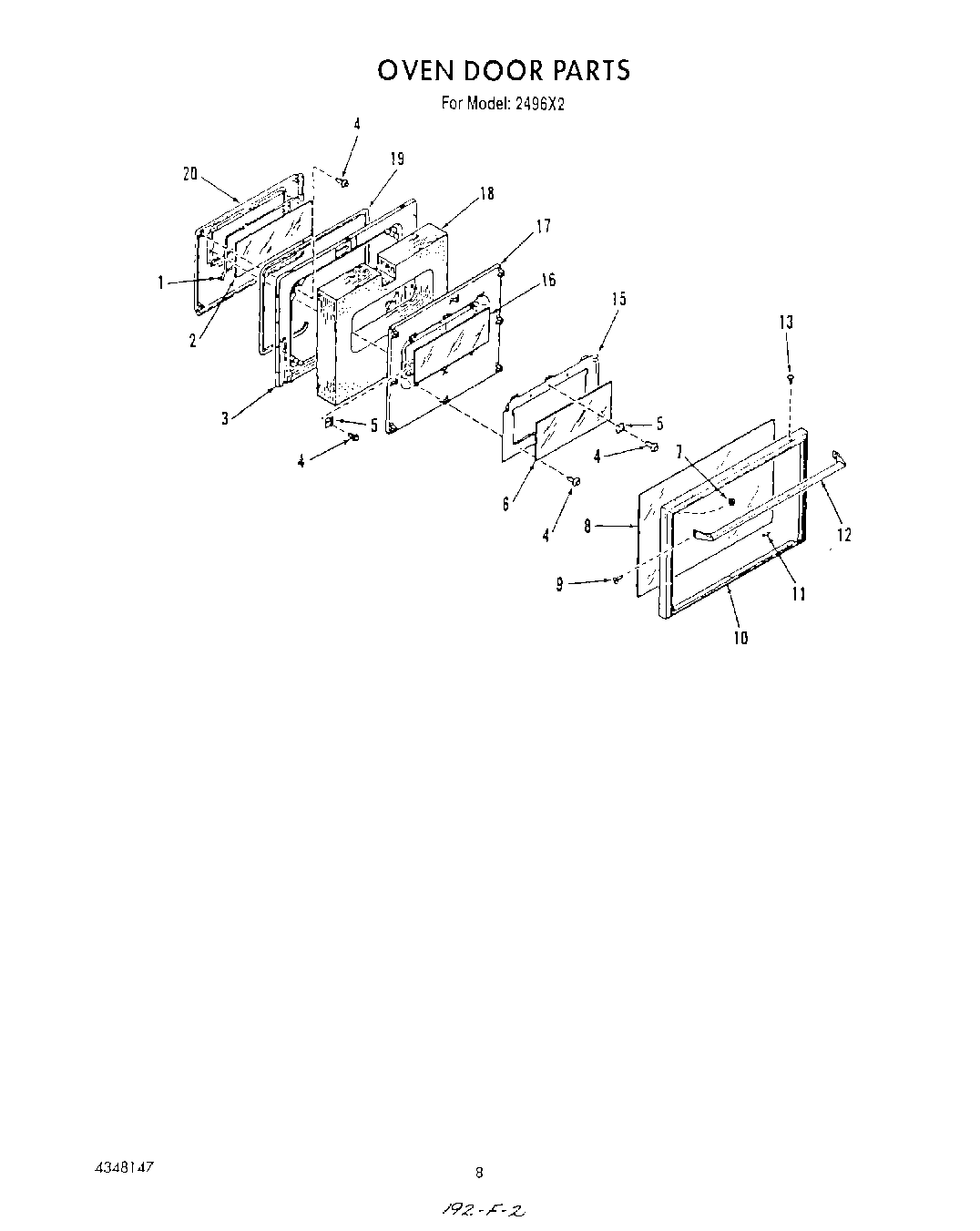

| 1 | Seal, Inner Glass |
| 2 | Glass, Inner Oven Door |
| 3 | Lining, Oven Door |
| 4 | SCREW |
| 5 | Retainer, Glass |
| 6 | Glass, Intermediate |
| 7 | WP488130 Whirlpool Air Conditioner Nut |
| 8 | Glass, Outer |
| 9 | Screw No.8-32x1/2 |
| 10 | Frame |
| 11 | Cushion |
| 12 | Handle, Handle |
| 13 | Screw No.10-32x1/2 |
| 15 | Mounting Plate |
| 16 | Glass, Center |
| 17 | Retainer, Insulation |
| 18 | Insulation, |
| 19 | Gasket, Door |
| 20 | Plug, Door Lining |
