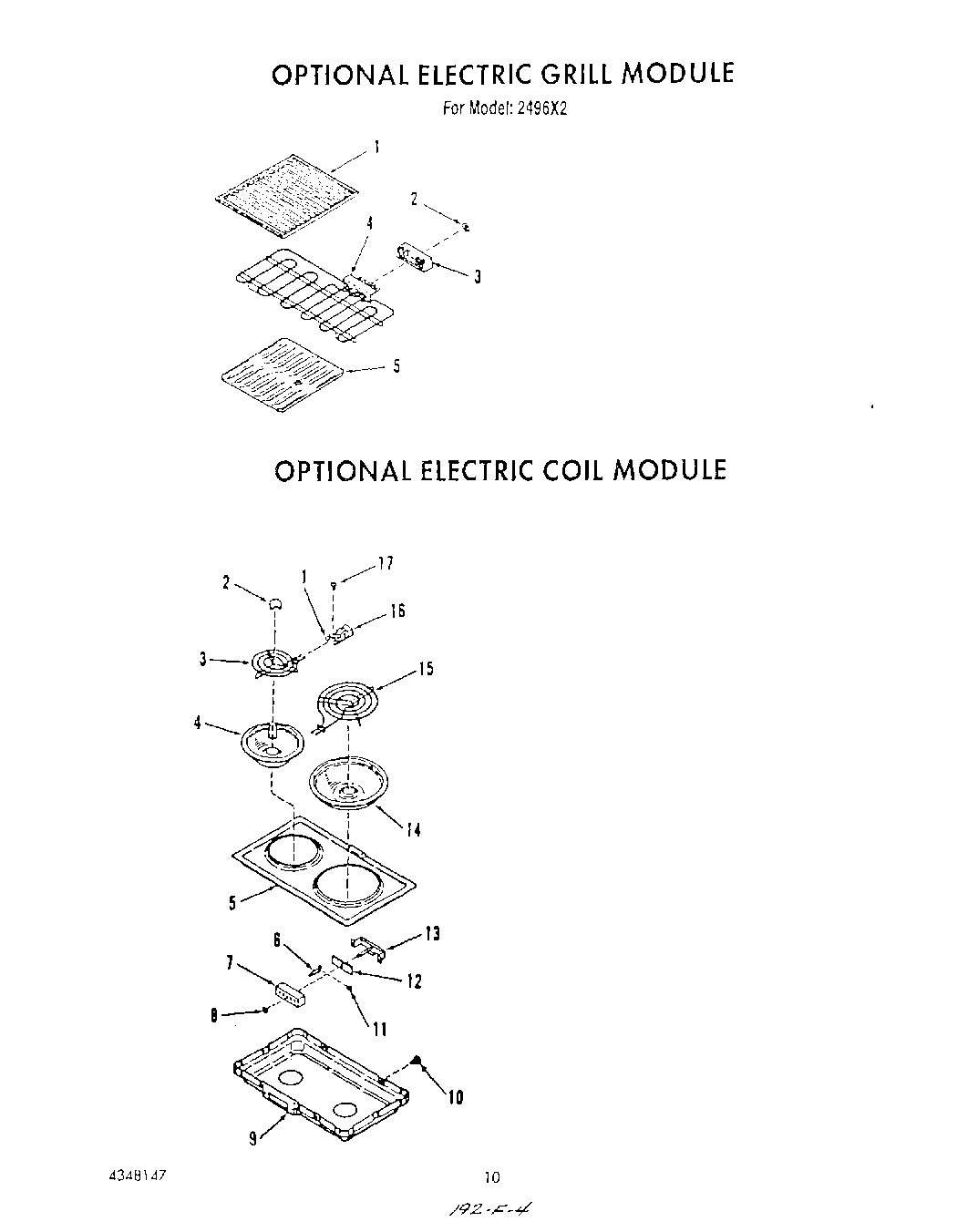

2496^2 08 – ELECTRIC GRILL , ELECTRIC COIL

Products

PositionProduct
1Grate-Grill
1WP4332752 Whirlpool Clip
2Medallion (2)
2Clip – Push on
3Block, Terminal
3WPY04100165 Whirlpool Surface Element
4Element, Grill (208 Volt (Opt.))
4WPW10196406 Whirlpool 6" Chrome Drip Bowl
4Element, Grill (240 Volt)
5Reflector Grid
5Cooktop (Chrome)
5Cooktop (Almond)
6Pin, Terminal (4)
7Block, Terminal
8Nut, Speed
9Pan, Module
10Screw, No.8-32 x 3/8
11Screw
12Insulator
13Bracket – Term.
14DRIP BOWL 8" W/HOLE CHROME
15WP3177565 Whirlpool Surface Element
16BURNER RECEPTACLE KIT
17Screw, No.7-32 x 5/16
