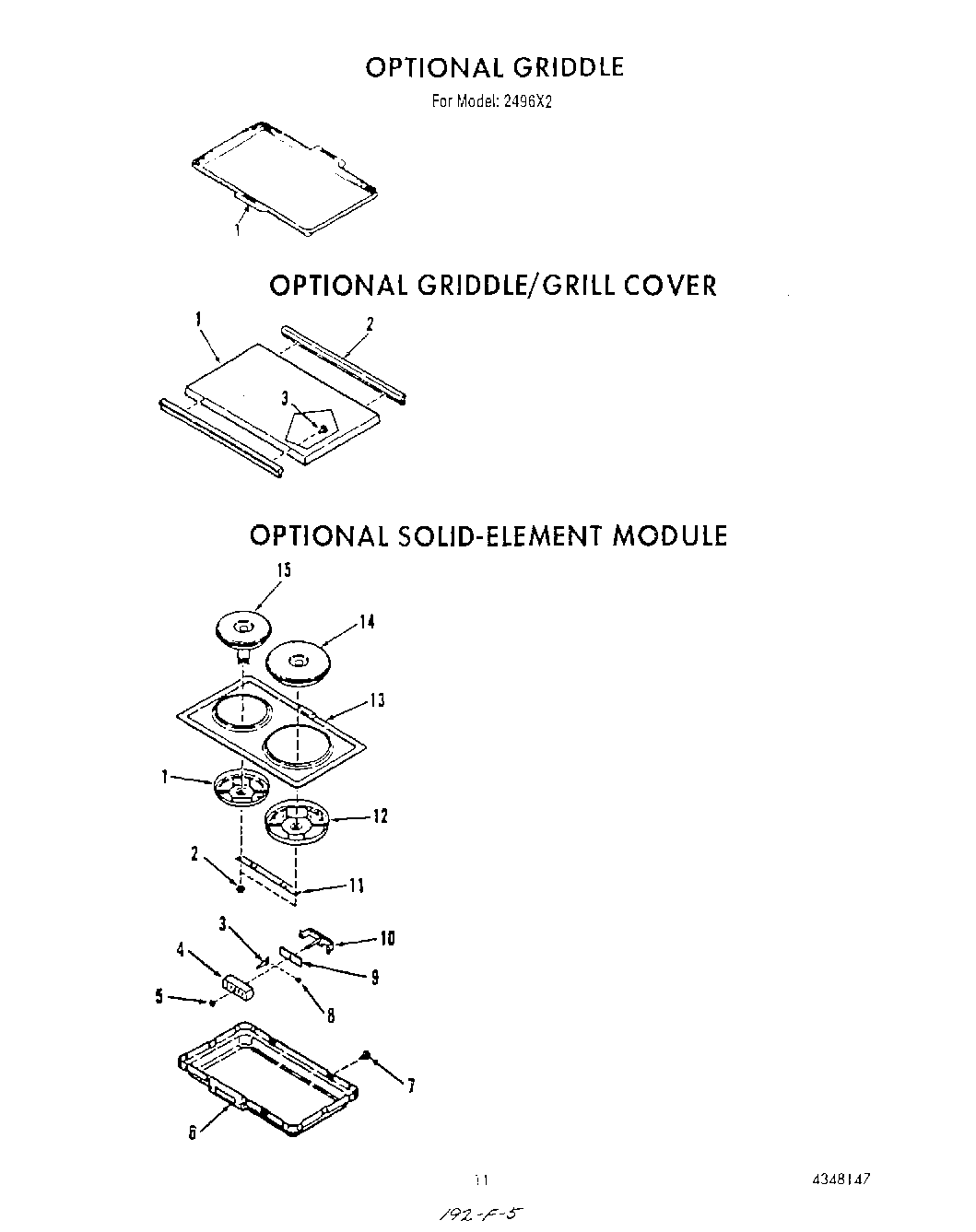

2496^2 09 – GRIDDLE , GRIDDLE AND COVER , SO

Products

PositionProduct
1Clamp
1Griddle
1Cover
2Nut, Mount. (2)
2Handle, (Left/Right)
3Screw
3Pin, Terminal (4)
4Block, Terminal
5Nut, Speed
6Pan-Module
7Screw, No.8-32 x 3/8
8Screw
9Insulator
10Bracket – Term.
11Strap, Element
12Clamp, Elmnt.
13Cooktop (Chrome)
13Cooktop (Almond)
14WP3147132 Whirlpool Surface Element
15WP3147131 Whirlpool Surface Element
