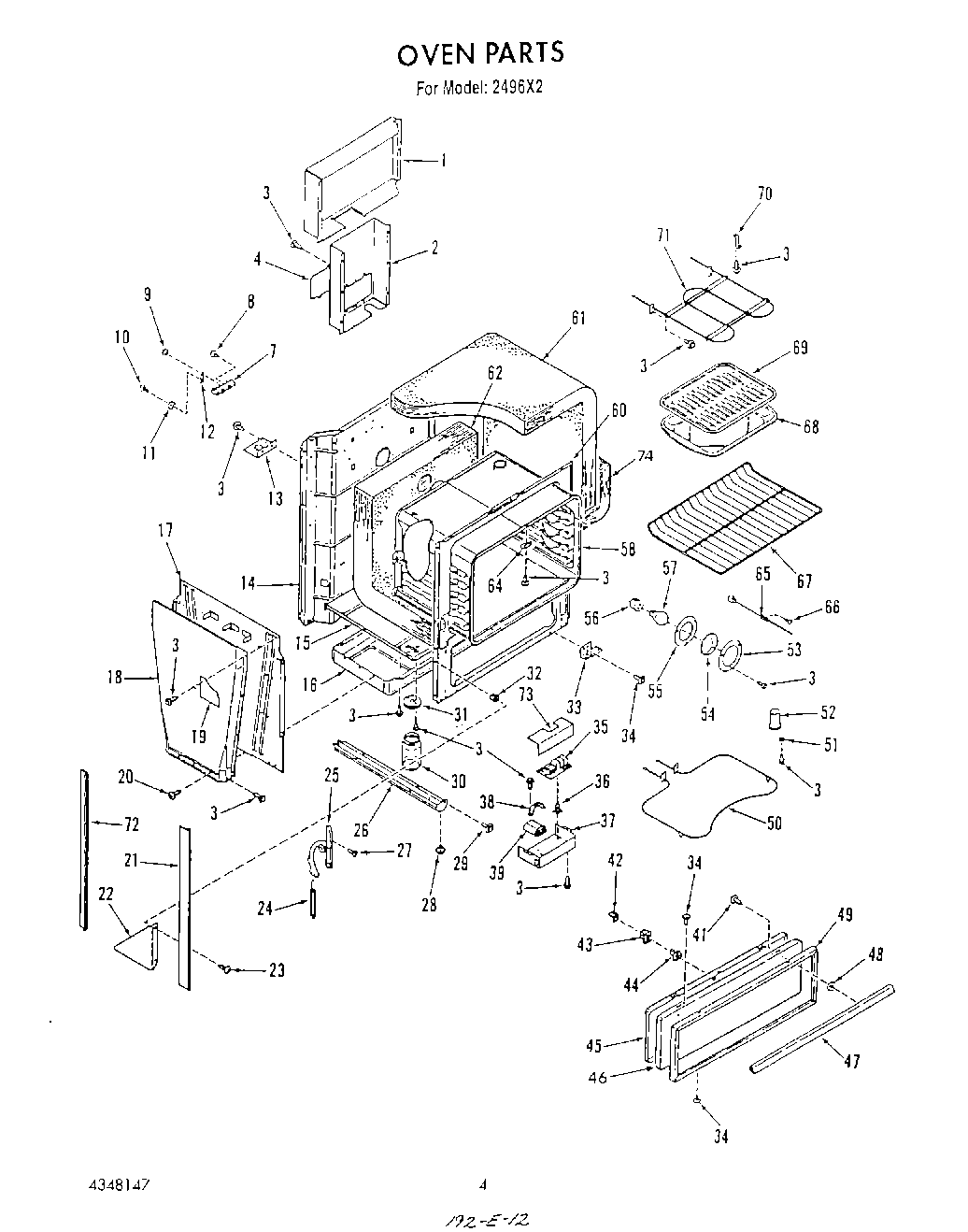

2496^2A 03 – OVEN

Products

Position	Product
1	Wire Cover, Rear – Upper
2	Wire Cover, Lower Rear
4	Plate, Access
7	WP8203546 Whirlpool Terminal Block
8	Screw, No.10-32×1
9	Nut, Hex 10-32
10	Screw No.10-32×7/16
11	Washer
12	Strap, Ground
13	Service Plate
14	Back
15	Retainer, Bottom Insulation
16	Plenum
17	Retainer, Side Insulation
18	Vent Box
19	Wire Cover, End
20	WP308685 Whirlpool Microwave Screw
21	Side Trim (Right)
21	Side Trim (Left)
22	Corner Filler (Left)
22	Corner Filler (Right)
23	Screw No.8×5/8
24	Spring, Door (2)
25	Door Hinge (Right)
25	Door Hinge (Left)
26	Base, W/ Levelers (2)
27	Screw
28	Levelers, Leg (4)
29	Screw, No.10-32×17/32“
30	WPY707869 Whirlpool Drain Jar
31	Jar Lid (2)
32	Nut-Expansion (6)
33	Hinge
34	SCREW
35	Circuit Board
36	Spacer
37	Cover, Wire
38	Clamp, Capacitor
39	Capacitor
41	Screw, No.10-32 x 1/2
42	Bracket
43	Catch
44	Strike
45	Lining, Lower Door
46	Panel, Lower Door
47	Handle
48	Spacer, Dr. Handle
49	Frame, Lower Door
50	Element, Bake (240 Volt)
50	Bake Element (208 Volt (Opt))
51	Washer
52	Vent Tube
53	Retainer, Lens
54	Lens, Oven Light
55	Gasket, Lens
56	W10856866 Whirlpool Light Socket
57	RANGE ONLY 40W 120V APPL BULB
58	Oven Cavity
60	Frame, Front
61	Insulation, Top & Sides
62	Insulation, Back And Bottom
64	Cover
65	Sensor
66	Screw No.6-20×3/8
67	Rack, Oven
69	4396923 Whirlpool Broil Pan Set Gray Porcelain
70	Support, Broil Element
71	WP4334925 Whirlpool Broil Element
72	WPL 4337215
73	WPL 4337413
74	Insulation
