24DEMBWAD4 02 – BODY PARTS

24DEMBWAD4 02 – BODY PARTS

Written by

in

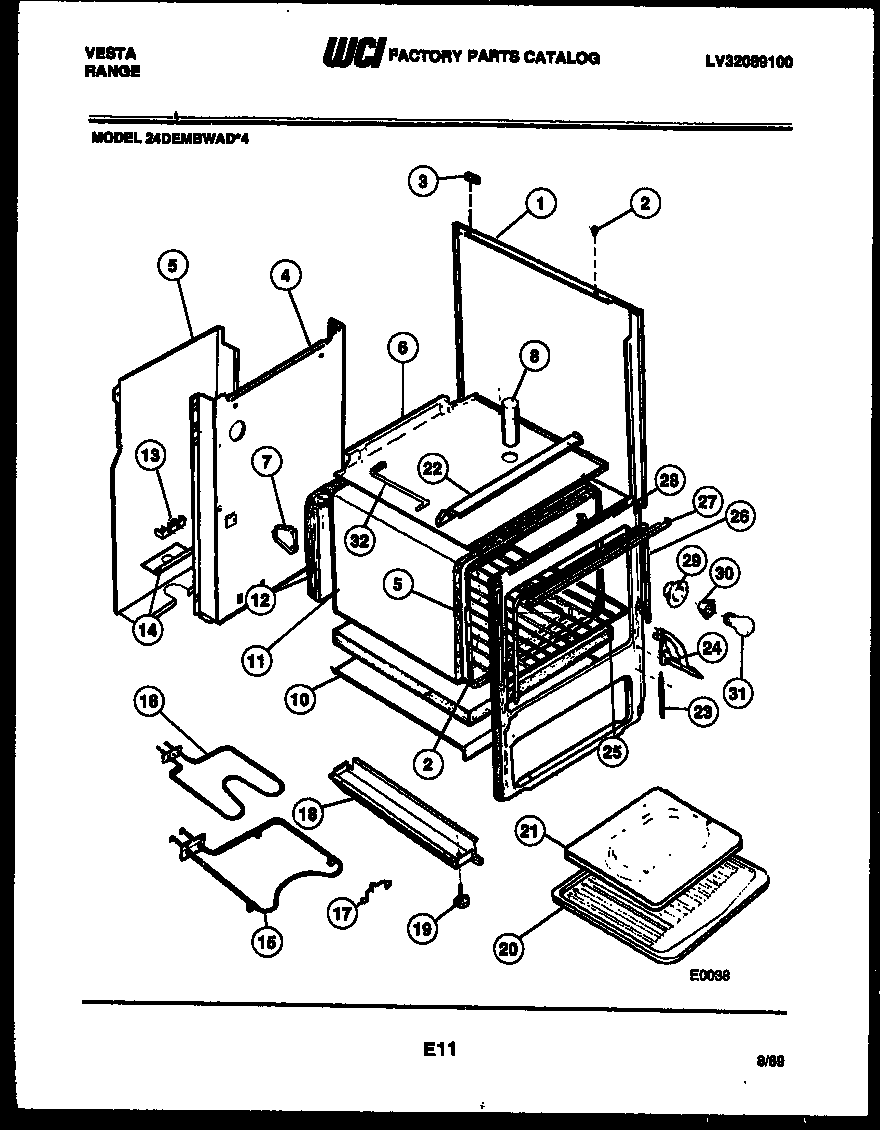

24DEMBWAD4 02 – BODY PARTS

Products

PositionProduct
*28948ANTI-TIP KIT
1PANEL-BODYSIDE (WHITE) (2)
2GROMMET
3GROMMET-MAINTOP
4MAIN BACK
5COVER-WIRE
6BURNER BOX BOTTOM
7SUPPORT-REAR OVN (2)
8TUBE-VENT
9DLINER-OVEN BACK
9ALINER-LEFTSIDE
9LINER-RIGHT SIDE
9BWCI 3017600
9CLINER-OVEN BTM
10PAN-INSULATION
11WCI 3016946
12WCI 3016947
135304409888 Frigidaire Oven Terminal Block with Hardware
14SUPPORT-CONDUIT
15WCI 3009292
16WCI 3009293
17WCI 3009445
18BASE RAIL
19WCI 3051080
20WCI 3016973
21BROILER GRID
22SHIELD SWITCH
23SPRING (2)
24WCI 3204670
24A318348801 Frigidaire Oven Left Side Door Hinge
25WCI 3016128
26SEAL OVEN DOOR
27SUPPORT-CONTROL PANEL
28FRAME-FRONT
29WCI 3051511
30316116400 Frigidaire Oven Light Socket
31WCI AP00067016
32WCI 3205749
