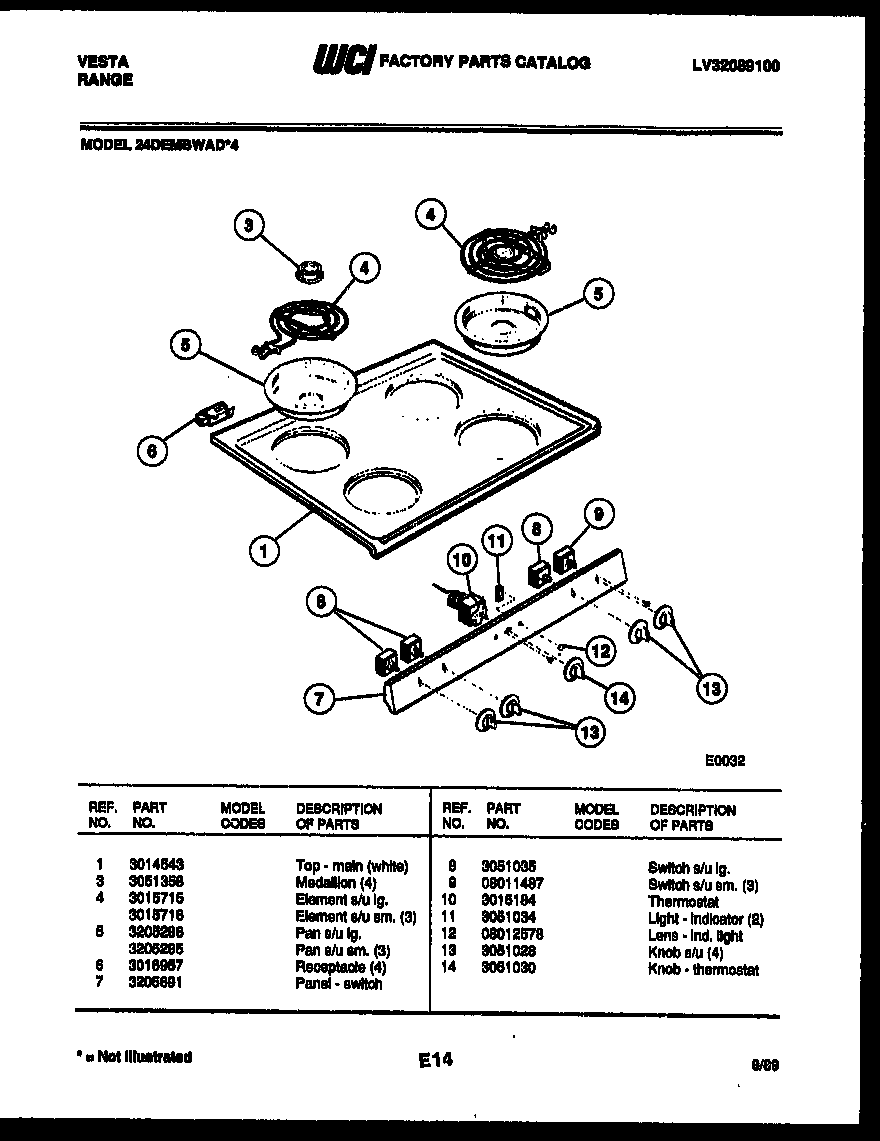

24DEMBWAD4 04 – COOKTOP PARTS

24DEMBWAD4 04 – COOKTOP PARTS

Written by

in

24DEMBWAD4 04 – COOKTOP PARTS

Products

PositionProduct
1MAIN TOP WHITE
3MEDALLION
4A318372210 Frigidaire Oven Range 6" 1250W Surface Element
4316442300 Frigidaire Oven 2100W Coil Element 8
5316048413 Frigidaire Oven Range Chrome 8" Drip Bow
5A316048414 Frigidaire Oven Range Chrome 6" Drip Bowl
65303935058 Frigidaire Oven Burner Receptacle Kit
7WCI 3205691
95303935086 Frigidaire Oven Top Burner Switch Kit
10WCI 3015184
11INDICATOR LIGHT
12LENS (3)
13KNOB-TOP ELEMENT (4)
14WCI 3051030
