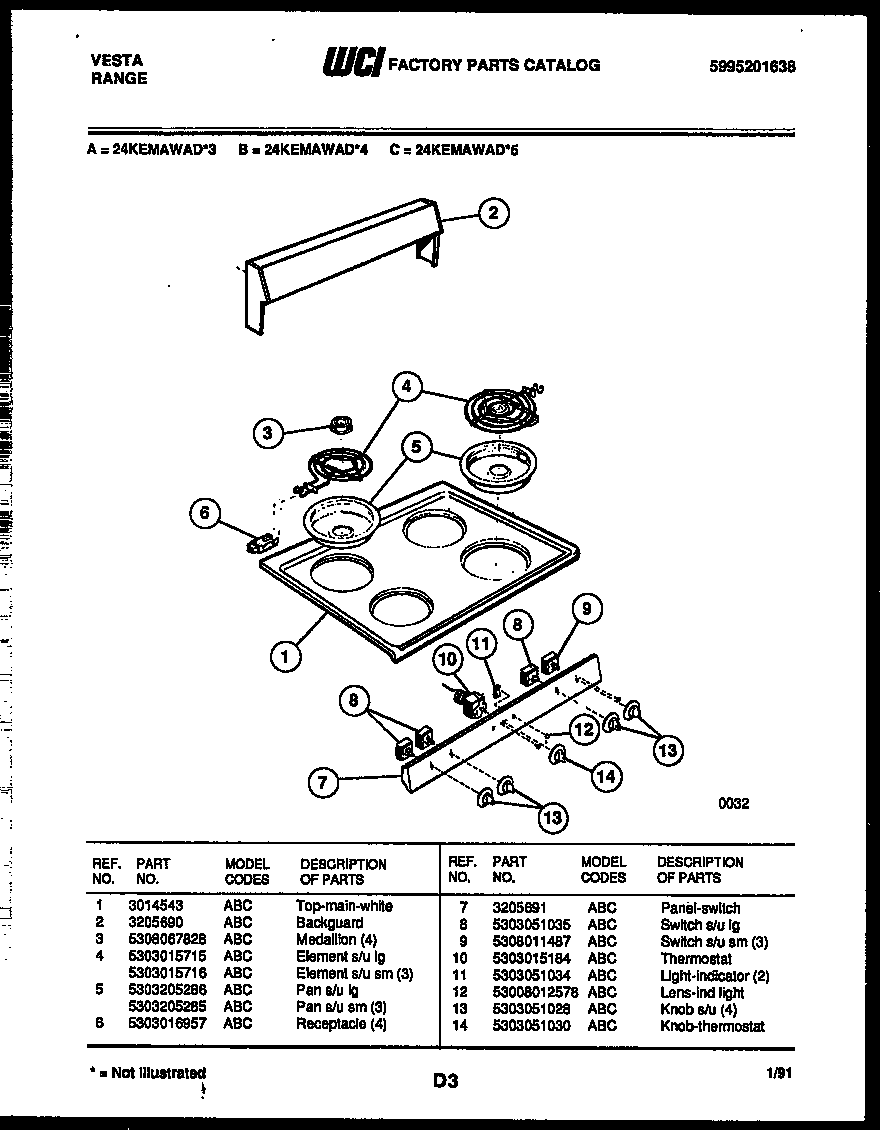

24KEMAWAD4 02 – BACKGUARD AND COOKTOP PARTS

24KEMAWAD4 02 – BACKGUARD AND COOKTOP PARTS

Written by

in

24KEMAWAD4 02 – BACKGUARD AND COOKTOP PARTS

Products

PositionProduct
1MAIN TOP WHITE
2BACKGUARD (WHITE)
3WCI 5308067828
4A318372210 Frigidaire Oven Range 6" 1250W Surface Element
4316442300 Frigidaire Oven 2100W Coil Element 8
5316048413 Frigidaire Oven Range Chrome 8" Drip Bow
5A316048414 Frigidaire Oven Range Chrome 6" Drip Bowl
65303935058 Frigidaire Oven Burner Receptacle Kit
7WCI 3205691
85303935086 Frigidaire Oven Top Burner Switch Kit
10WCI 5303015184
11INDICATOR LIGHT
12WCI 53008012578
13KNOB-SURFACE (4)
14THERMOSTAT KNOB
