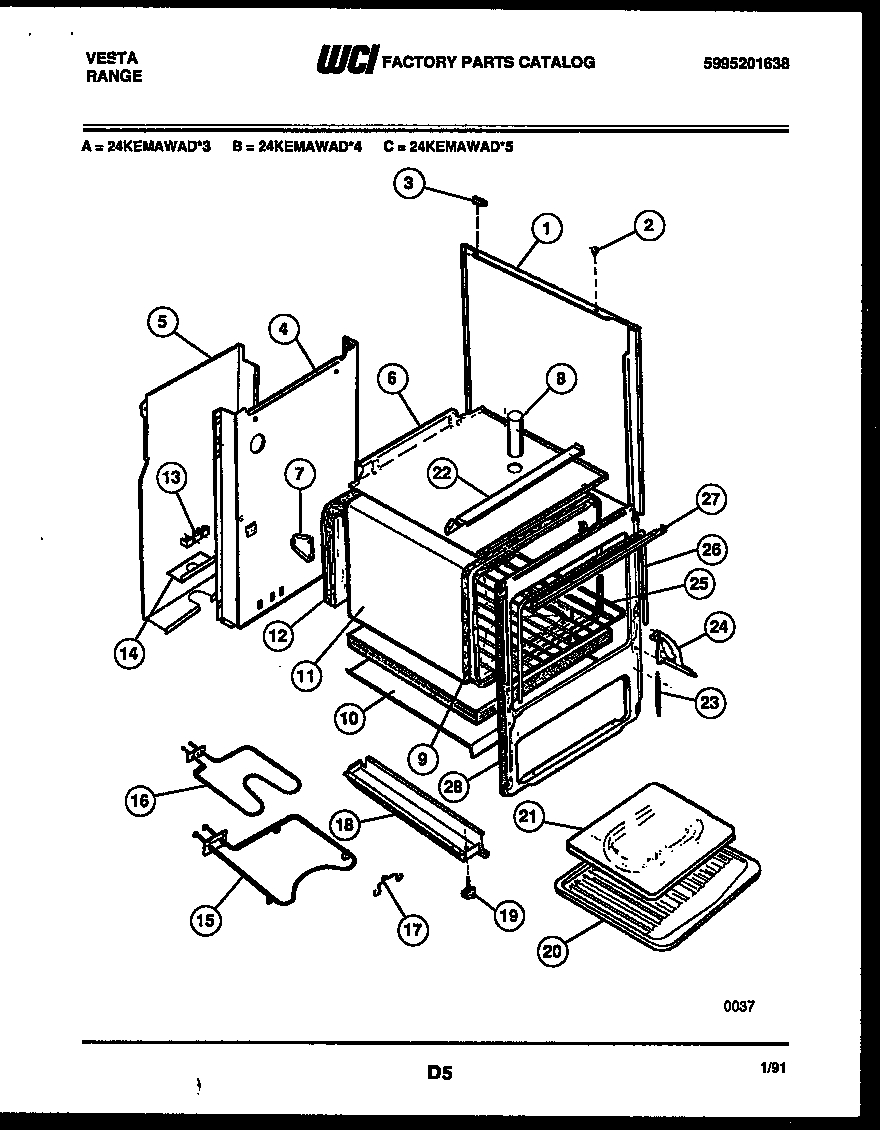

24KEMAWAD5 04 – BODY PARTS

Products

Position	Product
*28769	ANTI-TIP KIT
*28769	WCI 19100210113
1	WCI 303051061
2	GROMMET
3	GROMMET-MAINTOP
4	MAIN BACK
5	COVER-WIRE
6	BURNER BOX BOTTOM
7	SUPPORT-REAR OVN (2)
8	TUBE-VENT
9C	LINER-OVEN BTM
9A	LINER-LEFTSIDE
9	LINER-RIGHT SIDE
9B	WCI 3017600
9D	WCI 3017598
10	PAN-INSULATION
11	WCI 3016946
12	WCI 3016947
13	5304409888 Frigidaire Oven Terminal Block with Hardware
14	SUPPORT-CONDUIT
15	WCI 5303009292
16	WCI 5303009293
17	SUPPORT-BROIL ELMNT
18A	RAIL-BASE, LH
18B	Rail,base ,RH
20	WCI 5303016973
21	WCI 5303017712
22	SHIELD SWITCH
23	SPRING-OVEN DOOR
24A	318348801 Frigidaire Oven Left Side Door Hinge
24	HINGE ASSY-RH
25	WCI 5303016128
26	WCI 5308013916
27	SUPPORT-CONTROL PANEL
28	FRAME-FRONT
