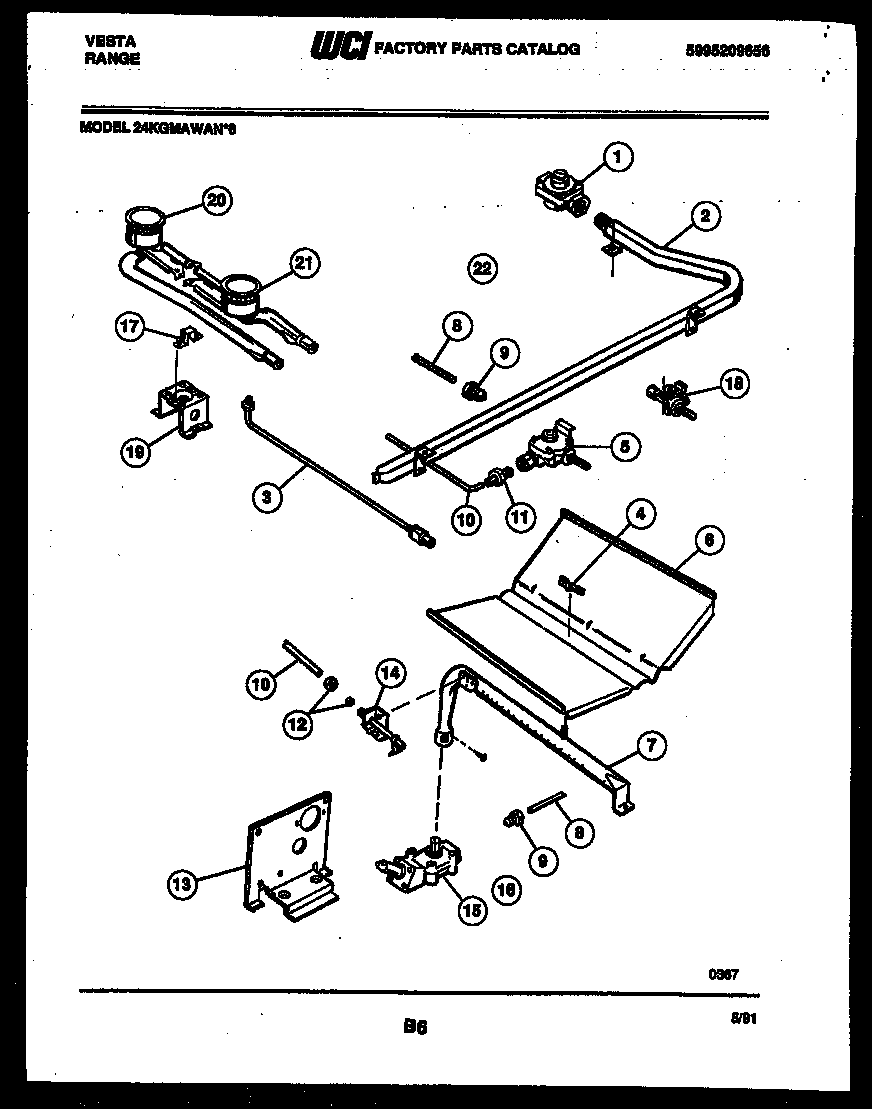

24KGMAWAN6 05 – BURNER, MANIFOLD AND GAS CONTROL

24KGMAWAN6 05 – BURNER, MANIFOLD AND GAS CONTROL

Written by

in

24KGMAWAN6 05 – BURNER, MANIFOLD AND GAS CONTROL

Products

PositionProduct
*84320WCI 08008009
15308007974 Frigidaire Pressure Regulator
2WCI 08014560
3TUBE-PILOT
4NUT – WING
5WCI 5308013927
6WCI 3203676
7WCI 5303276727
8TUBE OVEN SUPPLY
9WCI 08008363
10TUBE-OVEN PILOT
11WCI 3131074
12NUT & SLEEVE
13SUPPORT-OVEN SAFETY VALVE
14WCI 3205598
15WCI 5308013942
16WCI 3131067
17STRAP – PILOT SHIELD
18WCI 5303131057
19SUPPORT-TOP BURNER
20Burner,top ,rear
21BURNER-TOP FRONT
22WCI 5300009126
