24KPMAWAN4 06 – BROILER DRAWER PARTS – Aparts

24KPMAWAN4 06 – BROILER DRAWER PARTS

Products

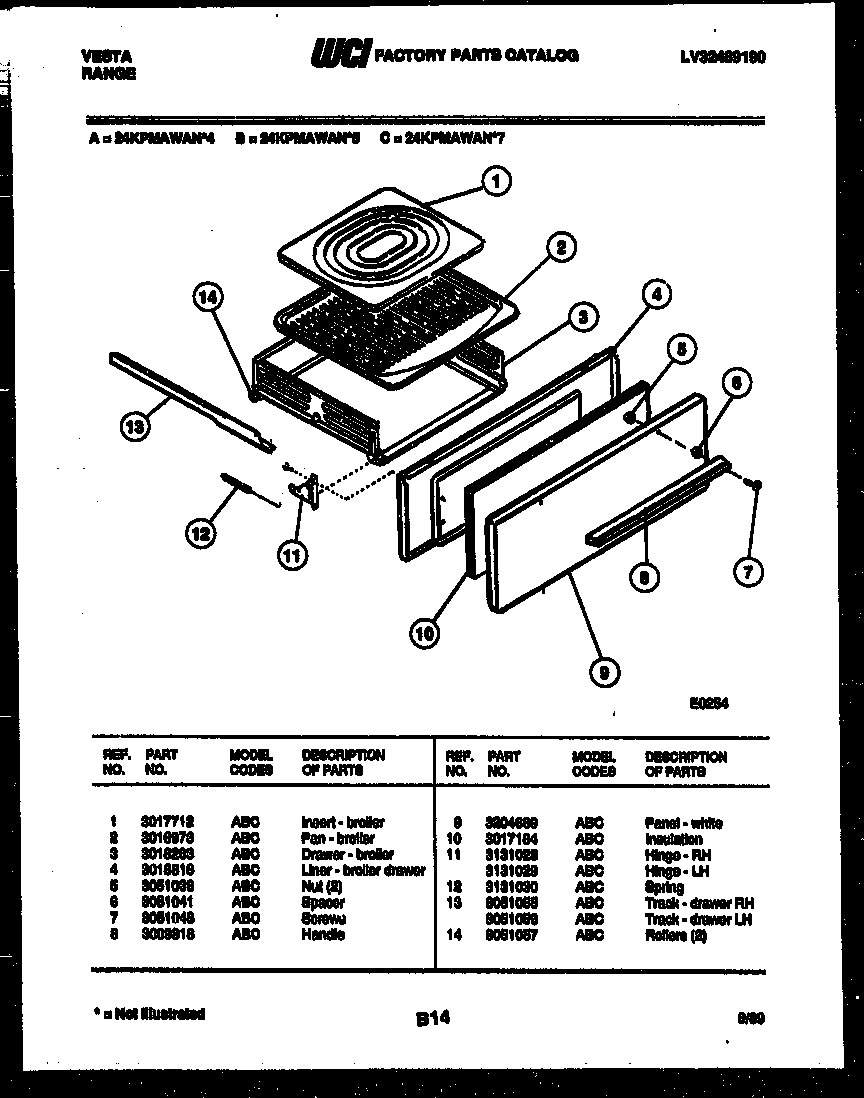

Position	Product
1	BROILER GRID
2	WCI 3016973
3	5304504568 Frigidaire Drawer Assembly
4	LINER - BROILER
5	5303013272 Frigidaire Oven Nut
6	SPACER HANDLE (2)
7	5303292012 Frigidaire Oven Screw
8	WCI 3009313
9	PANEL - OUTER (WHITE)
10	WCI 3017184
11	HINGE - RH
11A	HINGE - LH
12	SPRING (2)
13A	TRACK LEFT HAND
13	TRACK RIGHT HAND
14	WCI 3051057
