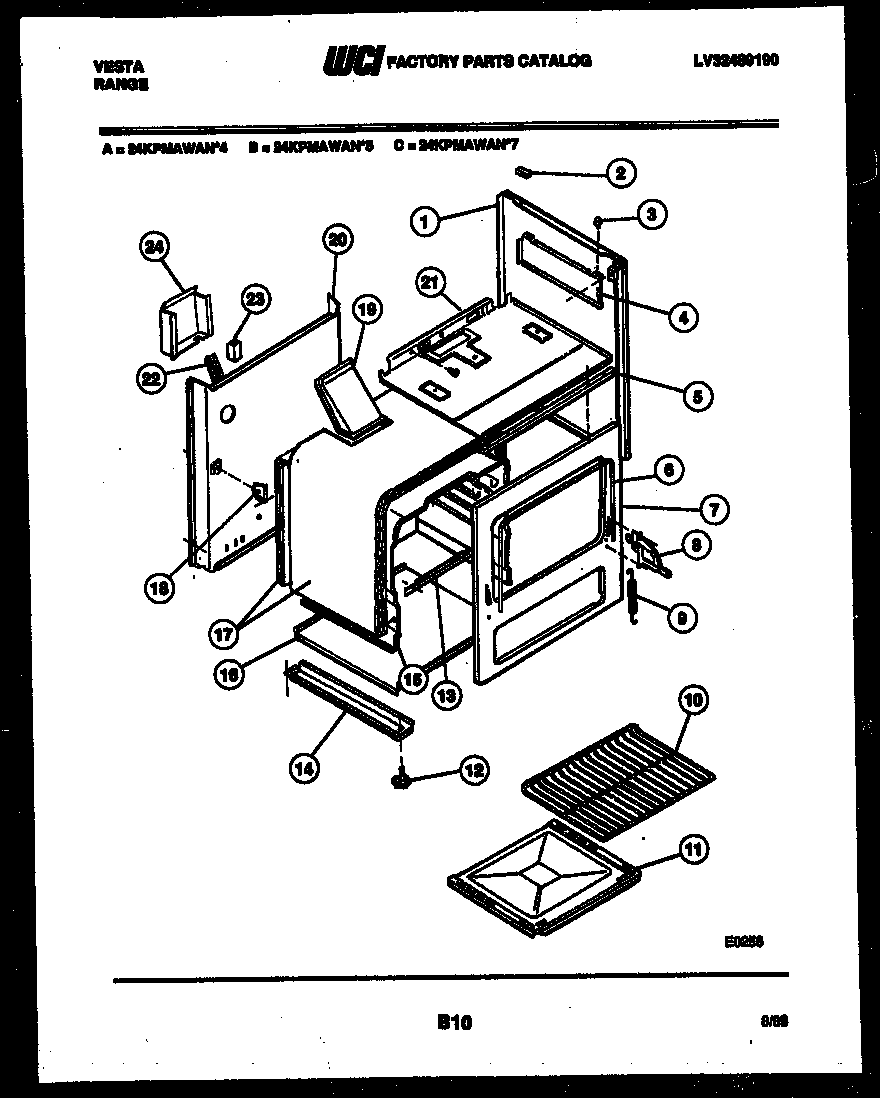

24KPMAWAN4-32 04 – BODY PARTS

Products

Position	Product
2	GROMMET-MAINTOP
3	GROMMET
4	WCI 3131053
4A	WCI 3131054
5	SUPPORT-CONTROL PANEL
6	SEAL - DOOR
7	FRAME-FRONT
8A	318348801 Frigidaire Oven Left Side Door Hinge
8	WCI 3204670
9	SPRING DOOR (2)
10	WCI 3016128
11	OVEN BOTTOM
12	WCI 3051080
13	SUPPORT-OVEN BOTTOM
14	BASE RAIL
15A	OVEN LINER-SIDE LH
15B	OVEN LINER TOP
15C	OVEN LINER BACK
15	OVEN LINER-SIDE RH
16	MAIN BOTTOM
17	WCI 3202740
17A	INSULATION-BACK
18	SUPPORT-REAR OVN (2)
19	WCI 3017173
20	COVER - SPARK MODULE
21B	CLIP,BODYSIDE
21A	ANTI-TIP KIT
21	BURNER BOX
22	CHANNEL - MAIN WIRE
23	5303912606 Frigidaire Oven Range Spark Module 2+0 4 Large Terminals
24	WCI 3131047
