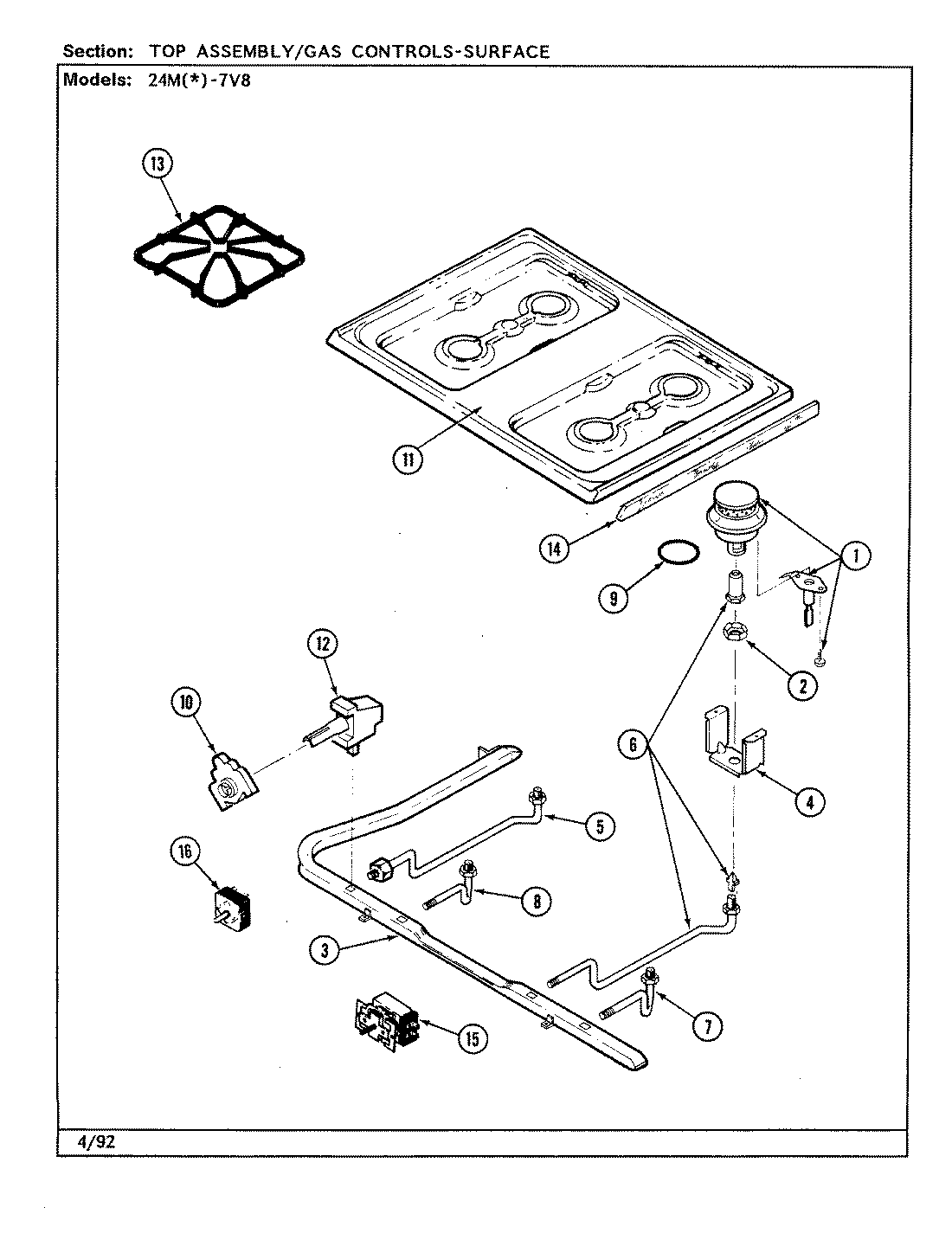

24MA-7CKXWV8 09 – TOP ASSEMBLY/GAS CONTROLS-SURFACE

Products

Position	Product
1	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
1	MAY 7118P010-60
1	MAY 3412D015-09
1	WP3412D024-26 Whirlpool Oven Surface Burner Head
1	MAY 5111A360-60
1	MAY 5111A361-60
1	MAY 7432P072-60
1	MAY 3412D016-09
2	MAY 7103P119-60
3	MAY 7513P104-60
4	MAY 3807F378-45
6	MAY 7507P105-60
8	MAY 7507P110-60
9	MAY 7201P050-60
10	WP7403P287-60 Whirlpool Igniter Switch
11	MAY 2001F080-09
11	MAY 2001F080-84
12	MAY 7502P220-60
12	MAY 7101P296-60
13	MAY 2003W023-00
14	WP7101P072-60 Whirlpool Screw
14	W10080180 Whirlpool Nut
14	MAY 7746P025-60
14	MAY 7746P026-60
15	MAY 7404P064-60
16	MAY 7403P092-60
