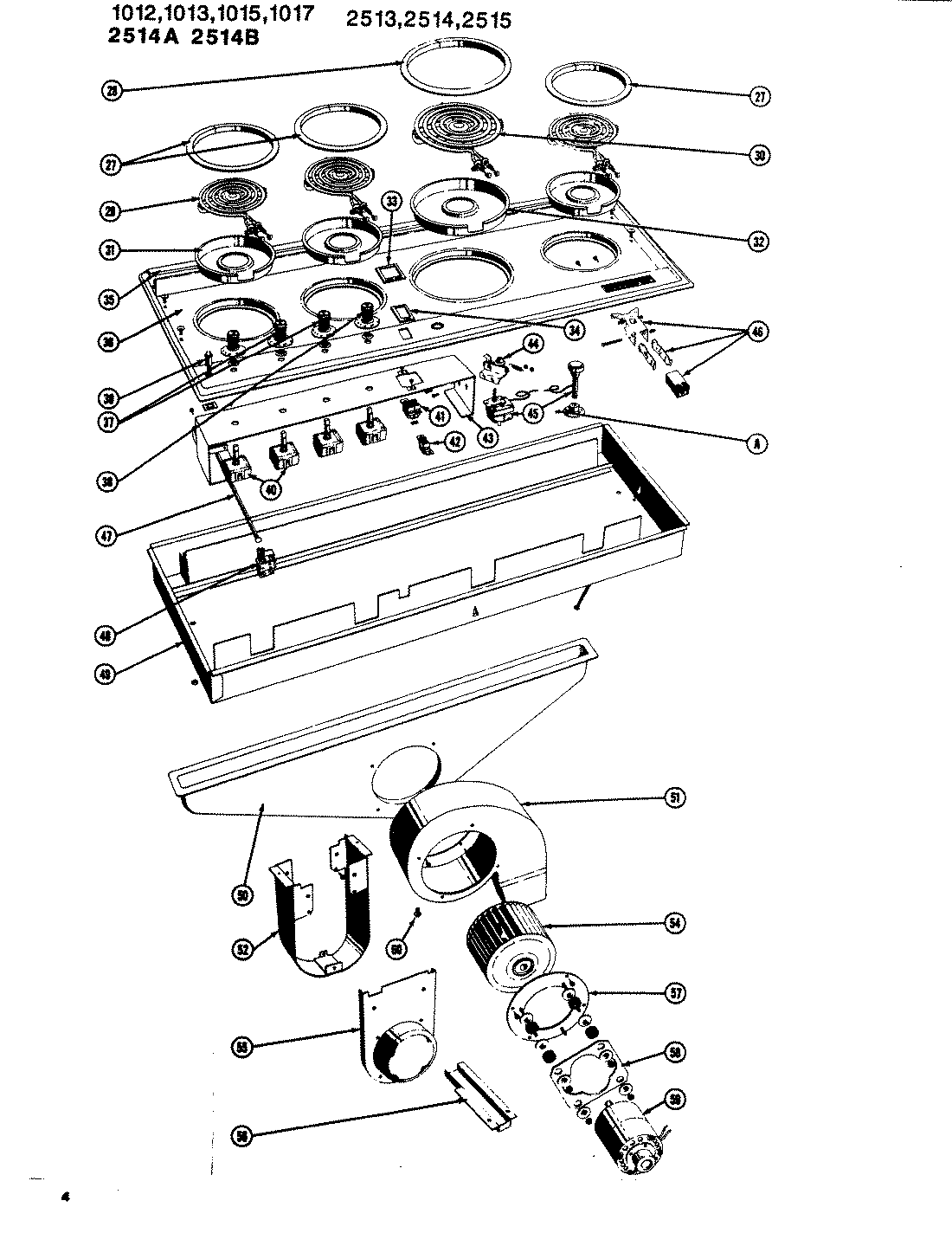

2513 03 – RANGE ASSEMBLY

Products

Position	Product
27	RING (6“)
27	WPY707454 Whirlpool Range Chrome 6" Adaptor Ring
28	WPY707453 Whirlpool Range 8" Chrome Adaptor Ring
28	RING (9“)
29	ELEMENT, CONV.
29	ELEMENT, CONV. (6“)
30	ELEMENT, CONV. (8“)
31	WPL 707386
32	WPL 707388
33	SWITCH ESCUTCHEON (DOUBLE)
34	SWITCH, ESCUTCHEON (SINGLE)
35	STRIP, TRIM (REAR)
36	TOP (40“)
36	PAN, STAINLESS
37	KNOB, INFINITE SWITCH ASSY.
39	LIGHT
40	WPL Y707036
41	SWITCH
42	SWITCH, LIGHT(WHT)
42	SWITCH, FAN
43	SWITCH & CABLE MOUNTING ASSY
44	LOCK ASSY.
45	SWITCH, SENSOR (6“)
46	MEDALION
46	BLOCK, TERMINAL
46	BLOCK, TERMINAL
47	ROD, CUT OFF
48	SWITCH, CUTOFF
49	BOX ASSEMBLY
50	PLENUM
51	HOUSING, BLOWER
52	SHIELD, MOTOR
54	WPY707985 Whirlpool Wheel Assembly
55	COVER, MOTOR
56	BOX, WIRE
57	ADAPTER RING
58	3415F003-51 Whirlpool Motor Band
59	707704K Whirlpool Range Blower Fan Motor Kit
60	SCREW, DRAIN
60	ISOLATOR MOTOR
