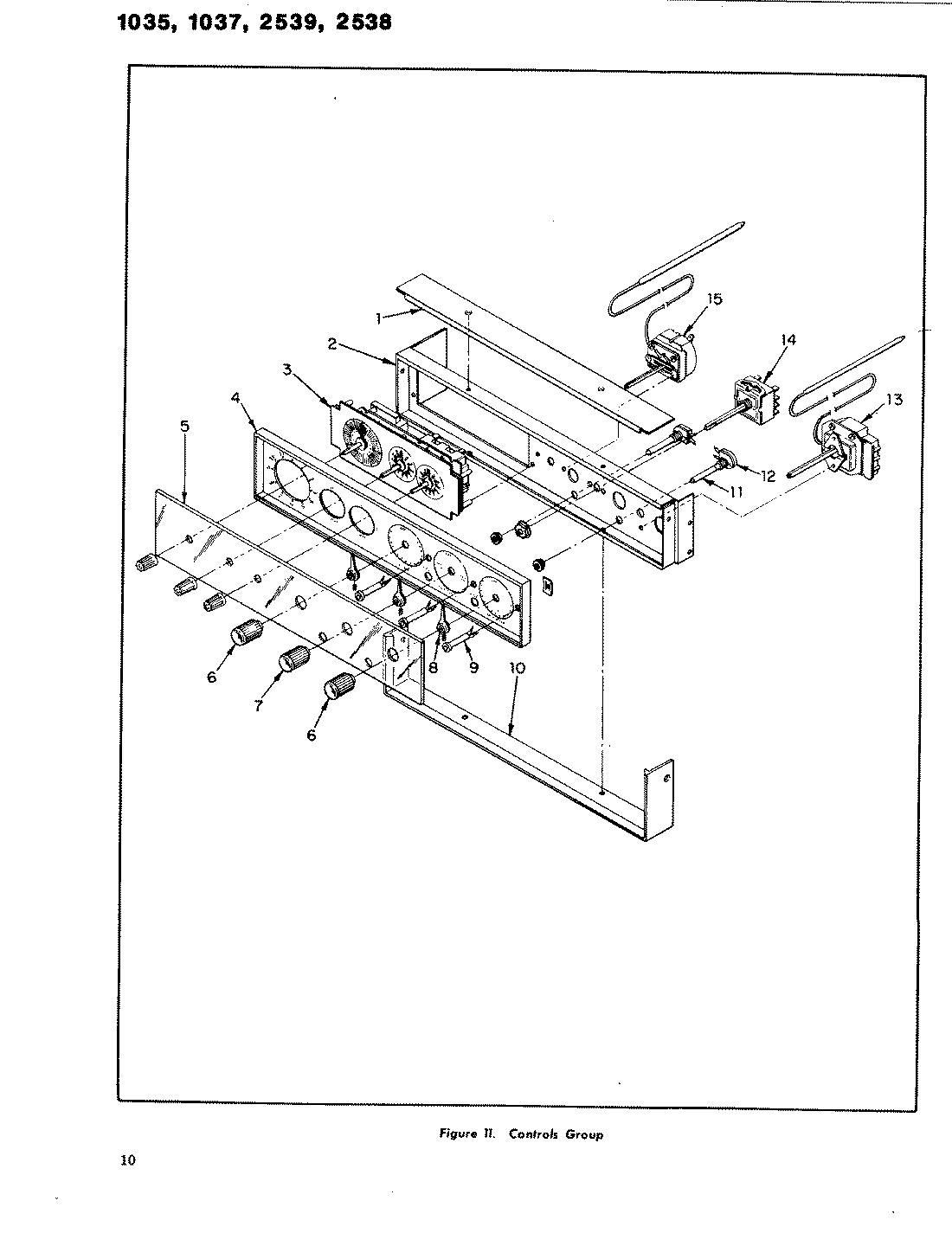

2538 03 – CONTROLS GROUP

Written by

Products

Position	Product
1	COVER, CONTROL BOX
2	MOUNT, SWITCH ASSY.
3	CLOCK
4	PANEL, CONTROL
5	GLASS, CONTROL PANEL
6	KNOB, OVEN CONTROL
7	KNOB, SELECTOR SWITCH
8	SELECTOR & THERMOSTAT POINTER
9	INDICATOR LIGHT W/MOUNTING NUT
10	FRAME, CONTROL PANEL
11	PUSH SWITCH EXTENSION
13	THERMOSTAT
14	SELECTOR SWITCH W/MOUNTING NUT
15	THERMOSTAT
