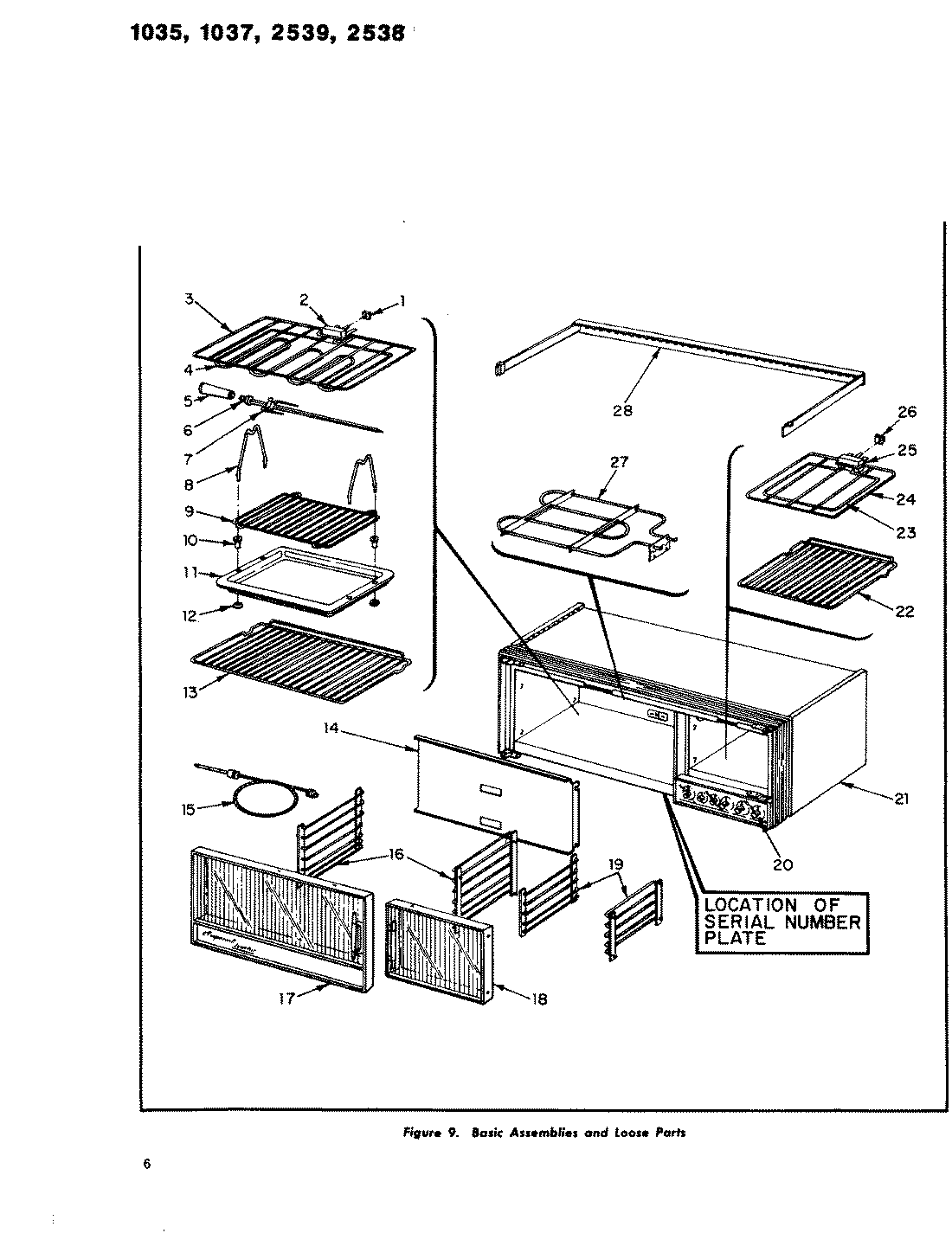

2539 01 – BASIC ASSEMBLIES & LOOSE PARTS

Products

PositionProduct
3RACK, BAKE/BROIL
4SPIT ASSY.
5HANDLE
6SPIT
7HOLDER, MEAT
8ROTISSERIE SUPPORT
9BROILER PAN RACK
10ROTISSERIE SUPPORT SOCKET
11BROILER PAN
12CLIP
13OVEN RACK, MAIN OVEN
14PLATE, BAFFLE
15PROBE ASSY.
16RACK SUPPORT, MAIN OVEN
19PASTRY OVEN RACK SUPPORT
21NOT REQUIRED PART OR SEE NOTE
22OVEN RACK
23ELEM. SM
24RACK, PASTRY ELEMENT
25BLOCK, CERAMIC
26CLIP, FASTENER
27ELEMENT, BROIL
28BRACKET, HANGER ASSY.
