2570B00 03 – POWER LOCK

Products

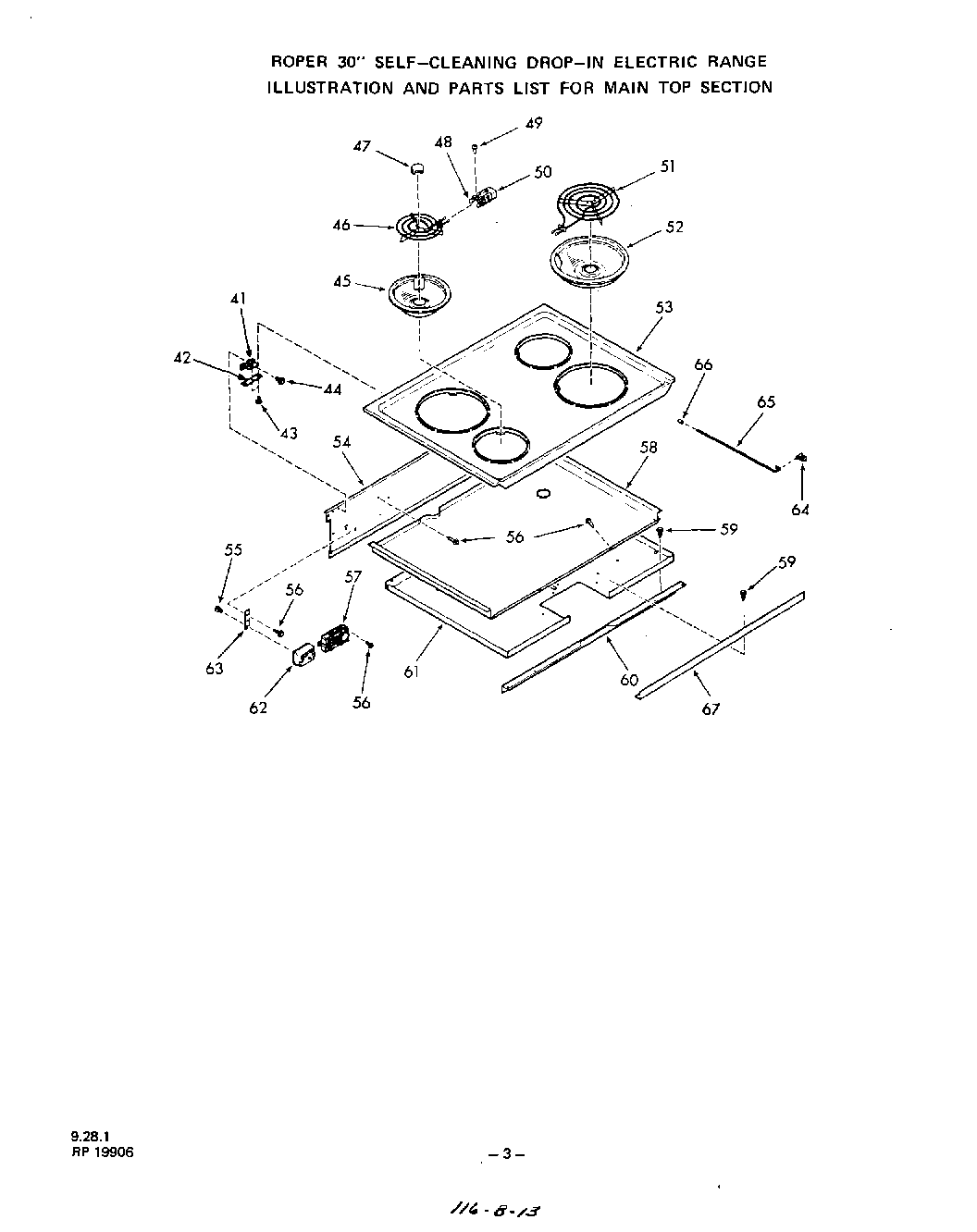

Position	Product
41	Hinge (Lt or Rt)
42	Mounting Bracket – Hinge (Lt or Rt)
43	Screw 6-32×3/16“
44	Screw 10-32×5/16“
45	6“ Burner Bowl (1 Req) All 2101 Models
46	6“ Surface Element (Lt. Frt. & Rt. Rr.)
46	2570B00
46	6“ Surface Unit (Lt. Front & Rt. Rear)
47	Medallion (4 Required)
47	2570B00
47	Medallion (2 Req) All 2101 Models
48	Bracket-Terminal Block-2570B00
49	Screw 7-32×5/16“(2 Req) All 2101 Models
50	Terminal Block w/Wire Lead (4 Required)
50	2570B00
50	Terminal Block w/Wire Lead (4 Required)
51	8“ Surface Element (Rt. Frt. & Lt. Rr.)
51	8“ Surface Unit (Rt. Front & Lt. Rear)
51	W10909679 Whirlpool Dishwasher Slinger
52	8“ Burner Bowl (1 Req) All 2101 Models
53	Main Top
54	Upper Wire Cover
55	WPL 78565
56	WP112432 Whirlpool Nut Assembly
57	Oven Relay
58	Top-Burner Box
59	Screw 10-32×17/32“
60	Extension-Burner Box
61	Burner Box Bottom
62	Fixed Input Control
63	Bracket-Fixed Input Control
64	Clip
65	Support-Main Top
66	Bumper Tip
67	Wire Shield
