2570B10 03 – POWER LOCK

Written by

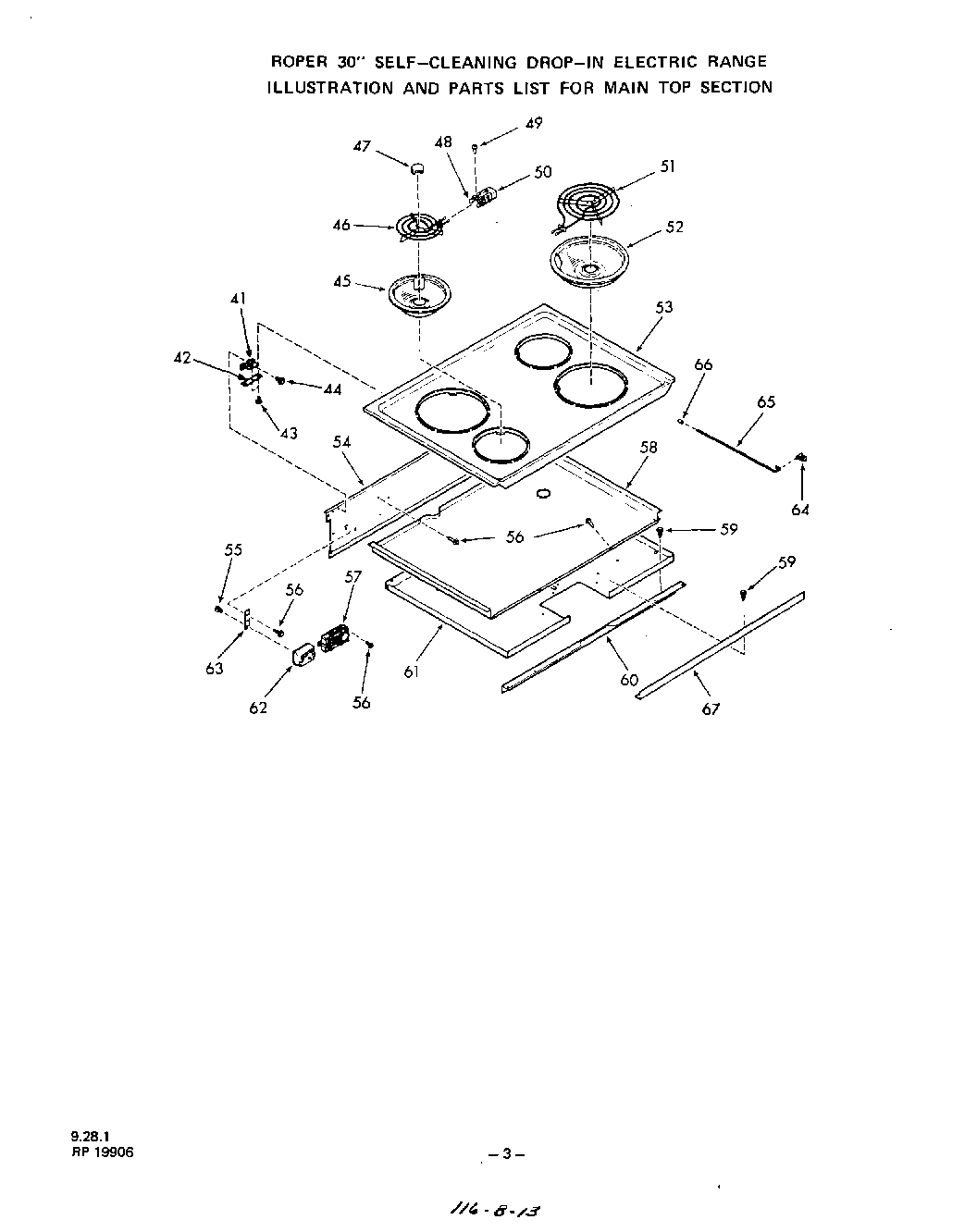

Products

Position	Product
41	Hinge (Lt or Rt)
42	Mounting Bracket – Hinge (Lt or Rt)
43	Screw 6-32×3/16“
44	Screw 10-32×5/16“
45	6“ Burner Bowl (1 Req) All 2101 Models
46	6“ Surface Element (Lt. Frt. & Rt. Rr.)
46	2570B00
46	6“ Surface Unit (Lt. Front & Rt. Rear)
47	Medallion (4 Required)
47	2570B00
47	Medallion (2 Req) All 2101 Models
48	Bracket-Terminal Block-2570B00
49	Screw 7-32×5/16“(2 Req) All 2101 Models
50	Terminal Block w/Wire Lead (4 Required)
50	Terminal Block w/Wire Lead (4 Required)
50	2570B00
51	8“ Surface Element (Rt. Frt. & Lt. Rr.)
51	W10909679 Whirlpool Dishwasher Slinger
51	8“ Surface Unit (Rt. Front & Lt. Rear)
52	8“ Burner Bowl (1 Req) All 2101 Models
53	Main Top
54	Upper Wire Cover
55	WPL 78565
56	WP112432 Whirlpool Nut Assembly
57	Oven Relay
58	Top-Burner Box
59	Screw 10-32×17/32“
60	Extension-Burner Box
61	Burner Box Bottom
62	Fixed Input Control
63	Bracket-Fixed Input Control
64	Clip
65	Support-Main Top
66	Bumper Tip
67	Wire Shield
