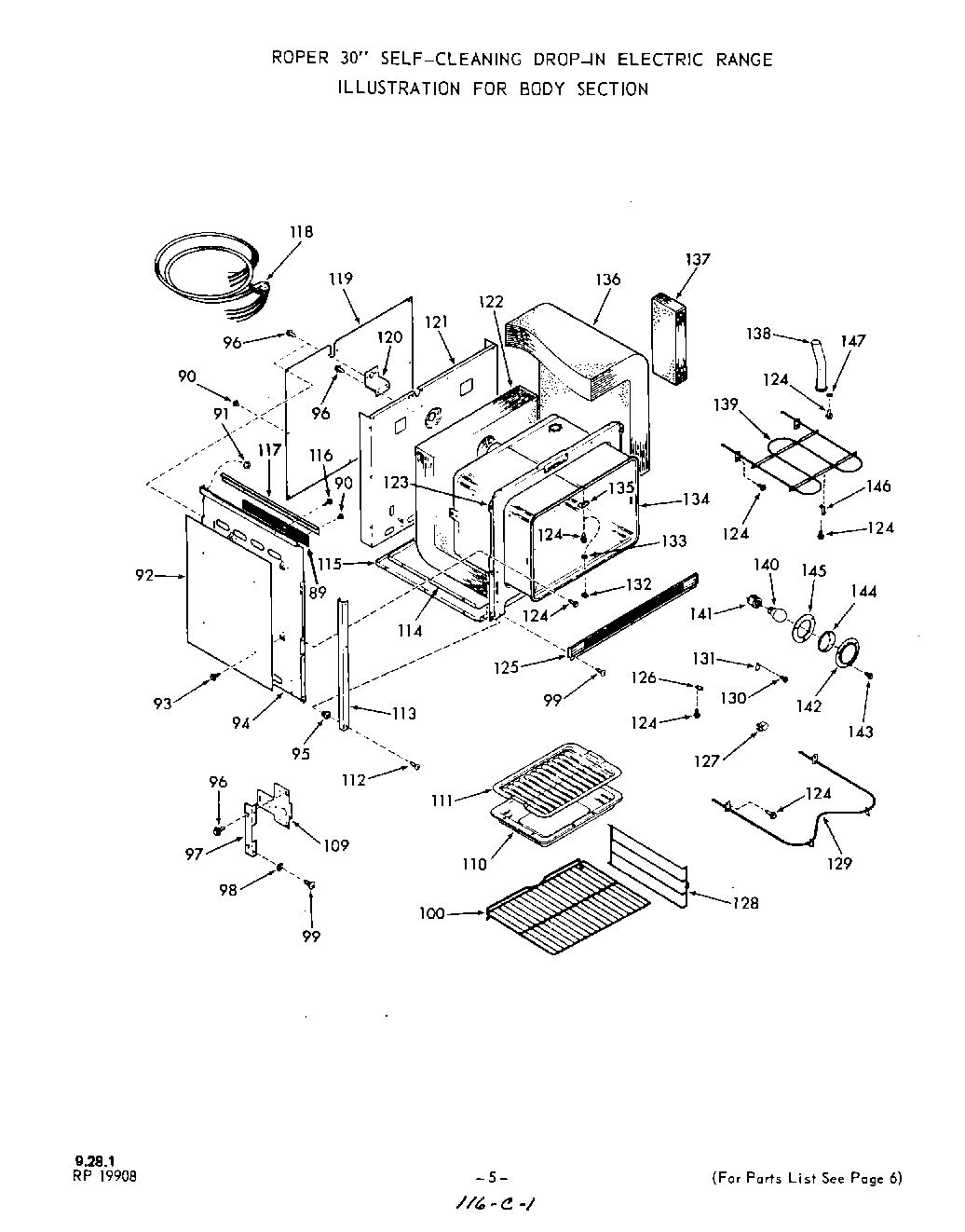

2570B10 05 – OVEN DOOR , LIT/OPTIONAL

Products

Position	Product
89	Screen-Burn. Box (Lt. or Rt.)
90	Clip
91	Pal Nut
92	Baffle-Lt. or Rt.
93	WPL 295850
94	Right
94	Left
94	Insulation Retainer
95	BURNER RECEPTACLE KIT
96	WP112432 Whirlpool Nut Assembly
97	Hinge Angle-Lt. or Rt.
98	WPL 21067
99	Screw 8ABx5/8“
100	Oven Rack (2 Req)
109	Hinge Box – Lt. or Rt.
110	WPL 282278
111	WPL 282273
112	Screw 8ABx3/4“
113	Side Trim
113	Right
113	Side Trim (Left)
114	Insulation Retainer-Oven Bottom
115	Main Bottom
116	Screw No.8 x 1“
117	Side Trim – Burner Box Bottom (Lt or Rt)
118	Harness-Conduit Asm.
119	Wire Cover
120	Bracket-Conduit Mounting
121	Main Back
122	Insulation-Oven Back & Bottom
123	Front Frame
124	Screw 10 – 32 x 17/32“
125	Bottom Trim-Door
126	Cover Plate-Thermostat Bulb
127	Thermostat Bulb-Retainer (2 Req)
128	Oven Rack Guide-Rt. or Lt.
129	Bake Element
130	Shoulder Screw 10-32×1/2“
131	Cover Plate, Rotisserie
132	Speed Nut 10-32
133	Washer
134	Oven Body
135	Cover
136	WPL 282636
137	WPL 303097
138	Vent Tube
139	Broiler Element
140	Oven Lamp Bulb
141	Holder-Oven Light Bulb
142	Retainer-Oven Light Lens
143	Screw 10 – 32 x 1/2“
144	Lens-Oven Light
145	Gasket-Lens
146	Support-Broiler Elem
147	Washer
