25SC 01 – DOOR ASSY
Written by
in

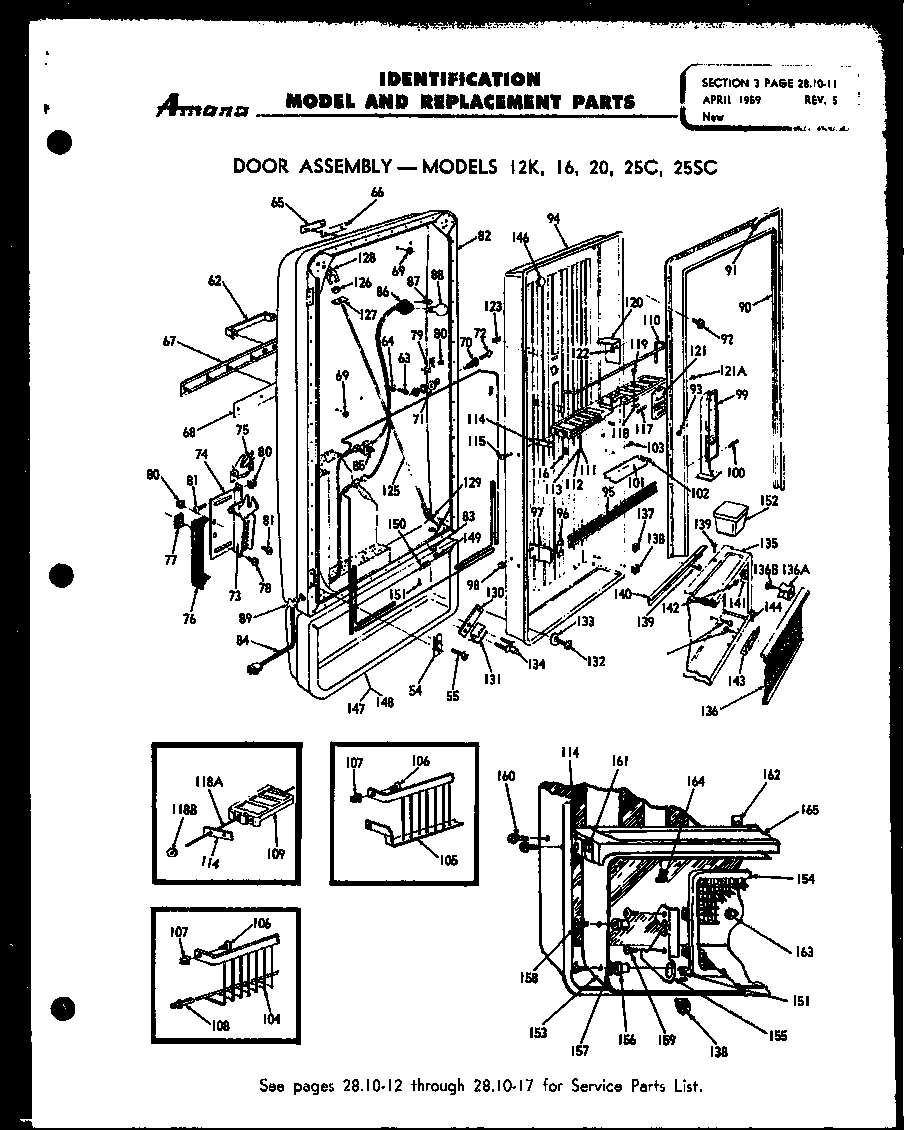

25SC 01 – DOOR ASSY
Products
Position
Product
NI
MAY A0395101
ORDER GRAPHICS PANEL FROM THE SOURCE WHERE THE DRYER WAS PURCHASED. INCLUDE THECOMPLETE MODEL AND SERIAL NUMBERS WITH ORDER.
NI
MAY A0328001
NI
MAY A0327901
NI
MAY A0327801
NI
MAY A0312101
54
MAY D0743601
55
MAY A0282401
62
MAY B0489501
63
MAY A3005701
64
MAY A0310201
65
MAY B0489901
66
MAY A0386001
69
MAY A0369601
70
MAY B0484901
71
MAY A0320201
72
MAY A0382001
73
MAY B0467903
74
MAY B0511801
75
MAY B0484301
76
MAY B0467801
77
MAY A0318901
78
MAY A0379201
80
MAY A0364601
80
SEE NOTE GROUND WIRE, GREEN
81
MAY A0356401
83
MAY A0297401
89
MAY A0284101
92
MAY A0291801
126
MAY A0256801
127
MAY A0292601
128
MAY A0292901
129
MAY A0292902
130
MAY A0284401
132
MAY A0283201
133
MAY A0278501
146
MAY A0292802
149
MAY A0283001
150
MAY A0280401
151
MAY A0238701
←
