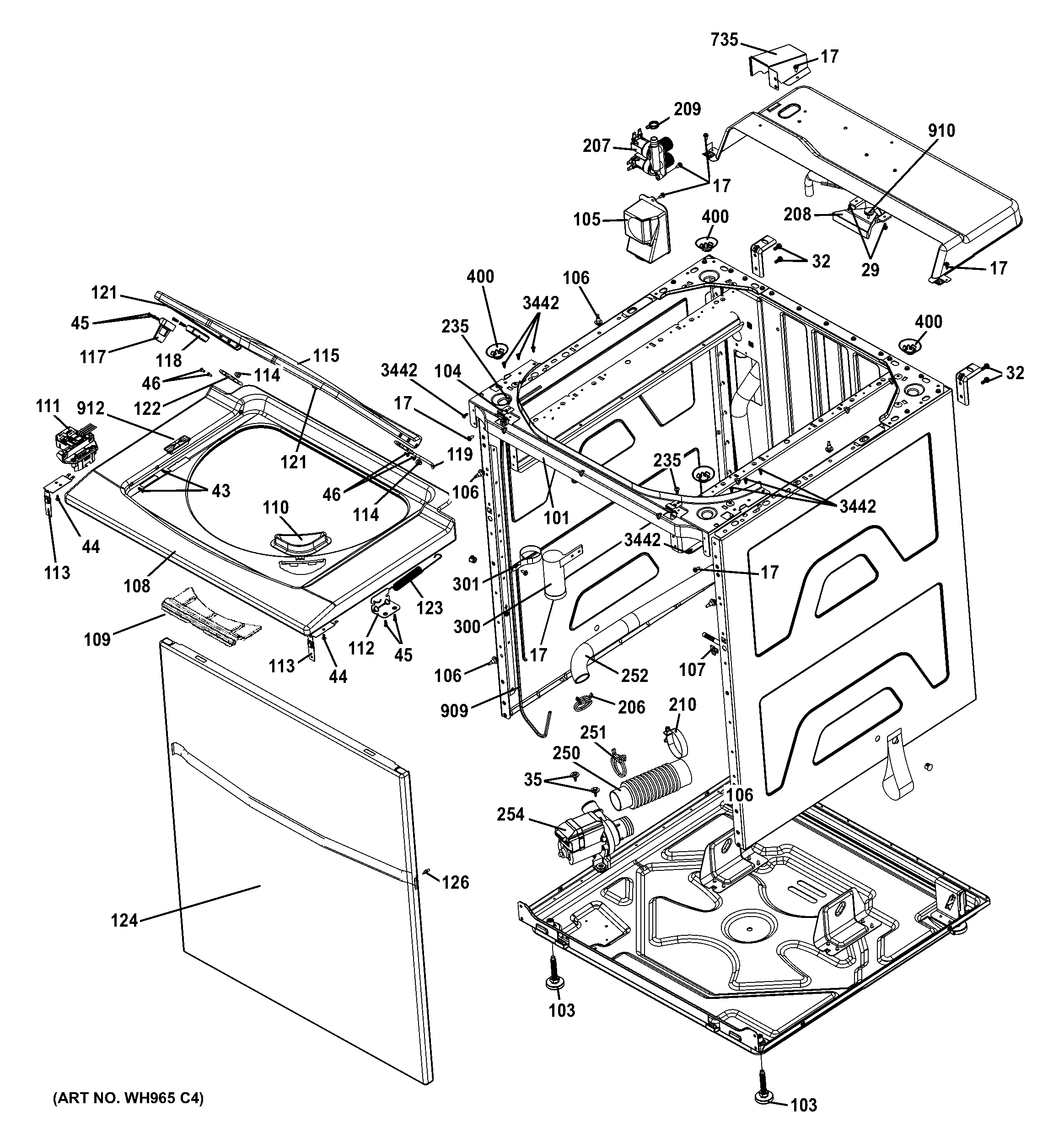

2671532210 CABINET (5)

Products

Position	Product
17	WH2X1217 GE Screw Assembly
29	WB01K10042 GE Oven Screw 3/8" AB IHW 8-18
32	WH01X10593 GE Screw 12-14 B
35	WH01X10600 GE Screw 8-18 HXW 3/8 S ZN
44	WH01X10624 GE Screw 6-20 B TRT 3/8 S
45	WH01X10631 GE Screw 8-16 B FLP .525 S ZN
46	WH2X1211 GE Screw
101	WH16X10143 GE Upper Front Brace
103	WH01X10594 GE Leg Leveling
104	WH01X10595 GE Locking Clip
105	WH44X10280 GE Hose Cover
106	WH01X10596 GE Appliance Pin Alignment
107	WH01X10597 GE Ground Clip
108	WH44X10282 GE Top Panel
109	WH16X10157 GE Bracket Assembly
110	WH01X10621 GE Bleach Funnel
111	WH44X10288 GE Washer Lid Lock
112	WH16X10153 GE Spring Bracket
113	WH01X10623 GE Cover Clip
114	WH01X10625 GE Hinge Bushing
115	WH13X30373 GE Washer Lid
117	WH43X10057 GE Washer Actuator
118	WH01X10626 GE Washer Magnet
119	WH44X10289 GE Hinge Washer Cover Right Hand
121	WH01X10627 GE Bumper Lid
122	WH44X10290 GE Left Hand Hinge Washer Cover
123	WH01X10628 GE Spring Cover Assembly
124	WH42X10886 GE Front Panel Assembly
126	WH02X10347 GE Washer Grounding Stud
206	WH01X10599 GE Clamp
207	WH13X10050 GE Water Valve
208	WH13X10051 GE Shower Head Funnel
209	WH01X10649 GE Clamp
210	WH01X10603 GE Tub Outlet Clamp
235	WE2X263D GE Screw Package 12 C92
250	WH41X10280 GE Washer Tub to Pump Hose
251	WH01X10598 GE Clamp
252	WH41X26574 GE Washer Dryer Drain Hose Assembly
254	PUMP DRAIN
300	WH12X10513 GE Run Capacitor
301	WH01X10601 GE Capacitor Clip
400	WH01X10602 GE Seat Ball Joint
735	WE1M1000 GE Main Harness Cover
909	WH19X10085 GE Main Harness
910	THERMISTOR ASM
3442	WE2M281 GE Screw 8-18 AB
