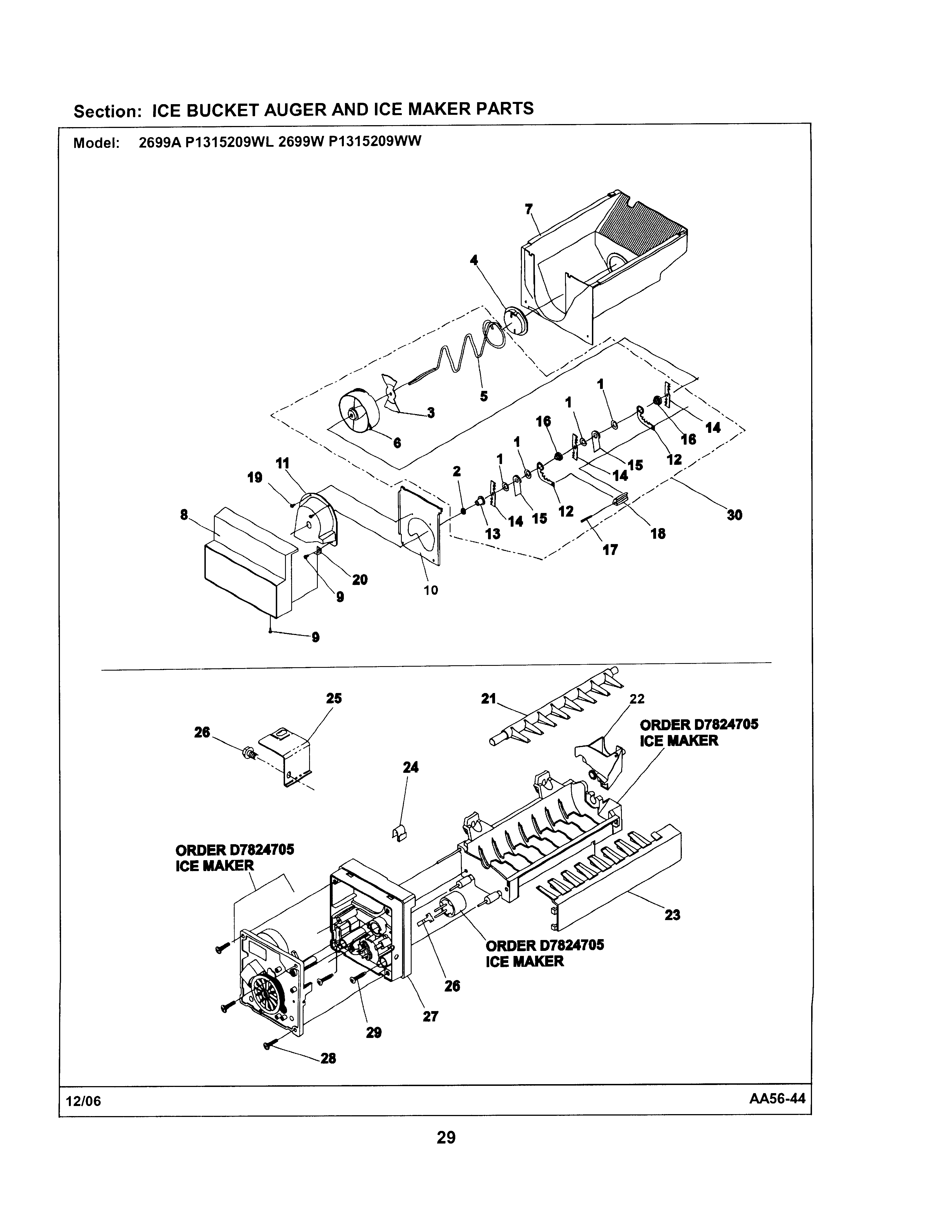

2699W 13 – ICE BUCKET AUGER/ ICE MAKER

Products

Position	Product
NI	MAY 10834701
1	MAY 10275101
2	WPM0223101 Whirlpool Refrigerator Nut
3	MAY 10113801
4	MAY D7749401
5	MAY 10114401
6	MAY 10114703
7	MAY 10111905
8	MAY 10870904
9	SCREW, SM
10	MAY 10115001
11	MAY 10114004
12	MAY 10114601
13	MAY 10113901
14	MAY 10114501
15	MAY 10275201
16	WASHER STEPPED
17	MAY M1200108
18	MAY 10114101
19	MAY M0231704
20	MAY 10894901
21	WP627843 Whirlpool Refrigerator Ejector Arm
22	WP628356 Whirlpool Refrigerator Fill Cup
23	MAY R0183120
24	MAY 10319801
25	BRACKET, MODULE & HEATER
26	MAY M0211017
27	MAY R0183121
28	MAY R0186041
29	MAY 95105-1
30	MAY R0156803
