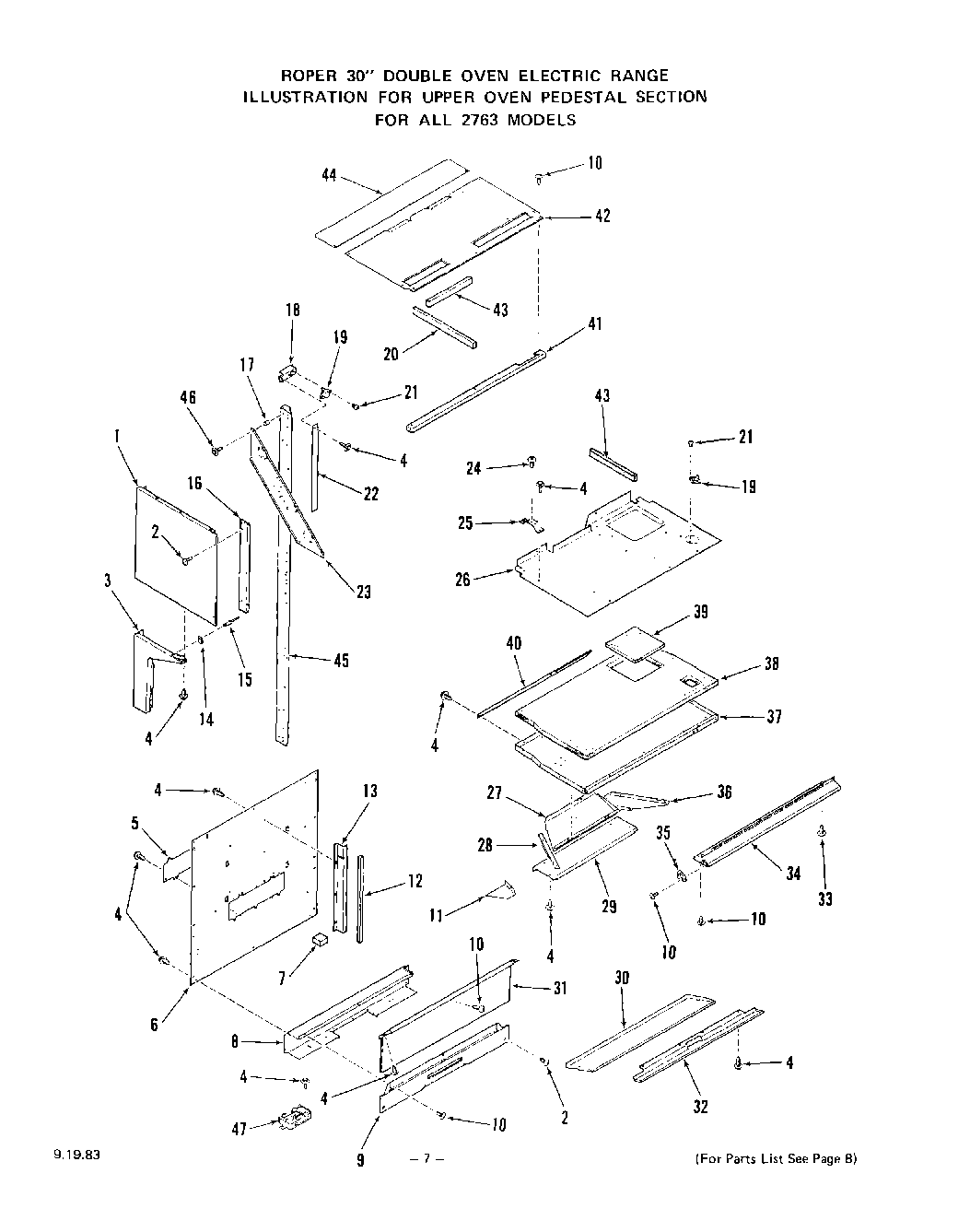

| 1 | Upper Oven Body Side (Golden Wheat - Left) |
| 1 | Upper Oven Body Side |
| 1 | Upper Oven Body Side (Almond - Left) |
| 1 | Upper Oven Body Side (Almond - Right) |
| 1 | Upper Oven Body Side (Golden Wheat - Right) |
| 1 | Upper Oven Body Side (White - Right) |
| 1 | Upper Oven Body Side (White - Left) |
| 2 | Screw 6-32x3/8`` |
| 3 | WPL 325292 |
| 3 | WPL 325287 |
| 3 | WPL 325286 |
| 3 | WPL 325283 |
| 3 | WPL 325293 |
| 3 | Pedestal-Upper Oven |
| 3 | WPL 325289 |
| 4 | WP112432 Whirlpool Nut Assembly |
| 5 | Cover Plate |
| 6 | WPL 325773 |
| 7 | WPL 326696 |
| 8 | Wire Cover |
| 9 | Lower Backsplash |
| 10 | Screw 6-32 x 3/8`` |
| 11 | WPL 322935 |
| 11 | WPL 322933 |
| 11 | End-Vent |
| 12 | WPL 326697 |
| 12 | WPL 306543 |
| 12 | Foam Strip |
| 13 | WPL 325726 |
| 13 | Airway-Side |
| 13 | WPL 325728 |
| 14 | Retainer |
| 15 | Pop Rivet |
| 16 | Side Trim |
| 16 | Side Trim (Right) |
| 16 | Side Trim (Left) |
| 17 | Spacer (4 Req) |
| 18 | Box - Auxiliary Thermostat |
| 19 | WPL 325401 |
| 20 | WPL 325029 |
| 21 | WPL 230710 |
| 22 | WPL 326417 |
| 23 | brace-cabinet side (lt. or rt.) |
| 24 | Screw 10-32x1/2`` |
| 25 | Support - Microwave (4 Req) |
| 26 | Base - Microwave |
| 27 | WPL 322937 |
| 28 | WPL 322949 |
| 29 | WPL 320261 |
| 30 | WPL 321664 |
| 30 | WPL 321663 |
| 30 | WPL 321660 |
| 30 | Cover-Vent |
| 31 | WPL 325346 |
| 31 | Backsplash |
| 31 | WPL 325350 |
| 31 | WPL 325349 |
| 32 | Almond |
| 32 | trim-filter |
| 32 | Golden Wheat |
| 32 | White |
| 33 | WPL 316365 |
| 34 | WPL 325471 |
| 35 | End Cap |
| 35 | WPL 325337 |
| 35 | WPL 325338 |
| 36 | WPL 320257 |
| 37 | WPL 325297 |
| 38 | WPL 325299 |
| 39 | WPL 326031 |
| 40 | WPL 325301 |
| 41 | WPL 325328 |
| 42 | WPL 325325 |
| 42 | WPL 325326 |
| 42 | Oven T |
| 42 | WPL 325322 |
| 43 | WPL 324504 |
| 44 | WPL ARI11475A4 |
| 44 | WPL 321672 |
| 44 | WPL 321671 |
| 44 | WPL 320476 |
| 45 | WPL ARI11476A1 |
| 45 | WPL 325307 |
| 45 | WPL 325802 |
| 46 | Screw 10-32x1`` |
| 47 | Oven Relay |
