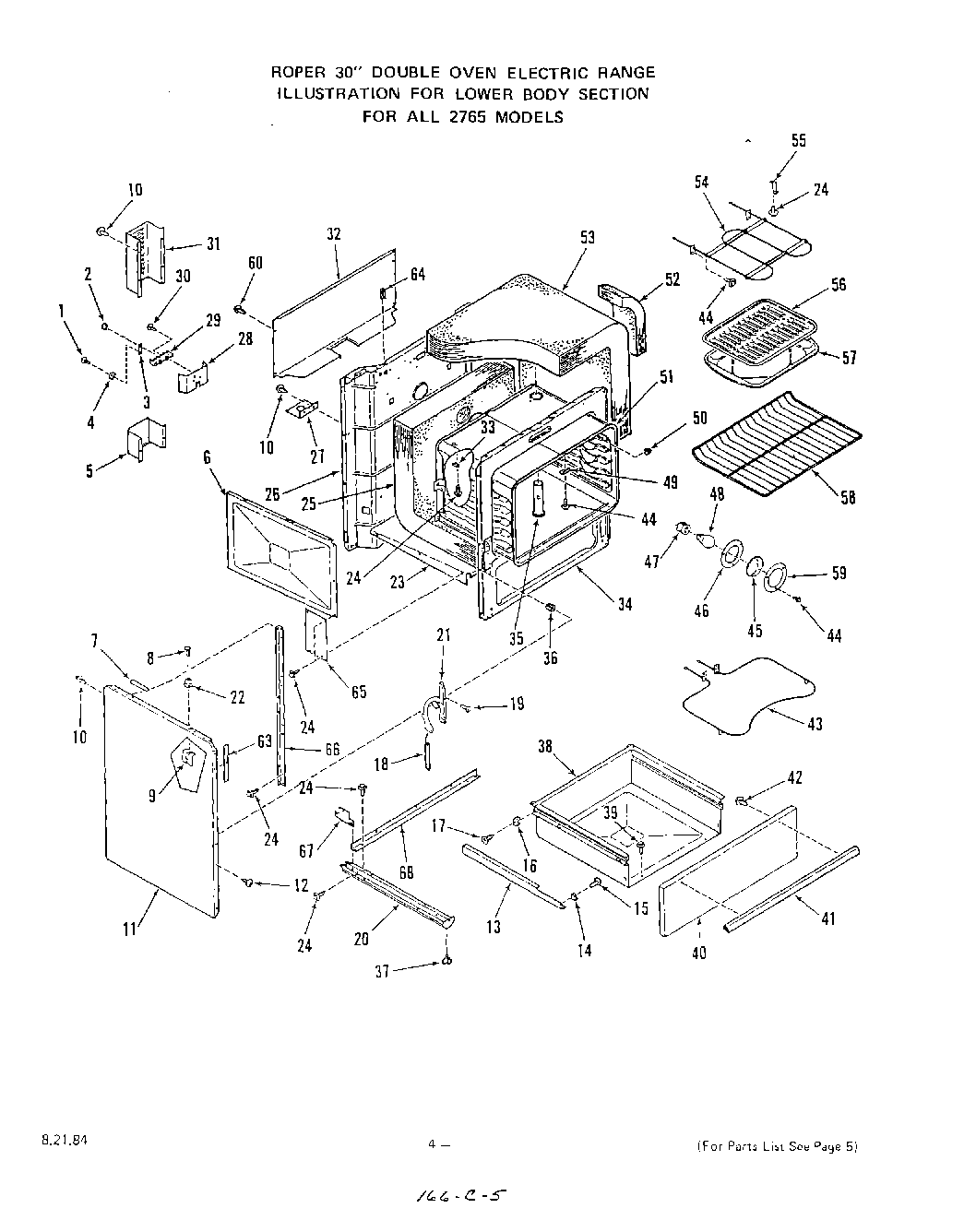

2765^0A 05 – LOWER BODY

Products

Position	Product
1	Screw 10-32×7/16“
2	Hex Nut 10-32
3	Ground Strap
4	Washer
5	Wire Shield-Lower
6	Retainer-Insulation (Lt. or Rt.)
7	Spacer-Main Top (2 Req)
8	Screw 6-32×7/8“
9	Bracket-Body Side (Lt. or Rt.)
11	Toast
11	White
11	Almond
11	Platinum
11	Body Side (Lt. or Rt.) (Black)
12	Screw 8ABx5/8“
13	Support-Storage Drawer (Lt. or Rt.)
14	Front Slide Block-(Lt. or Rt.)
15	Screw 10-32×17/32“
16	Rear Slide Block – Lt. or Rt.
17	Screw 8 – 32 x 3/8“
18	Spring-Oven Door (Lt. or Rt.)
19	Screw 10-32 x 5/8“
20	Base w/Leg Levelers (Lt. or Rt.)
21	Left
21	Right
22	Strike-Main Top (Lt. or Rt.)
23	Retainer-Bottom Insulation
25	Insulation-Oven Back & Bottom
26	Main Back
27	Range Service Mounting Plate
28	Insulation-Service Cord
29	Junction Block
30	Screw 10-32×1“
31	Shield-Upper Wire
32	Wire Shield
33	Cover Plate-Thermostat Bulb
34	Front Frame
35	Vent Tube
36	BURNER RECEPTACLE KIT
37	Leg Leveler (4 Req)
38	Storage Drawer
39	WPL 316365
40	WPL 326077
40	WPL 328347
40	WPL 326078
40	WPL 326073
40	WPL 328355
41	Handle-Broiler Door
42	WPL 295850
43	WPL 325883
44	Screw 10-16×7/16“
45	Lens-Oven Light
46	Gasket-Lens
47	Holder-Oven Light Bulb
48	Oven Lamp Bulb
49	Cover
50	Thermostat Bulb-Retainer (2 Req)
51	WPL 325766
52	Insulation (Rt. or Lt.)
53	Insulation-Oven Top & Sides (1 Piece)
54	WPL 326938
55	Support-Broiler Element
56	WPL 326297
57	2055B0A Model
58	Oven Rack (2 Req)
59	Retainer-Oven Light Lens
60	WP112432 Whirlpool Nut Assembly
63	WPL 327378
64	WPL 327649
65	Sh
66	s
67	Left
67	Right
68	Strap-Main Back & Base
