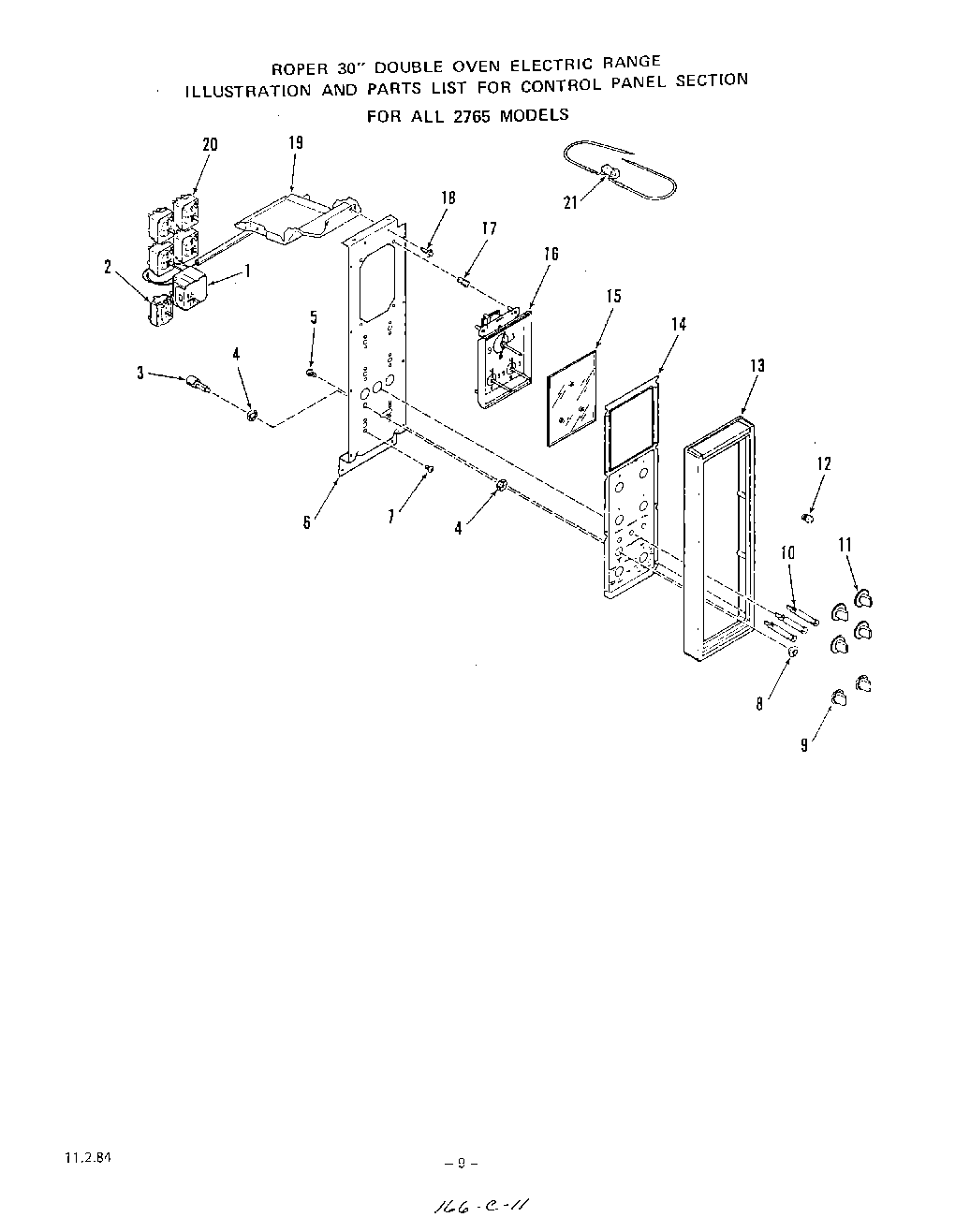

2765^0A 08 – CONTROL PANEL

Products

Position	Product
1	Thermostat
2	Selector Switch
3	Push Switch - Oven Light
4	Lock Nut
5	Screw 4-24x1/4``
6	Mounting Panel-Controls
7	WPL 78565
8	Trim Nut
9	Knob-Selector Switch & Thermostat
10	Indicator Light (2 Req)
11	Knob-Infinite Control (4 Req)
12	Knob-Clock (Start & Stop Time)
13	Control Panel Trim (Included w/Key 14)
14	Control Curtain (Inc`s. 13)
15	Lens-Clock
16	Clock w/1 Hr. Timer
17	Tubular Clip (4 Req.)
18	Screw 6-32x1/4``
19	Barrier Intrusion
20	WPL 320944
21	Wire Lead w/Resistor
