2843W0A 03 – LOWER OVEN
Written by
in

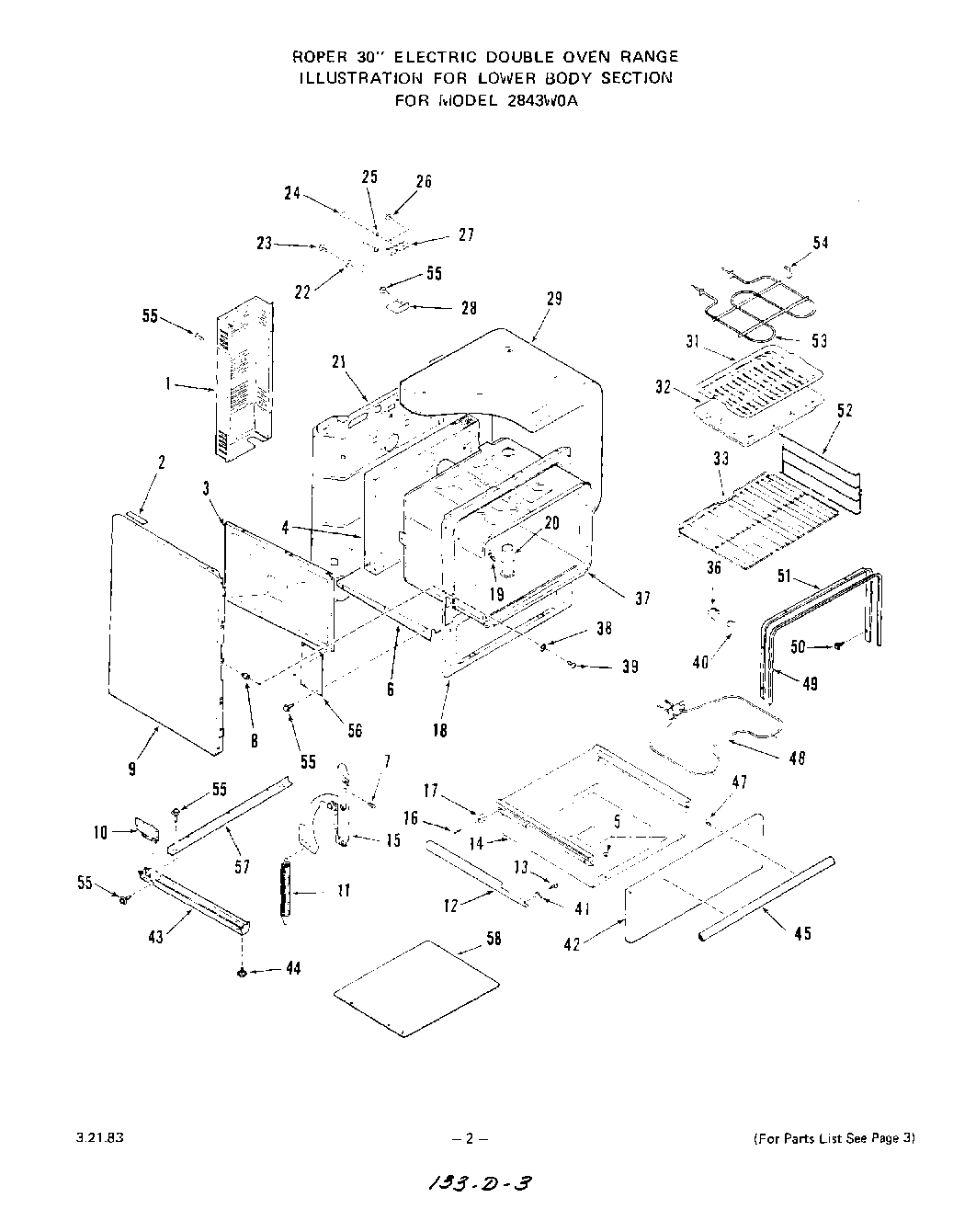

2843W0A 03 – LOWER OVEN
Products
Position
Product
1
Wire Shield
2
Spacer-Main Top
3
Retainer-Insulation (Lt. or Rt.)
4
Insulation – Oven Back
5
WPL 316365
6
Retainer-Bottom Insulation
7
Screw 10-32 x 5/8“
8
Grommet – Screw (8 Req.)
9
Body Side
9
Body Side-Lt. or Rt.) (White)
9
Body Side-Lt. or Rt.) (Almond)
10
Bracket-Support & Base (Lt. or Rt.)
11
Spring-Oven Door (Lt. or Rt.)
12
Support-Storage Drawer (Lt. or Rt.)
13
Screw 10-32×17/32“
14
Storage Drawer
15
Right
15
Hinge-Oven Door
15
Left
16
Screw 8 – 32 x 3/8“
17
Rear Slide Block – Lt. or Rt.
18
Front Frame
19
Thermostat Bulb Clip (2 Required)
20
Vent Tube
21
Main Back
22
Washer
23
Screw 10-32×7/16“
24
Hex Nut 10-32
25
Ground Strap
26
Screw 10-32×1“
27
Junction Block
28
Range Service Mounting Plate
29
Insulation-Oven Top & Sides (1 Piece)
31
Broiler Pan Grid
32
Rotisserie Pan
33
WPL 305408
36
Holder-Oven Light Bulb
37
Oven Body
38
Washer
39
WP303896 Whirlpool High Limit Thermostat
40
Oven Lamp Bulb
41
Front Slide Block-(Lt. or Rt.)
42
Front Panel-Storage Drawer
42
White
42
WP912618 Whirlpool Dishwasher Screw
43
WPL 323929
44
Leg Leveler (4 Required)
45
Handle-Broiler Door
47
WPL 295850
48
CH2858 Chromalox Bake Element 240V/2700W
49
WPL 296102
50
Screw 10 – 32 x 17/32“
51
WPL 296103
52
WPL 305409
53
Broiler Element
54
Support-Broiler Element
55
WP112432 Whirlpool Nut Assembly
56
Sh
57
WPL 323931
58
WPL 319163
←
