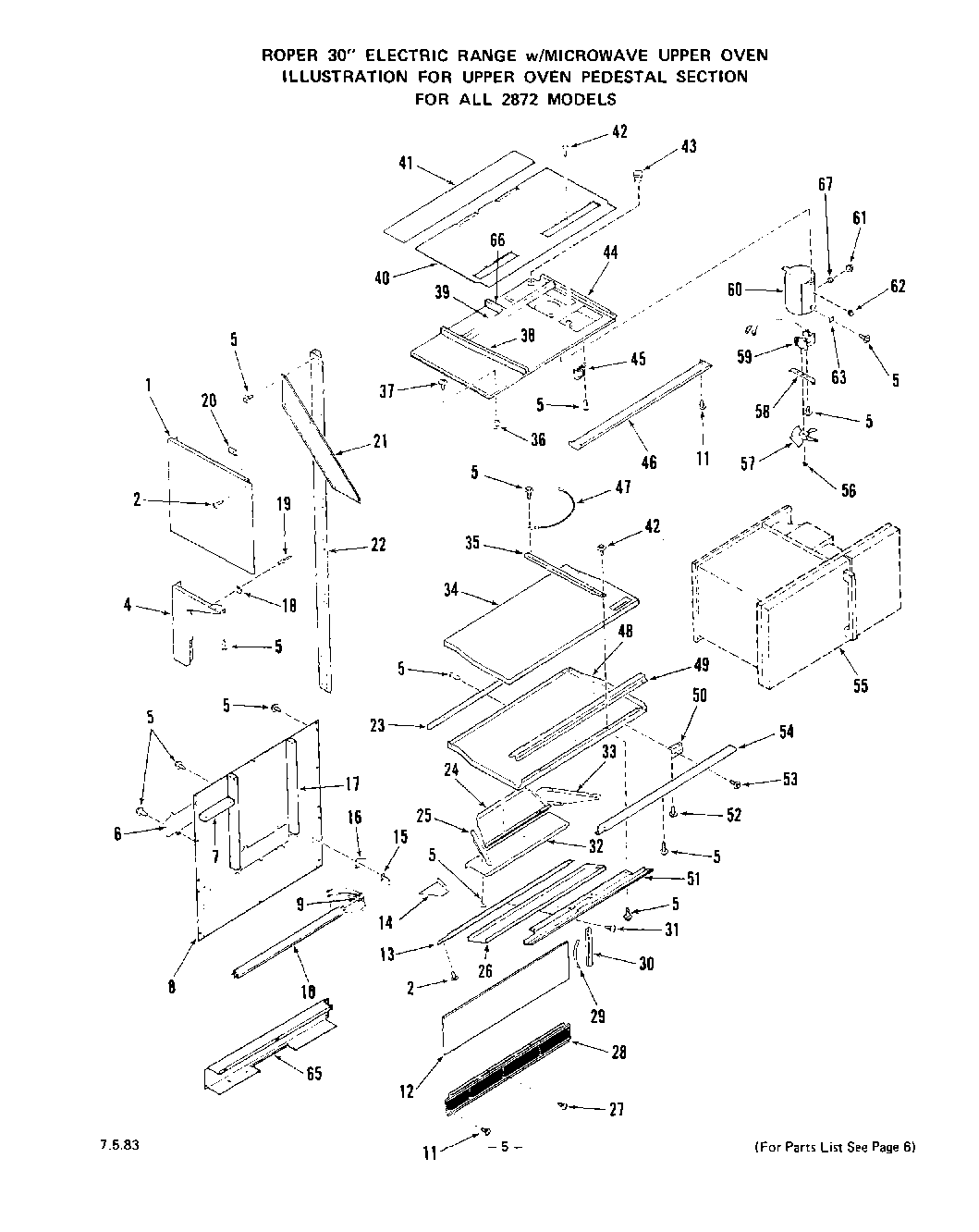

2872^0A 05 – UPPER OVEN PEDESTAL

Products

Position	Product
1	Upper Oven Body Side (Golden Wheat-Right)
1	Upper Oven Body Side (Avocado-Right)
1	Upper Oven Body Side (Coffee-Right)
1	Upper Oven Body Side (White-Right)
1	Upper Oven Body Side (Almond-Left)
1	Upper Oven Body Side (Golden Wheat-Left)
1	Upper Oven Body Side (Avocado-Left)
1	Upper Oven Body Side (Coffee-Left)
1	Upper Oven Body Side (White-Left)
1	Upper Oven Body Side (Almond-Right)
2	Screw 6-32×3/8“
4	WPL 325283
4	WPL 325286
4	WPL 325287
4	WPL 325289
4	Pedestal-Upper Oven (Coffee-Left)
4	WPL 325292
4	Pedestal-Upper Oven (Coffee-Right)
4	WPL 325293
4	Pedestal-Upper Oven (Avocado-Right)
4	Pedestal-Upper Oven (Avocado-Left)
5	WP112432 Whirlpool Nut Assembly
6	Cover Plate
7	Foam Strip
8	Wire Cover
9	Holder-Fluorescent Lamp (Left)
9	Holder-Fluorescent Lamp (Right)
10	Fluorescent Lamp (20 W – 24“)
11	Screw 6-32 x 3/8“
12	Fluorescent Lamp Glass
13	Almond
13	Upper Retainer-Lamp Glass (Coffee)
13	Golden Wheat
13	Upper Retainer-Lamp G
13	White
14	WPL 322933
14	WPL 322935
15	Bracket-Fluorescent Lamp (Right)
16	Shield-Wire
17	WPL 320696
18	Retainer
19	Pop Rivet
20	WPL 320196
21	WPL 320125
22	WPL 324058
23	WPL 320117
24	WPL 322937
25	WPL 322949
26	WPL 321661
26	WPL 321660
26	WPL 321662
26	WPL 321663
26	WPL 321664
27	Screw 6-32 x 1/2“
28	Lower Retainer-Lamp Glass
29	Spring – Lamp Glass End Trim (Lt or Rt)
30	End Trim – Lamp Glass (Lt or Rt)
31	Screw 6-32 x 1/2“
32	WPL 320261
33	WPL 320257
34	WPL 320211
35	WPL 320202
36	WPL 324728
37	Screw-10-32×1/2“
38	WPL 320697
39	WPL 320698
40	WPL 320240
40	WPL 321673
40	WPL 321675
40	WPL 321676
40	WPL 321674
41	WPL 321670
41	WPL 320476
41	WPL 321671
41	WPL 321699
41	WPL 321672
42	WPL 316365
43	WPL 109180
44	WPL 320243
45	Ballast
46	WPL 320213
47	WPL 321044
48	WPL 324210
49	WPL 321410
50	WPL 324709
51	Almond
51	White
51	Golden Wheat
51	WPL 323822
51	WPL 323821
52	Screw 10-32 x 1/2“
53	Screw 10 – 32×3/8“
54	WPL 320399
55	WPL ARI11494A8
56	WPL 320703
57	WPL 311173
58	WPL 320374
59	WPL 320397
60	WPL 324330
61	Keps Nut 10-32
62	WPL 232365
63	WPL 283763
65	Wire Cover-Fluorescent
66	WPL 323893
67	WPL 324331
