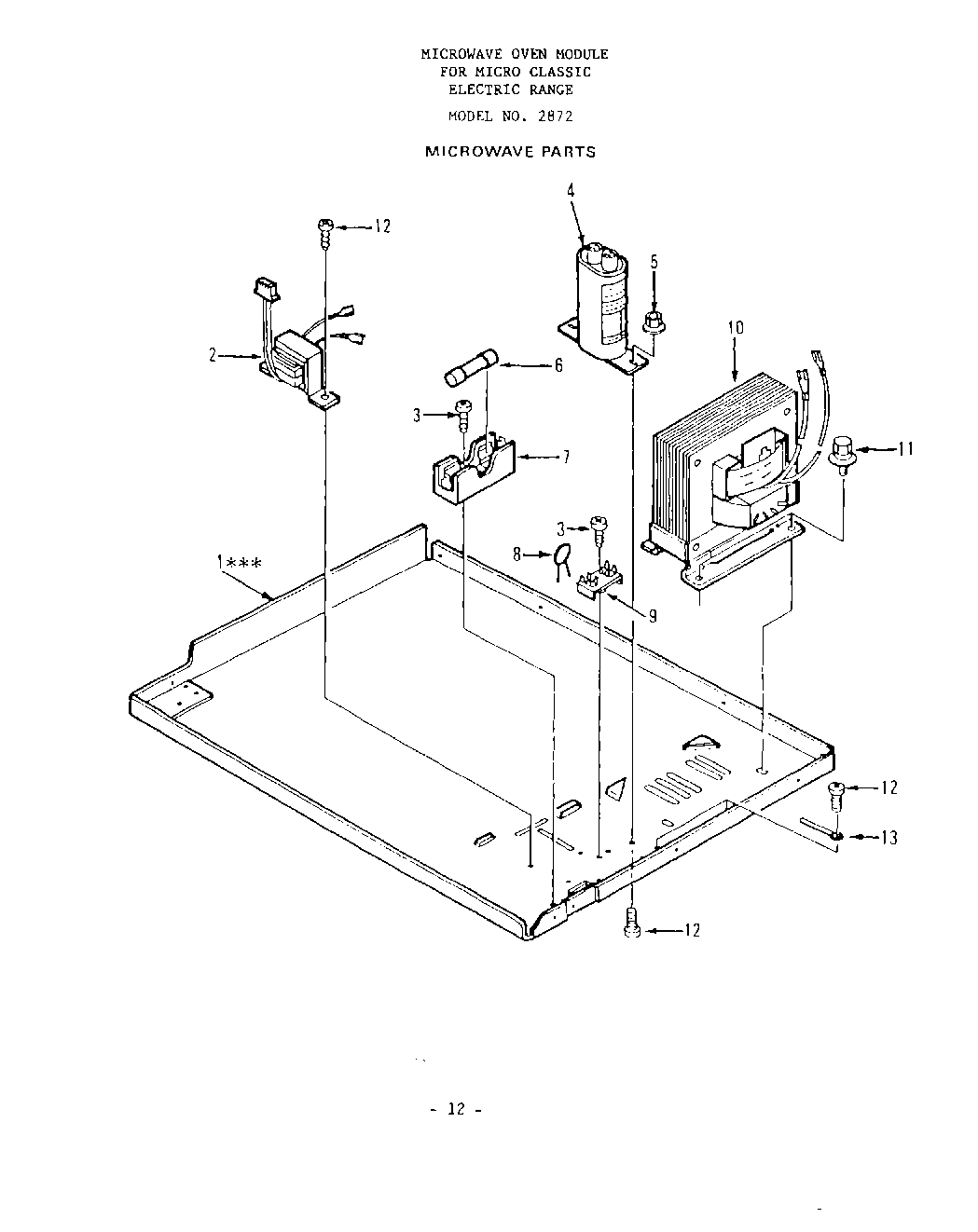

| 1 | Bottom Plate |
| 2 | Step-Down Transformer, P6T-3420 |
| 3 | Screw, Pan Hd. Tapping, 4 x 12 mm, Z1-1 |
| 4 | Guide, Use & Care |
| 5 | Nut, Hex Hd. with Washer, 4 mm, Z1-1 |
| 6 | Fuse, 15A |
| 7 | Fuse Holder (UL Listed) |
| 8 | Varistor |
| 9 | Terminal Board |
| 10 | High Voltage Transformer, 120V Input, H6T-3726 |
| 11 | Bolt, Hex Hd. Machine with Spring Washer and Bolt Washer, 6 x 16 mm, Z1 |
| 12 | Screw, Pan Hd. Diacut, 4 x 10 mm, Z1 |
| 13 | Wire Clip |
