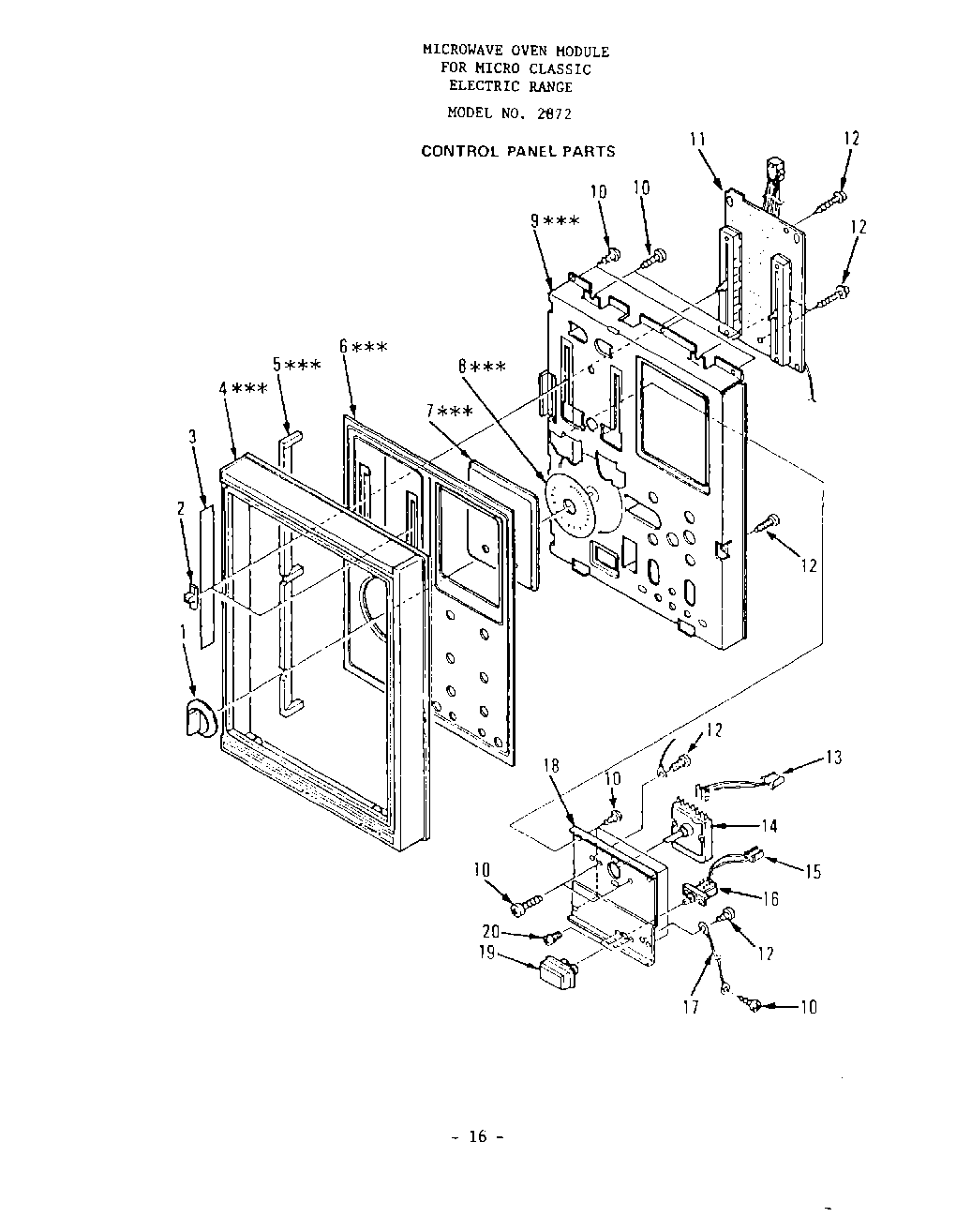

2872^0A 11 – CONTROL PANELadmin2025-04-26T10:51:20+00:002872^0A 11 – CONTROL PANEL
Products
| Position | Product |
|---|
| 1 | Knob, Timer |
| 2 | Knob, Controller |
| 4 | Precaution Label when replacing control frame) |
| 4 | Control Frame with Metal Trimming xxx (also order |
| 5 | WP3351614 Whirlpool Screw |
| 6 | Control Panelxxx |
| 7 | Window Coverxxx 8 780576 Dial Indicator, Timerxxx |
| 9 | Control Basexxx |
| 10 | Screw, Pan Hd. Tapping, 4 x 12 mm, Z1-1 |
| 11 | Power and Control Circuit Board Complete |
| 12 | Screw, Bind Hd. Tapping, 3 x 8 mm, ZK-1 |
| 13 | 3-Wire Harness with Socket, Timer |
| 14 | Timer, Dual Speed 60 min. |
| 15 | 2-Wire Harness with Socket |
| 16 | Start Switch |
| 17 | Ground Lead |
| 18 | Timer Base |
| 19 | Start Button |
| 20 | leveler (2) |
