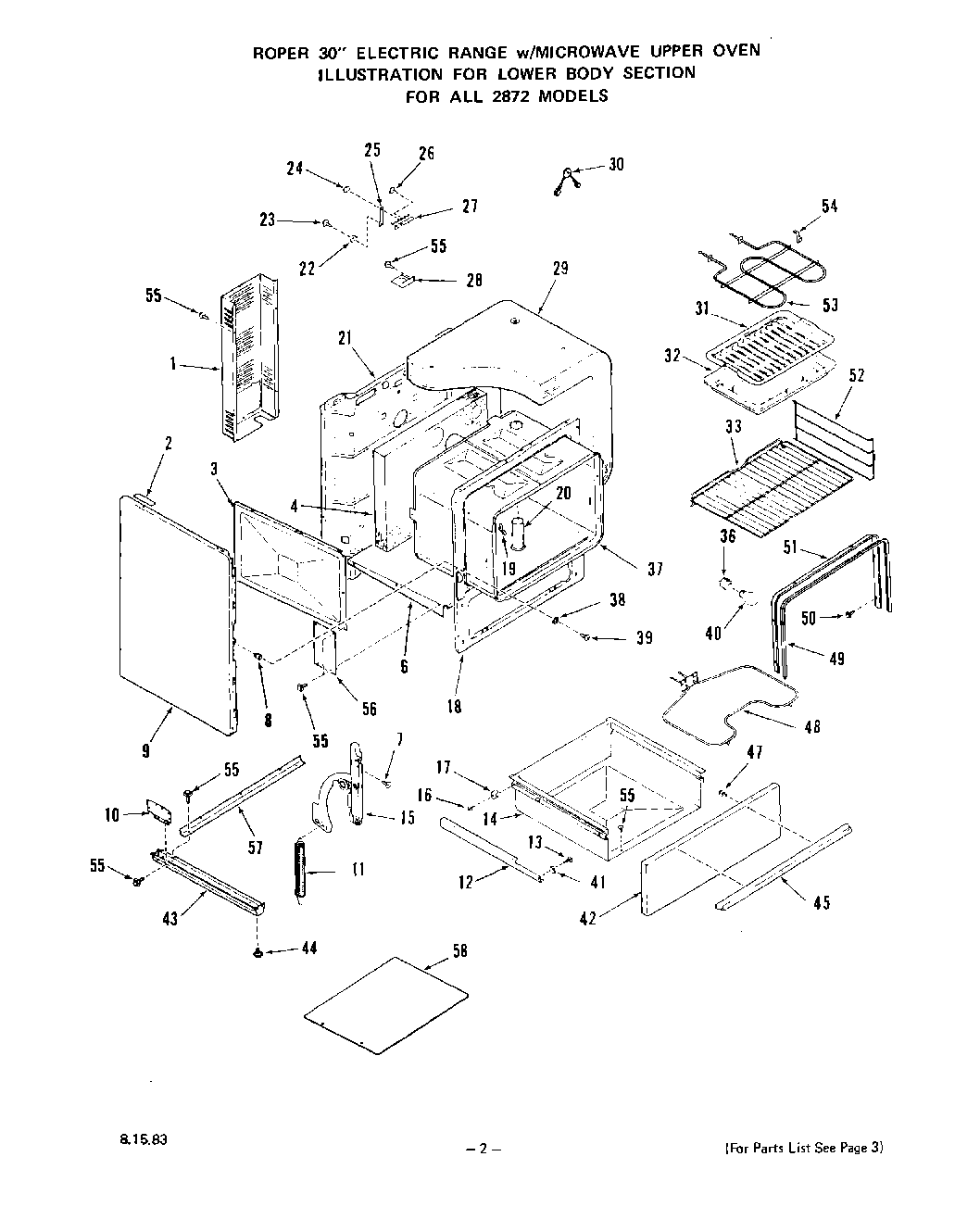

2872W0A 03 – LOWER BODY

Products

Position	Product
1	Wire Shield
2	Spacer-Main Top
3	Retainer-Insulation (Lt. or Rt.)
4	Insulation – Oven Back
6	window, oven door
7	Screw 10-32 x 5/8“
8	Grommet – Screw (8 Req.)
9	Body Side (Lt. or Rt.) (Coffee)
9	Body Side-Lt. or Rt.) (White)
9	Body Side (Lt. or Rt.) (Avocado)
9	Body Side-Lt. or Rt.) (Golden Wheat)
9	Body Side-Lt. or Rt.) (Almond)
10	Bracket-Support & Base (Lt. or Rt.)
11	Spring-Oven Door (Lt. or Rt.)
12	Support-Storage Drawer (Lt. or Rt.)
13	Screw 10-32×17/32“
14	Storage Drawer
15	Left
15	Right
16	Screw 8 – 32 x 3/8“
17	Rear Slide Block – Lt. or Rt.
18	Front Frame
19	Thermostat Bulb Clip (2 Required)
20	Vent Tube
21	Main Back
22	Washer
23	Screw 10-32×7/16“
24	Hex Nut 10-32
25	Ground Strap
26	Screw 10-32×1“
27	Junction Block
28	Range Service Mounting Plate
29	Insulation-Oven Top & Sides (1 Piece)
30	Varistor
31	Broiler Pan Grid
32	Broiler Pan
33	WPL 305408
36	Holder-Oven Light Bulb
37	Oven Body
38	Washer
39	WP303896 Whirlpool High Limit Thermostat
40	Oven Lamp Bulb
41	Front Slide Block-(Lt. or Rt.)
42	WPL 309043
42	WPL 309042
42	WPL 309044
42	White
42	WP912618 Whirlpool Dishwasher Screw
43	WPL 323929
44	Leg Leveler (4 Required)
45	WPL 286357
47	WPL 295850
48	CH2858 Chromalox Bake Element 240V/2700W
49	WPL 296102
50	Screw 10 – 32 x 17/32“
51	WPL 296103
52	WPL 305409
53	Broiler Element
54	Support-Broiler Element
55	WP112432 Whirlpool Nut Assembly
56	Sh
57	WPL 323931
58	WPL 319163
