2872W0A 06 – LOWER OVEN CONTROL, LITERATURE
Written by
in

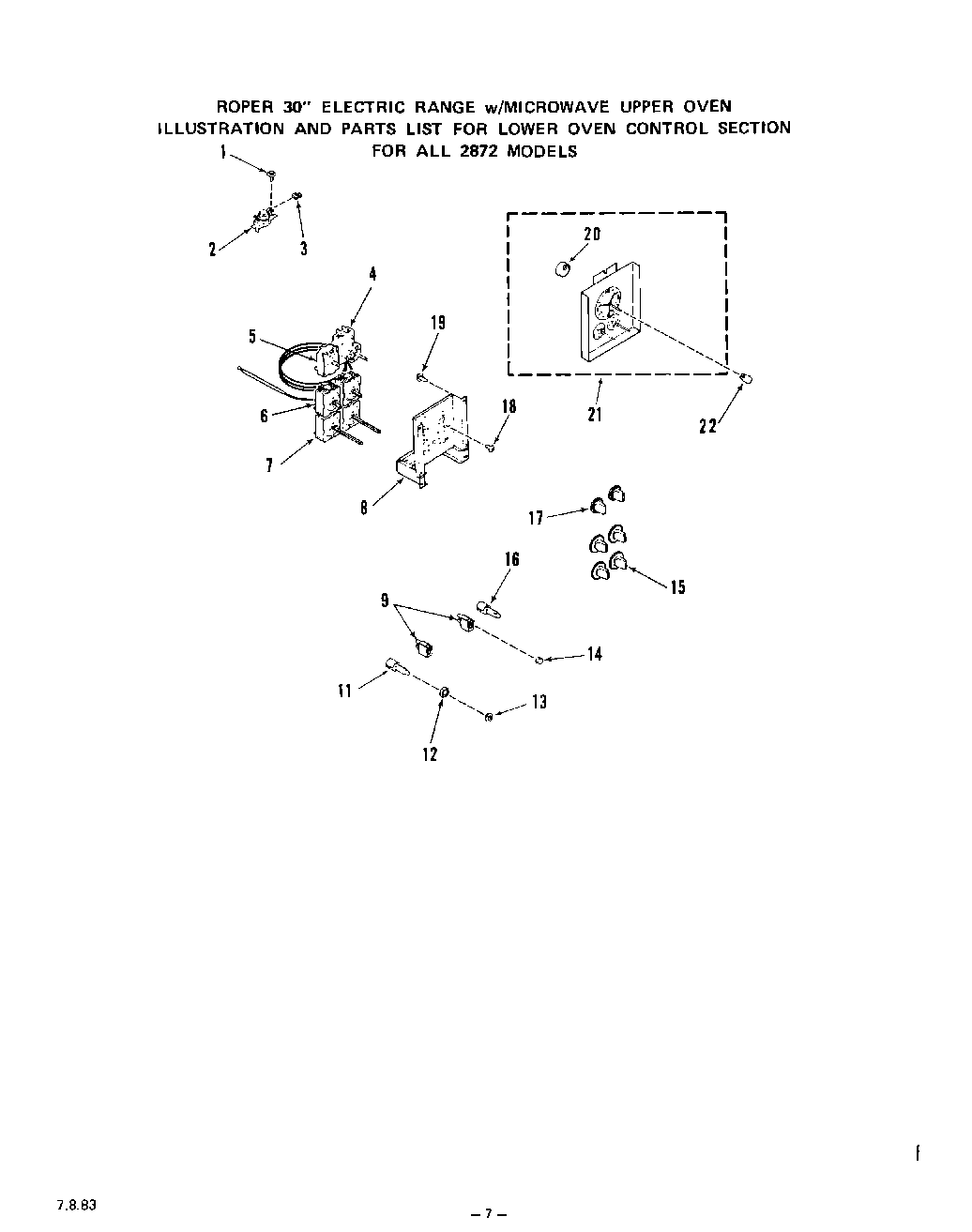

2872W0A 06 – LOWER OVEN CONTROL, LITERATURE
Products
Position
Product
1
Screw 8-32×3/8“
2
Auxiliary Thermostat
3
Speed Nut 8-32
4
Thermostat
5
Selector Switch
6
Infinite Control (Rt. & Lt. Rear)
7
Infinite Control (Rt. & Lt. Rear)
8
Mounting Bracket-Controls
9
Indicator Light
11
Push Switch – Oven Light
12
Lock Nut
13
Knurled Nut
14
Lens-Indicator Light
15
Knob-Infinite Control (4 Req)
16
Push Switch (Fluorescent Light)
17
Knob-Selector & Thermostat Switch
18
WPL 78565
19
Screw 10-32×5/16“
20
Clock Motor
21
Clock w/1 Hr. Timer (Inc`s. 20)
22
Knob-Clock (Start & Stop Time)
22
xCookbook – Microwave
22
xWire Harness (xRepair Parts Manual)
22
xWire Harness (xInstallation & Reference Guide)
22
xWire Harness (xQuick Reference Guide)
22
xWire Harness (xUse & Care Manual)
22
xWire Harness (Selector Switch)
22
xWire Harness (Controls)
22
Main Top
←
