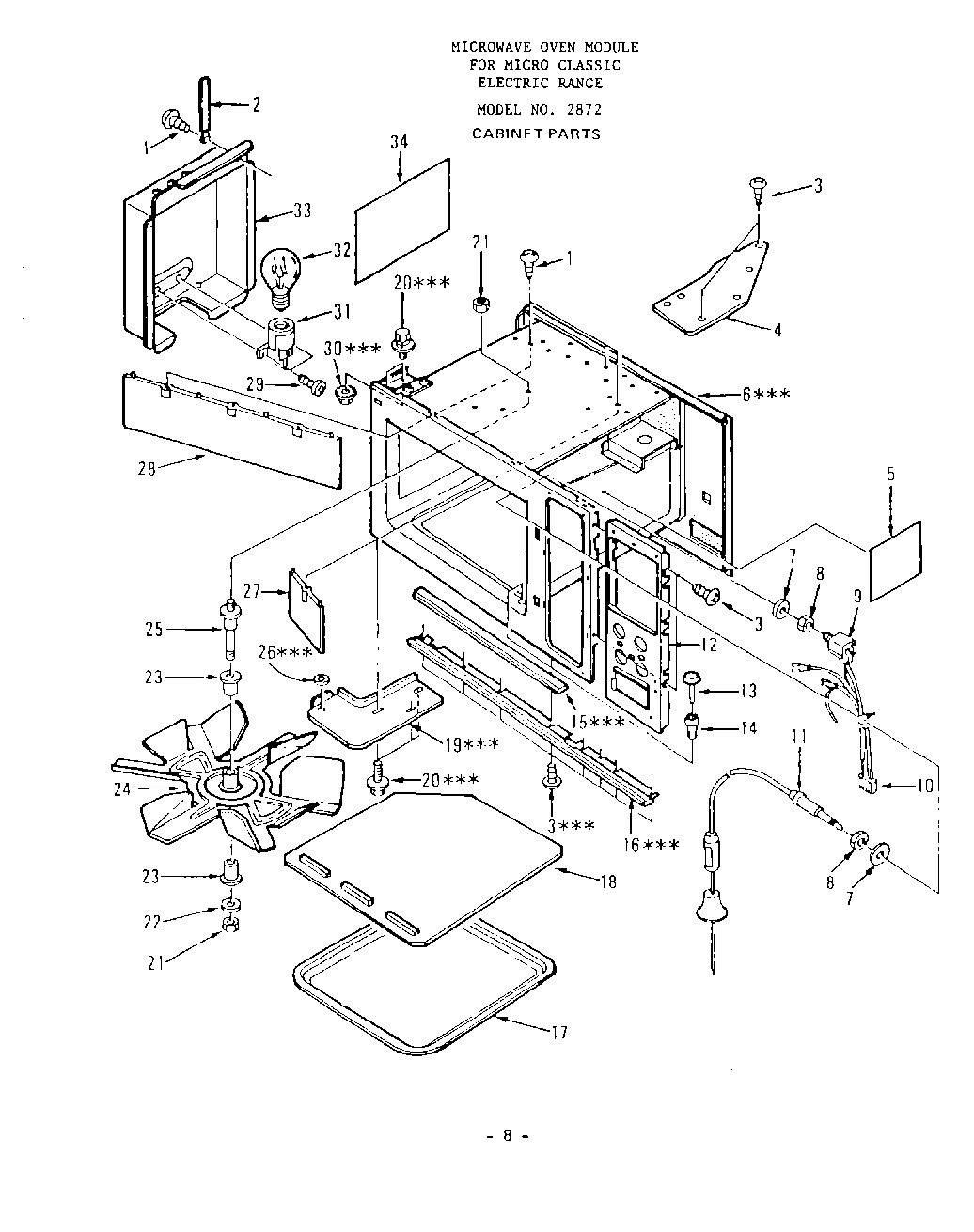

2872W0A 07 – CABINET

Products

Position	Product
1	Screw, Truss Hd. Tapping, 4 x 8 mm, Z1-2
2	Wire Clip
3	Screw, Truss Hd. Tapping, 4 x 10 mm, Z1-1
4	Stay, Cavity Frame
5	Caution Label and Name Plate
6	Oven Cavity (Also order Ill. No. 5 Caution Label and One Circuit Diagram when replacing Oven Cavity.
6	xCircuit Diagram
7	Wiper, Ram
8	Special Nut, Temperature Probe Jack
9	Jack, Temperature Probe
10	5-Wire Harness with Socket
11	Temperature Probe
12	Cavity Frame
13	Plastic Stopper, Glass Tray
14	Plastic Stopper
15	Ferrite Rubber xxx
16	Trim Bracket xxx
17	Glass Tray
18	Stirrer Cover
19	Hinge, Lower xxx
20	Bolt, Hex Hd. with Phillips Slot, 5 x 12 mm Z1
21	Retainer, Nut (2)
22	Special Washer
23	Collar, Stirrer Shaft
24	Stirrer Fan Ass`y
25	Stirrer Shaft
26	Washer, 5 mm U
27	W10439651 Whirlpool Air Conditioner Motor Drive
28	Air Guide, Stirrer, Left
29	Screw, Pan Hd. Tapping, 3 x 8 mm, Z1-2
30	Nut, Hex Hd. with Washer, 5 mm, Z1
31	Lamp Socket (UL Listed)
32	Lamp, 120V 30W
33	Bracket, Lamp Socket
34	xCookbook – Microwave
34	Escutcheon, Control
