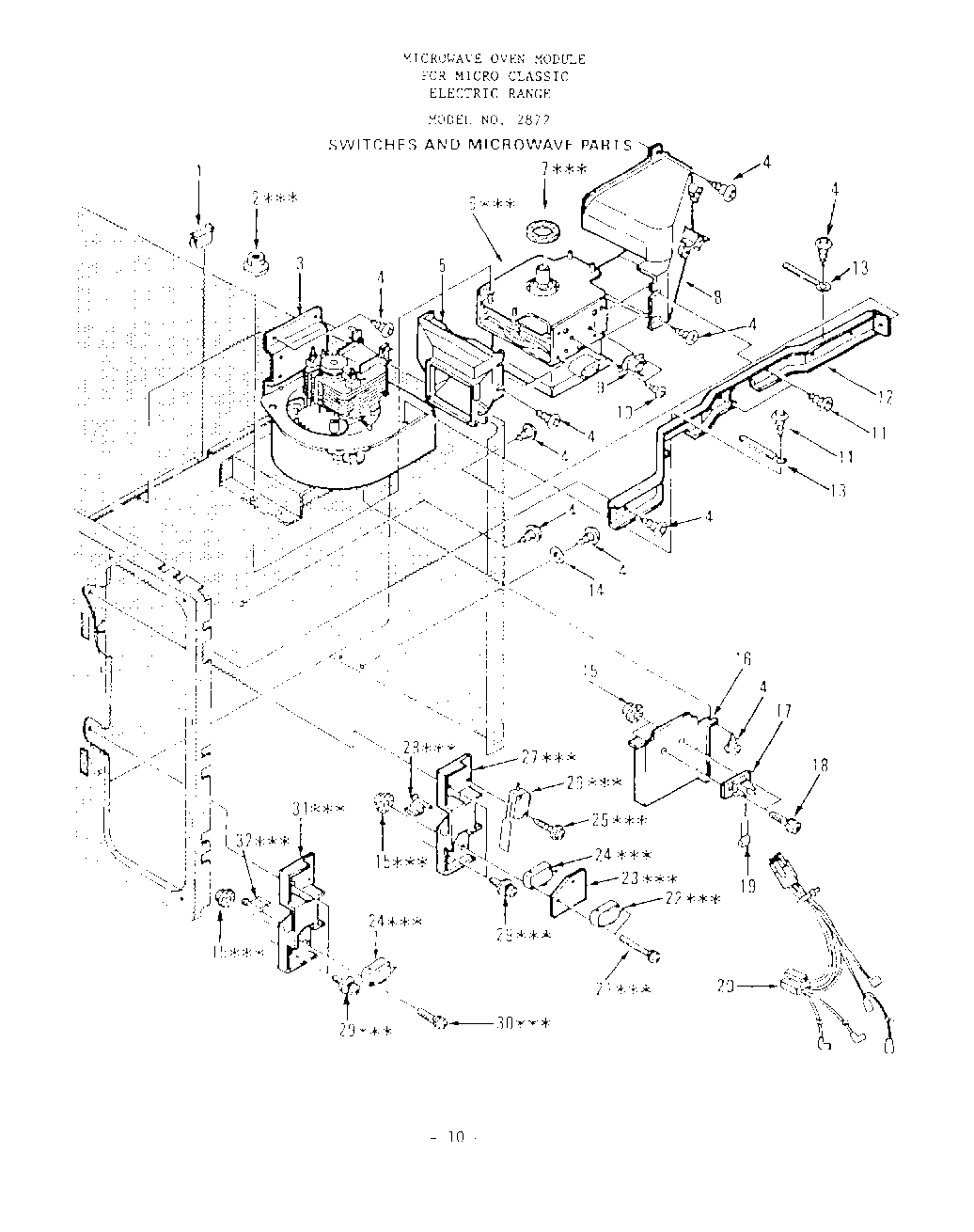

2872W0A 08 – SWITCHES AND MICROWAVE

Products

Position	Product
1	Insulator, Oven Cavity
2	Nut, Hex Hd. with Washer, 5 mm, Z1
3	Blower Assembly
4	Screw, Truss Hd. Tapping, 4 x 10 mm, Z1-1
5	Duct, Intake
6	Magnetron, 2M-172JB1 xxx (Includes Ill. No.7)
7	Magnetron Gasket xxx
8	Duct, Exhaust
9	Thermostat, Magnetron
10	Screw, Pan Hd. Tapping, 3 x 6 mm, Z1-1
11	Screw, Truss Hd. Tapping, 4 x 14 mm, Z1-1
12	Stay, Cavity and Magnetron
13	Wire Clip
14	Lockwasher, External Tooth, 4 mm, U
15	Nut, Hex Hd. with Washer, 3 mm, Z1
16	Heat Sink
17	Triac
18	leveler (2)
19	Polyester Film Capacitor, 0.1 mfd +/- 20 Percent, 50V
20	Connector, Triac
21	Screw, Pan Hd. Machine with Spring Washer, 3 x 30mm, Z1
22	Micro Switch, Door Sensing
23	Insulation Sheet, Micro Switch
24	Micro Switch, 1st and 2nd Interlock
25	Screw, Pan Hd. Tapping, 3 x 16 mm, Z1-1 xxx
26	Micro Switch, Interlock Monitor xxx
27	Lever Stopper
28	Latch Lever
29	Screw, Pan Hd. Machine with Washer and Spring Washer, 4 x 12 mm, Z1
30	Screw, Pan Hd. Machine with Spring Washer, 3 x 20 mm, Z1xxx
31	Lever Stopper
32	Latch Lever
