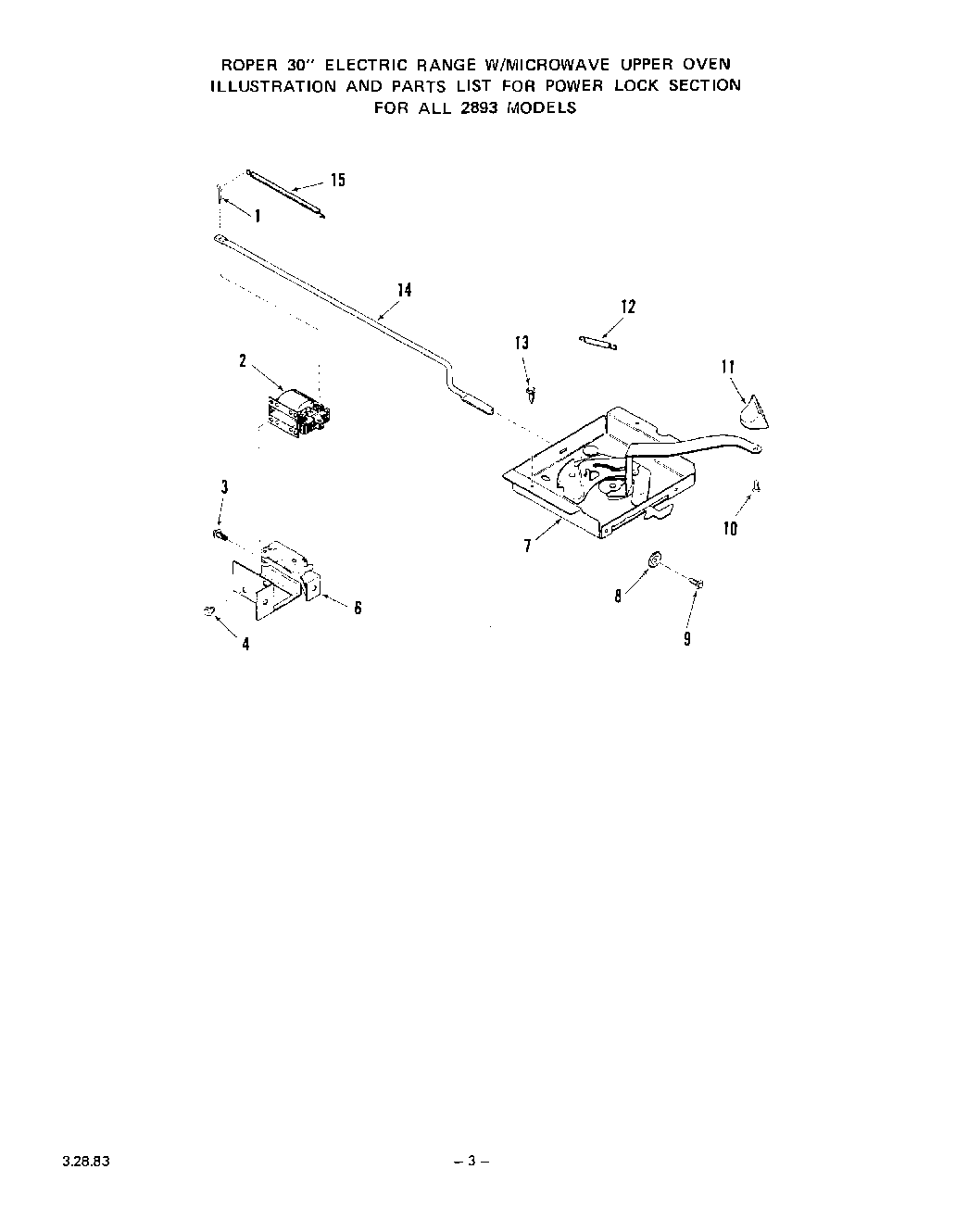

| 1 | Cotter Pin |
| 2 | Solenoid Only |
| 3 | WPL 295850 |
| 4 | Mounting Screw |
| 6 | Bracket w/Switch |
| 7 | Oven Door Lock Asem. (Inc. Key 12) |
| 8 | WPL 21067 |
| 9 | WPL 316365 |
| 10 | Screw 6-32x15/32`` |
| 11 | Knob-Lock Handle |
| 12 | Spring-Lock Handle |
| 13 | Screw 10-32x17/32`` |
| 14 | Switch, Oven Light |
| 15 | Spring-Solenoid |
