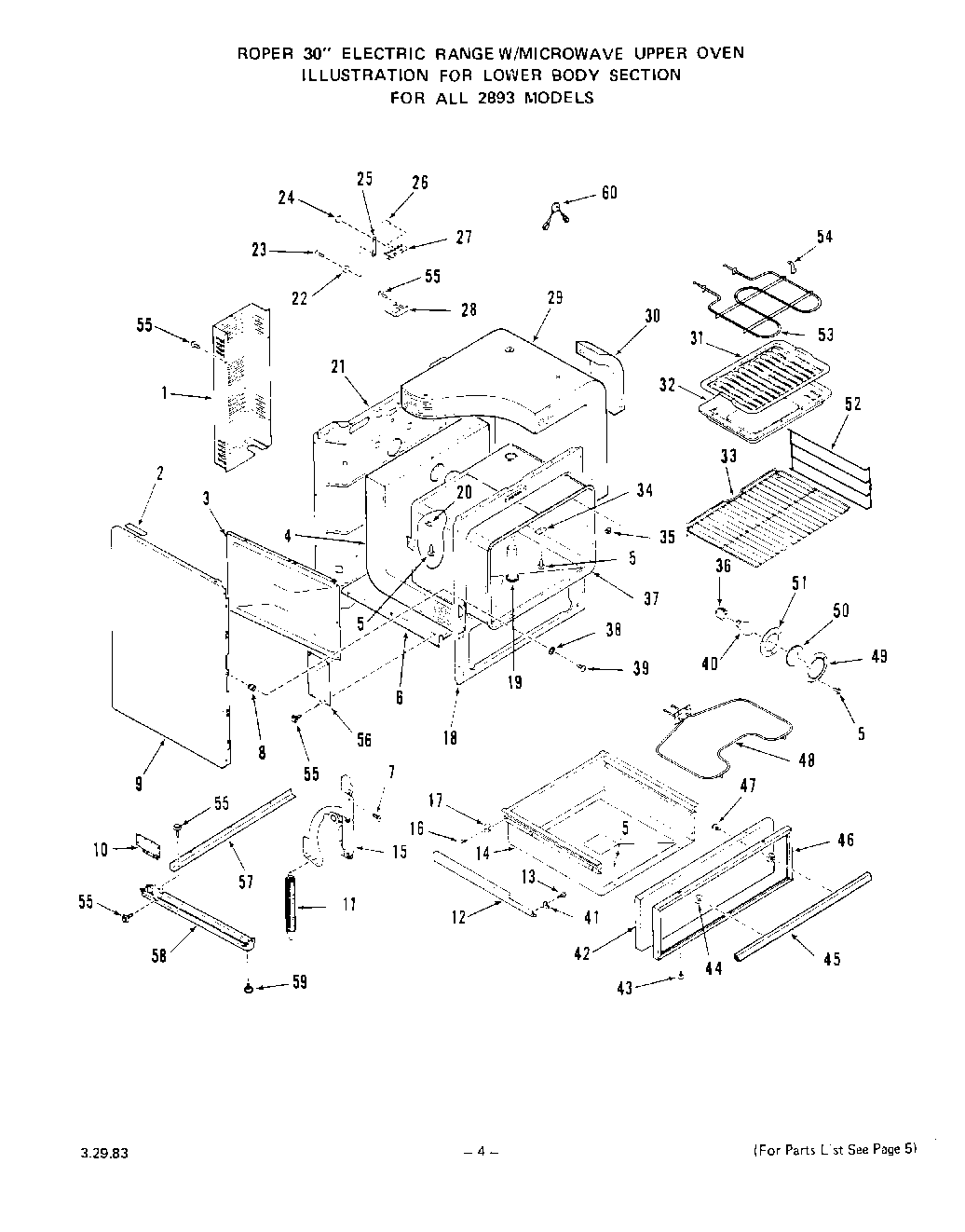

2893^0A 04 – OVEN DOOR

Products

Position	Product
1	Wire Shield
2	Spacer-Main Top
3	Retainer-Insulation (Lt. or Rt.)
4	Insulation-Oven Back & Bottom
5	WPL 316365
6	window, oven door
7	Screw 10-32 x 5/8“
8	Grommet – Screw (8 Req.)
9	Body Side (Lt. or Rt.) (Coffee)
9	Body Side-Lt. or Rt.) (Almond)
9	Body Side-Lt. or Rt.) (White)
9	Body Side (Lt. or Rt.) (Avocado)
9	Body Side-Lt. or Rt.) (Golden Wheat)
9	Body Side (Lt. or Rt.)
10	Bracket-Support & Base (Lt. or Rt.)
11	Bracket, Receptacle
12	Support-Storage Drawer (Lt. or Rt.)
13	Screw 10-32×17/32“
14	Storage Drawer
15	Right
15	Left
15	Hinge-Oven Door
16	Screw 8 – 32 x 3/8“
17	Rear Slide Block – Lt. or Rt.
18	Front Frame
19	Vent Tube
20	Cover Plate-Thermostat Bulb
21	Main Back
22	Washer
23	Screw 10-32×7/16“
24	Hex Nut 10-32
25	Ground Strap
26	Screw 10-32×1“
27	Junction Block
28	Range Service Mounting Plate
29	Insulation-Oven Top & Sides (1 Piece)
30	Insulation (Rt. or Lt.)
31	WPL 319159
32	WPL 319158
33	Oven Rack (2 Req)
34	Cover
35	Thermostat Bulb-Retainer (2 Req)
36	Holder-Oven Light Bulb
37	Oven Body
38	Washer
39	WP303896 Whirlpool High Limit Thermostat
40	Oven Lamp Bulb
41	Front Slide Block-(Lt. or Rt.)
42	Front Panel-Storage Drawer (Black)
43	Screw 6-32×3/8“
44	Spacer
45	Handle-Broiler Door
46	Frame-Front Panel
47	Screw 10 – 32 x 1/2“
48	Bake Element
49	Retainer-Oven Light Lens
50	Lens-Oven Light
51	Gasket-Lens
52	Knob-Lock Handle
53	Broil
54	Support-Broiler Element
55	WP112432 Whirlpool Nut Assembly
56	Sh
57	WPL 323931
58	WPL 323929
59	Leg Leveler (4 Required)
60	Varistor
