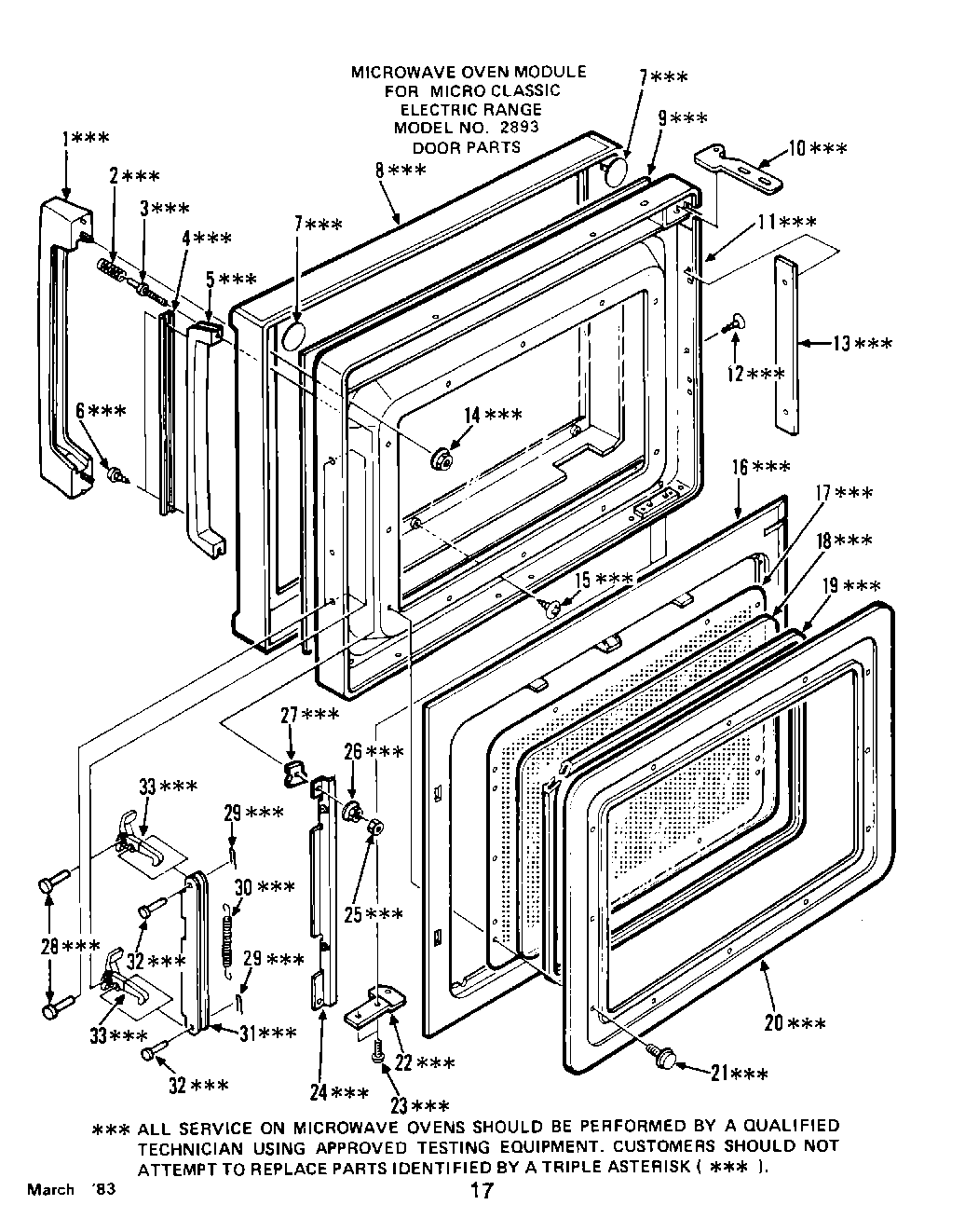

2893^0A 11 – OVEN MODULES

Products

Position	Product
1	Door Handle with Plastic Strip xxx
2	Spring, Door Handle
3	Shaft, Door Handle
4	Metal Reinforcement
5	Handle Grip
6	Screw, Bind Hd. Tapping, 3 x 8 mm, Z1-1 xxx
7	Cushion, Glass Barrier
8	Door Sash with Metal Trimming xxx
9	Glass Barrier
10	Upper Hinge, Door
11	Door Main Frame
12	Screw, Flat Hd. Tapping, 3 x 8 mm, ZK-1
13	Ferrite Rubber
14	Nut, Hex Hd. with Washer, 4 mm, Z1-1
15	Screw, Truss Hd. Tapping, 3 x 6 mm, Z1-2
16	Choke Dielectric with Ferrite Rubber
17	Perforated Screen
18	Glass Panel
19	Door Seal
20	Retaining Frame, Perforated Screen
21	W11729437 Whirlpool Retaining Bracket
22	Lower Hinge Door
23	Screw, Truss Hd. Machine, 4 x 10 mm Z1
24	Latch Lever
25	Nut, Hex, Hd. 3 mm, Z1
26	Nut, Hex Hd. with Washer, 3 mm, Z1
27	Rubber Packing, Handle Shaft
28	W11023674 Whirlpool Compactor Leveling Wheel
29	Stopper, Latch Lever Shaft
30	Spring, Door Latch
31	Screw & Washer Assembly (2)
32	W11672206 Whirlpool Leveling Wheel
33	Door Latch
