2893W0A 06 – LOWER OVEN CONTROL

2893W0A 06 – LOWER OVEN CONTROL

Written by

in

2893W0A 06 – LOWER OVEN CONTROL

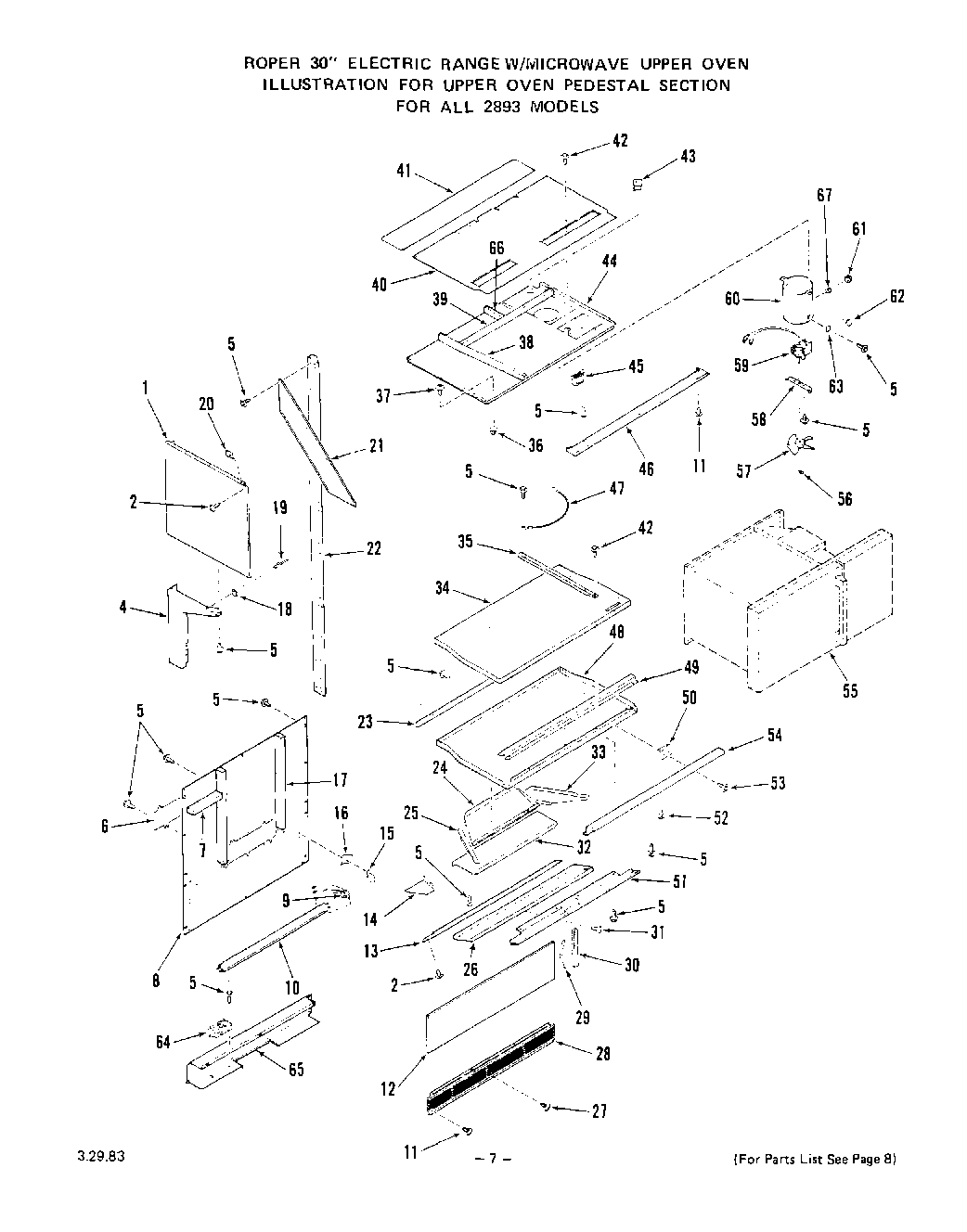

Products

PositionProduct
1Upper Oven Body Side (Almond-Right)
1Upper Oven Body Side (Golden Wheat-Right)
1Upper Oven Body Side (White-Left)
1Upper Oven Body Side (Golden Wheat-Left)
1Upper Oven Body Side (Coffee-Left)
1Upper Oven Body Side (Almond-Left)
1Upper Oven Body Side (White-Right)
1Upper Oven Body Side (Coffee-Right)
1Upper Oven Body Side
1Upper Oven Body Side (Avocado-Right)
1Upper Oven Body Side (Avocado-Left)
2Screw 6-32×3/8“
4Pedestal-Upper Oven (Coffee-Right)
4WPL 325283
4Pedestal-Upper Oven
4Pedestal-Upper Oven (Avocado-Left)
4Pedestal-Upper Oven (Coffee-Left)
4Pedestal-Upper Oven (Avocado-Right)
4WPL 325293
4WPL 325286
4WPL 325292
4WPL 325289
4WPL 325287
5WP112432 Whirlpool Nut Assembly
6Cover Plate
7Foam Strip
8Wire Cover
9Holder-Fluorescent Lamp (Right)
9Holder-Fluorescent Lamp
9Holder-Fluorescent Lamp (Left)
10Fluorescent Lamp (20 W – 24“)
11Screw 6-32 x 3/8“
12Fluorescent Lamp Glass
13Upper Retainer-Lamp G
13White
13Almond
13Upper Retainer-Lamp Glass (Coffee)
13Golden Wheat
13upper retainer-lamp glass
14WPL 322933
14WPL 322935
14End-Vent
15Bracket-Fluorescent Lamp (Right)
16Shield-Wire
17WPL 320696
18Retainer
19Pop Rivet
20WPL 320196
21WPL 324791
22WPL 324058
23WPL 320117
24WPL 322937
25WPL 322949
26WPL 321660
26WPL 321662
26WPL 321663
26WPL 321664
26Cover-Vent
26WPL 321661
27Screw 6-32 x 1/2“
28Lower Retainer-Lamp Glass
29Spring – Lamp Glass End Trim (Lt or Rt)
30End Trim – Lamp Glass (Lt or Rt)
31Screw 6-32 x 1/2“
32WPL 320261
33WPL 320257
34WPL 320211
35WPL 320202
36WPL 324728
37Screw-10-32×1/2“
38WPL 320697
39WPL 320698
40WPL 320240
40WPL 321673
40WPL 321675
40WPL 321676
40WPL 321674
40WPL ARI11525A1
41WPL 320476
41WPL 321671
41WPL 321670
41WPL 321669
41WPL 321672
41WPL ARI11526A9
42WPL 316365
43WPL 109180
44WPL 320243
45Ballast
46WPL 320213
47WPL 321044
48WPL 324210
49WPL 321410
50WPL 324709
51WPL ARI11527A1
51WPL 323822
51WPL 323821
51Golden Wheat
51White
51Almond
52Screw 10-32 x 1/2“
53Screw 10 – 32×3/8“
54WPL 320399
55WPL ARI11528A1
56WPL 320703
57WPL 311173
58WPL 320374
59WPL 320397
60WPL 324330
61Keps Nut 10-32
62WPL 232365
63WPL 283763
64Oven Relay
65Wire Cover-Fluorescent
66WPL 323893
67WPL 324331
