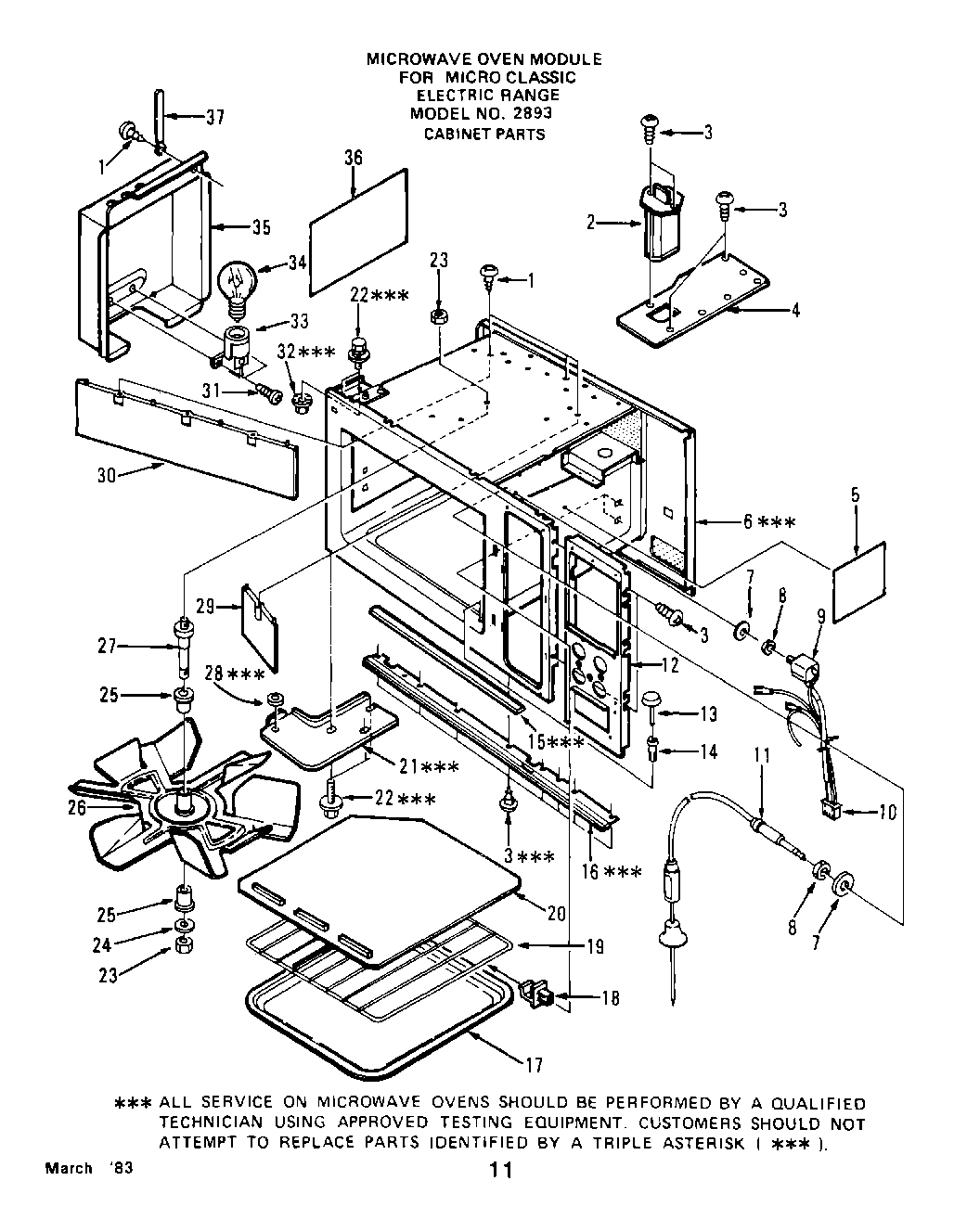

2893W0A 08 – SWITCHES AND MICROWAVE

Products

Position	Product
	xCircuit Diagram
1	Screw, Truss Hd. Tapping, 4 x 8 mm, Z1-2
2	Back-up Battery
3	Screw, Truss Hd. Tapping, 4 x 10 mm, Z1-2
4	Magnetron Gasket xxx
5	Caution Label and Name Plate
6	Oven Cavity xxx (Also order 780524 Caution Label Key No. 5 and One 780526 Circuit Diagram when repla
7	Wiper, Ram
8	Special Nut, Temperature Probe Jack
9	Jack, Temperature Probe
10	5-Wire Harness with Socket
11	Temperature Probe
12	Cavity Frame
13	Plastic Stopper, Glass Tray
14	Plastic Stopper
15	Ferrite Rubber xxx
16	Trim Bracket xxx
17	Glass Tray
18	Rack Holder
19	Metal Rack
20	Stirrer Cover
21	Hinge, Lower xxx
22	Bolt, Hex Hd. with Phillips Slot, 5 x 12 mm Z1
23	Retainer, Nut (2)
24	Special Washer
25	Collar, Stirrer Shaft
26	Stirrer Fan Ass`y
27	Stirrer Shaft
28	Washer, 5 mm U
29	W10439651 Whirlpool Air Conditioner Motor Drive
30	Air Guide, Stirrer, Left
31	Screw, Pan Hd. Tapping, 3 x 8 mm, Z1-2
32	Nut, Hex Hd. with Washer, 5 mm, Z1
33	Lamp Socket (UL Listed)
34	Lamp, 120V 30W
35	Bracket, Lamp Socket
36	Escutcheon, Control
37	Wire Clip
