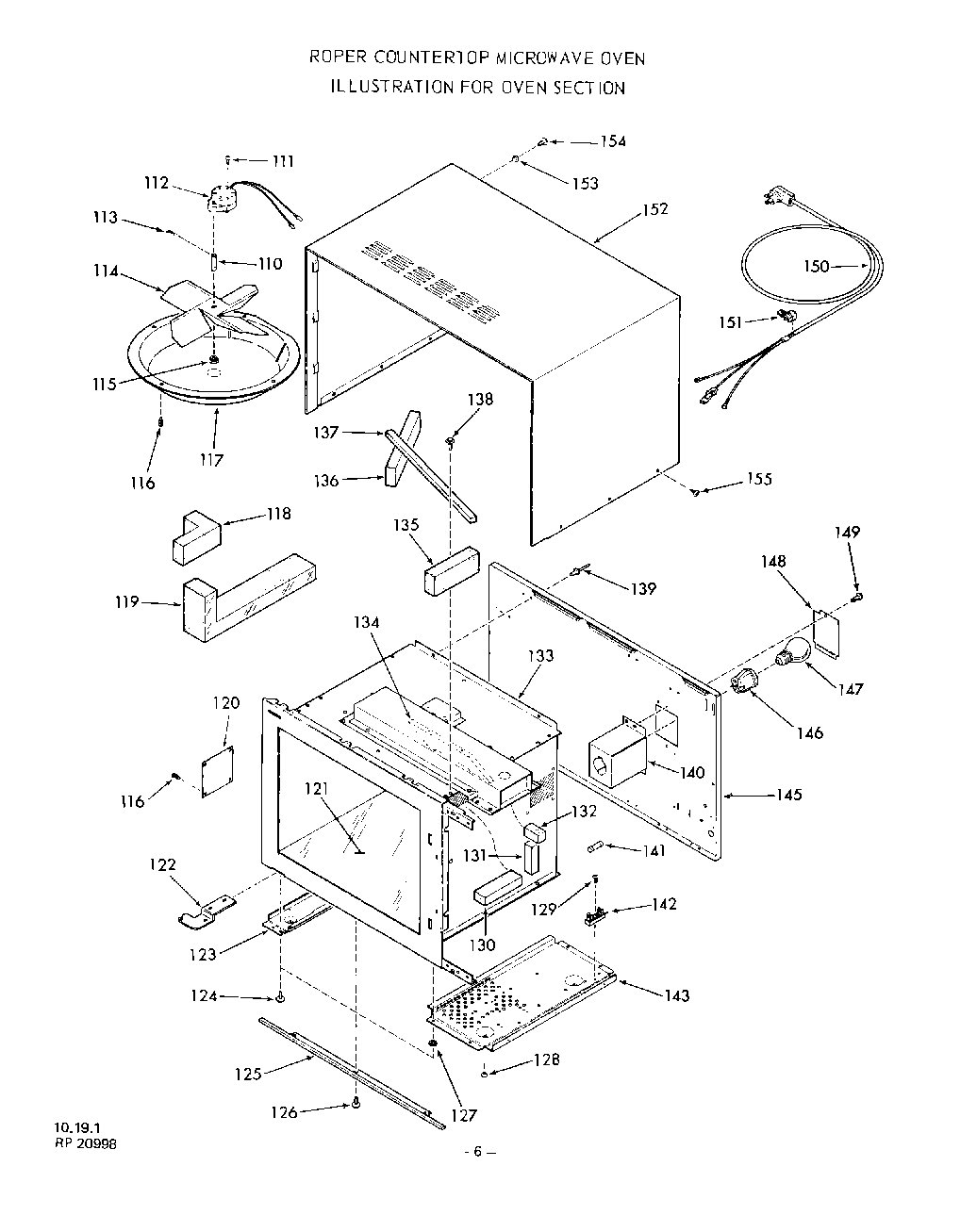

2961000 05 – OVEN

2961000 05 – OVEN

Written by

in

2961000 05 – OVEN

Products

PositionProduct
110Shaft-Stirrerxxx
111Screw 4-40×1/4“
112Stirrer Motorxxx
113Retainer Clipxxx
114Blade-Stirrerxxx
115Nut
116Accordian Rivetxxx
117Cover-/Stirrerxxx
118Duct-Wrapper Dischargexxx
119Duct-Cavity Discargexxx
120Cover-Oven Lightxxx
121Glass Cook Shelfxxx
122Bottom Hinge-Oven Doorxxx
123Base Supportxxx
124Screw 10-32×3/8“xxx
125Barrier-Intrusionxxx
126WPL 232183
127Keps Nut 10-32
128Rivet-Plastic (4 Req.)
129Screw 6-32×1/4“
130Foam Strip 4“ x 3/4“ x 1 1/8“xxx
131Foam Strip 2-1/2“ x 3/4“ x 3/4“xxx
132Foam Strip 1-1/2“ x 3/4“ x 3/4“xxx
133Oven Capacity Complete (Inc. 121)
134Shifter-Phasexxx
135Duct-Wrapper Dischargexxx
136Foam Strip 7-5/8“ x 3/4“ x 1-5/8“xxx
137Foam Strip 14“ x 3/8“ x 1/2“xxx
138Screw 10-32×17/32“
139Pop Rivetxxx
140Housing-Oven Lightxxx
141Fuse Onlyxxx
142Element, 2600 Watt
143Base-Component Mounting
145Main Backxxx
146Holder-Oven Light Bulb
147Oven Lamp Bulb
148Access Platexxx
149WPL 295850
150Service Cordxxx
151Strain Relief
152Wrapper Cabinetxxx
153Lockwasherxxx
154Screw 8-32 x 3/8“
155Screw 6-32 x 5/16“
