2961010 06 – OVEN DOOR

2961010 06 – OVEN DOOR

Written by

in

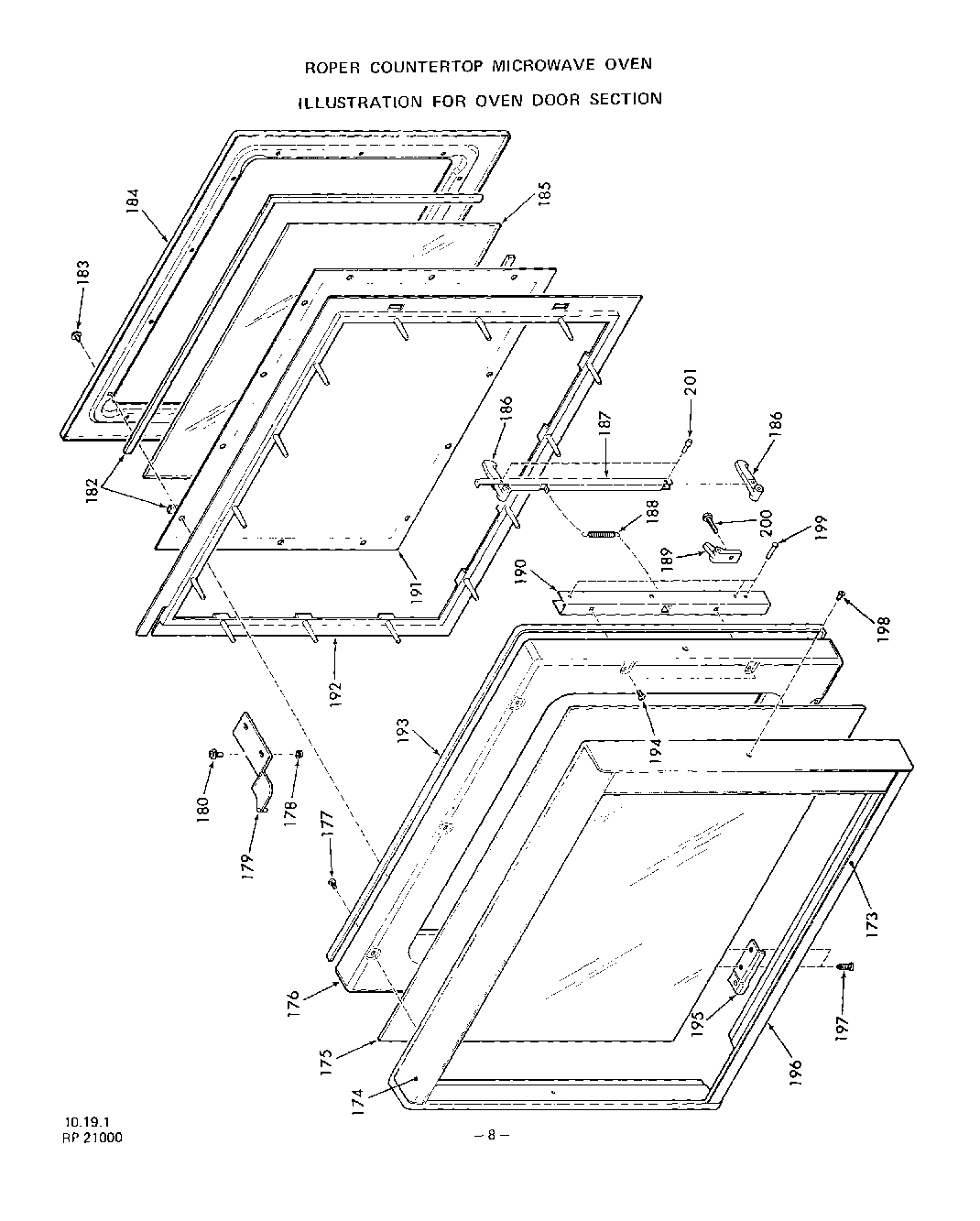

2961010 06 – OVEN DOOR

Products

PositionProduct
173Bottom Trim-Oven Doorxxx
174Top Trim-Oven Doorxxx
175Outer Glass-Oven Doorxxx
176Frame-Oven Doorxxx
177Screw 4-24×1/4“
178Keps Nut 10-32
179Bracket-Upper Hingexxx
180Screw 10-32×3/8“xxx
182Foam Tapexxx
183Screw 8-32 x 7/16“xxx
184Retainer-Glassxxx
185Inner Glass-Oven Doorxxx
186Hook-Latchxxx
187Link-Latchxxx
188Springxxx
189Stop-Latch
190Bracket-Latchxxx
191Shieldxxx
192Cover-Chokexxx
193Absorber-Energyxxx
194Screw 6-32 x 3/8“
195Bracket – Lower Hingexxx
196Ov. Dr. Trim Asem. (Incl Keys 173 & 174)
197Screw 10-32 x 5/16“xxx
198Screw 6AB x 3/8“xxx
199Rivet (3 Required)
200Screw 10-32 x 3/4“xxx
201Pin (2 Required)
