2961020 03 – MAGNETRON

2961020 03 – MAGNETRON

Written by

in

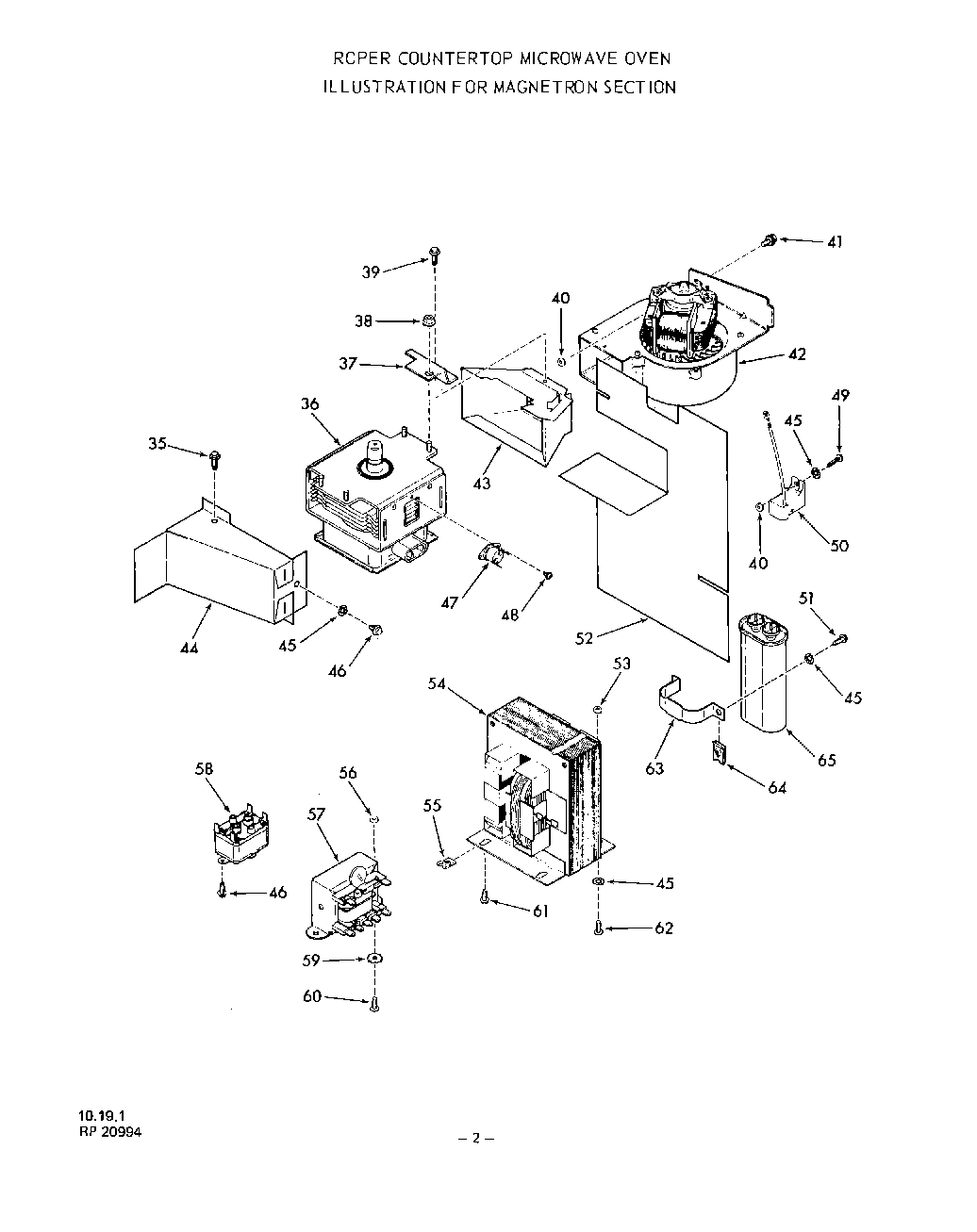

2961020 03 – MAGNETRON

Products

Position	Product
35	Screw 10-32×17/32“
36	Magnetronxxx (2961020)
36	Magnetronxxx (2961000, 2961010)
37	Spring, Door Stop (2)
38	Flange Nutxxx
39	Screw 8-32×3/8“
40	Keps Nut 10-32
41	Screw 10-32×3/8“xxx
42	Blower Asm. w/Motorxxx
43	Blower Duct-Magnetronxxx (2961020)
43	Blower Duct-Magnetronxxx (2961000, 2961010)
44	Inlet Duct-Cavityxxx (2961020)
44	Inlet Duct-Cavityxxx (2961000, 2961010)
45	Lockwasher
46	Screw 8 – 32×3/8“
47	Thermostatxxx
48	Screw 4-40×1/4“
50	WP681249 Whirlpool Screw Assembly
51	WPL 295850
52	Air Barrier
53	Keps Nut 10-24
54	Transformer-Hi Voltage
55	Speed Nut
56	Keps Nut 8-32
57	Transformer-control
58	Relay-Pwer
59	Washer
60	Screw 8-32×3/8“
61	Screw 10Bx1/2“
62	Screw 10-24×1/2“
64	Speed Nut 10 – 32
65	Capacitor-Hi Voltage
