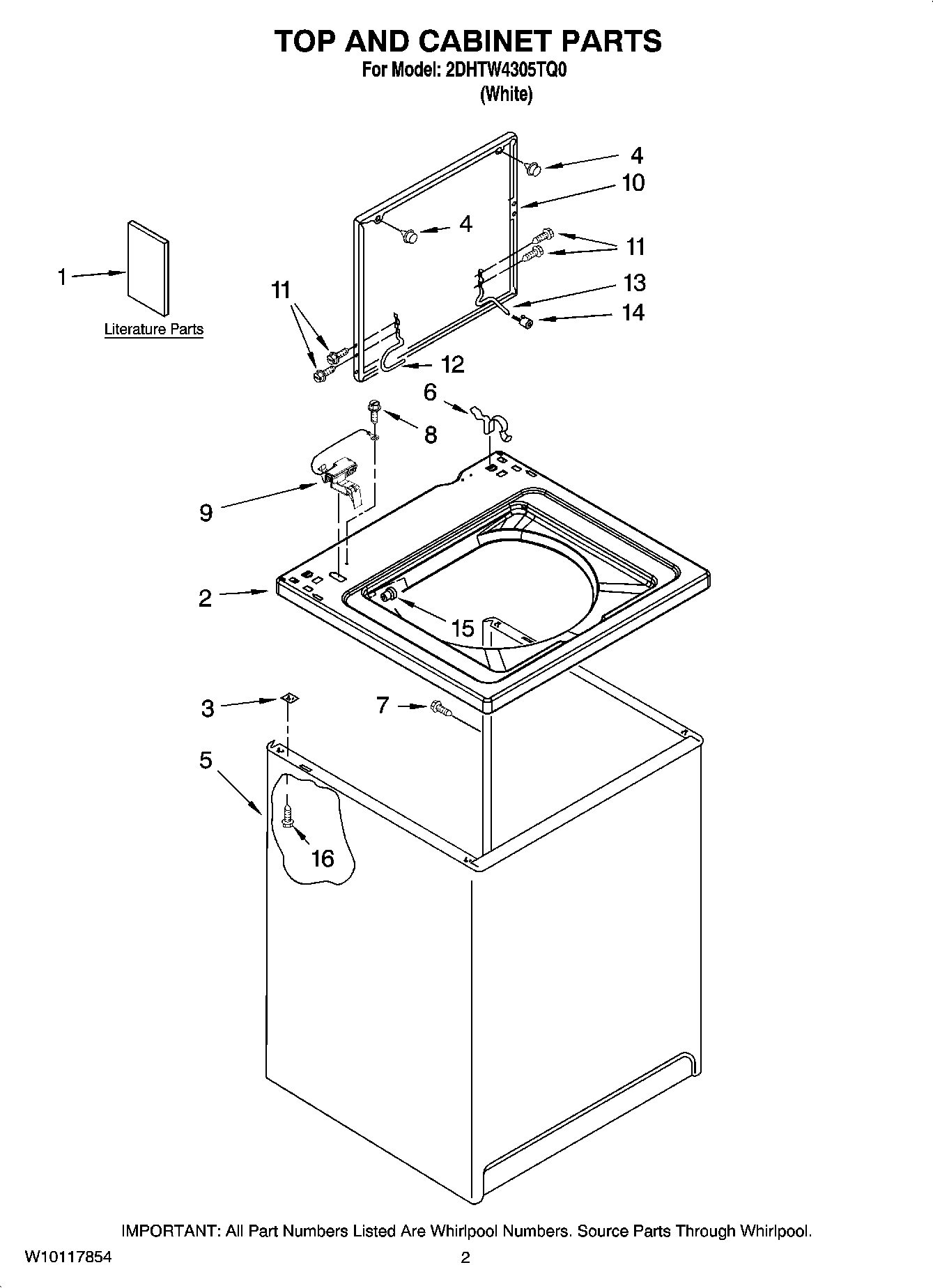

2DHTW4305TQ0 01 – TOP AND CABINET PARTS

Written by

Products

Position	Product
1	MAY W10117857
1	MAY W10117050
1	MAY W10117854
1	MAY W10117856
2	MAY 8559484
3	MAY 62750
4	MAY 9724509
5	Cabinet
6	MAY 62780
7	SCREW
8	SCREW, GEARCASE COVER, MOUNTING (8) (10-24 X 3/8)
9	MAY 8318084
10	MAY W10093681
11	Screw And Washer
12	MAY 8318088
13	HINGE, LID (RIGHT HAND)
14	MAY 19119
15	Hinge, Bearing (2)
16	SCREW
