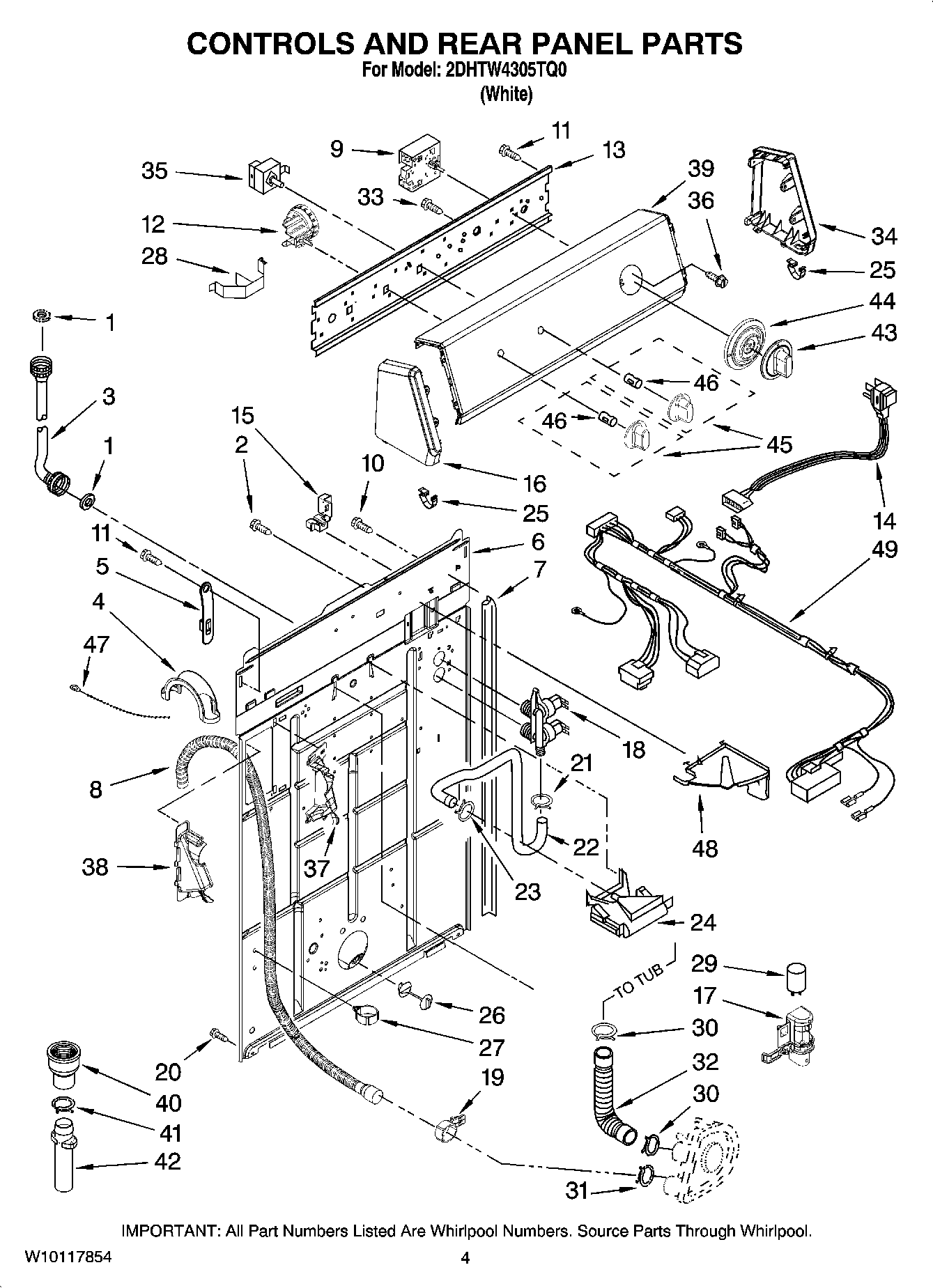

2DHTW4305TQ0 02 – CONTROLS AND REAR PANEL PARTS

Products

Position	Product
1	ACCESSORY PARTS, WASHER, INLET HOSE
2	SCREW
3	Hose, Water Inlet (Hot Water)
3	Hose, Water Inlet (2) (Blue Coupler)
4	U-Bend
5	Strap, Console
6	MAY 8318015
7	MAY 62747
8	MAY 8559374
9	MAY W10117048
10	SCREW, GEARCASE COVER, MOUNTING (8) (10-24 X 3/8)
11	SCREW,8-18 X 3/8
12	MAY 8577845
13	MAY 8579677
14	Cord, Power
15	MAY 3952821
16	Cap, End (L.H.) (White)
17	MAY 8318046
18	MAY 3952164
19	MAY 8541668
20	Screw, Mixing Valve Mounting
21	MAY 301958
22	MAY 8541607
23	MAY 370450
24	Thermister, Inlet
25	MAY 8312709
26	MAY 8519200
27	MAY 8541667
28	Clip, Harness & Pressure Switch
29	MAY 8572717
30	Clamp, Hose (2)
31	MAY 8317496
32	Hose & Clamp Assembly
33	SCREW
34	Cap, End (R.H.) (White)
35	MAY 3949179
36	SCREW
37	MAY 8541669
38	MAY 8541658
39	MAY W10115399
40	MAY 8577375
41	Clamp, Hose
42	MAY 3363920
43	MAY W10110061
44	MAY W10110062
45	Knob, Control (1) (White)
46	CLIP, SPRING
47	MAY 3347868
48	MAY 8539874
49	MAY W10121729
