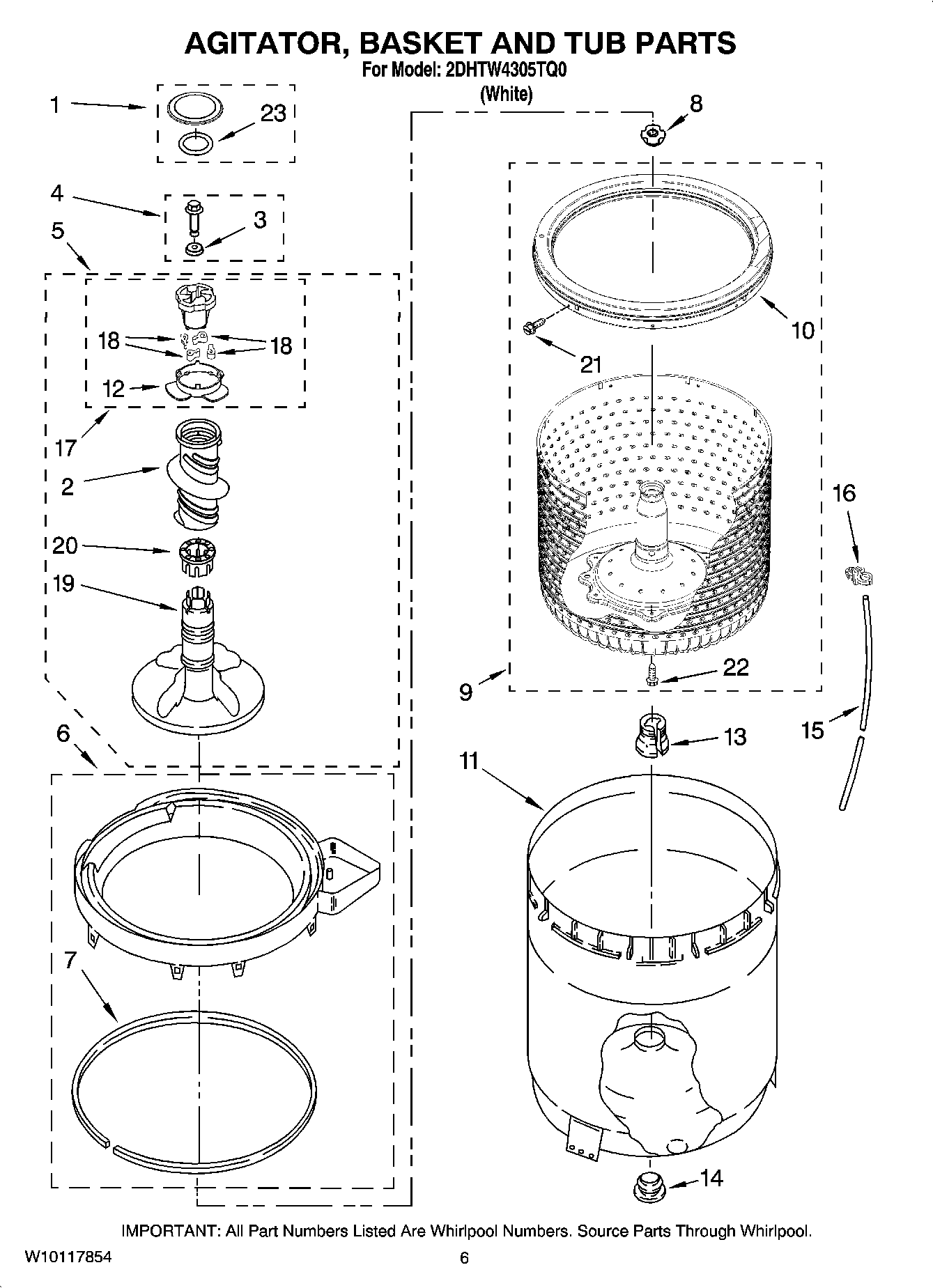

2DHTW4305TQ0 03 – AGITATOR, BASKET AND TUB PARTS

2DHTW4305TQ0 03 – AGITATOR, BASKET AND TUB PARTS

Written by

in

2DHTW4305TQ0 03 – AGITATOR, BASKET AND TUB PARTS

Products

Position	Product
1	MAY 8565983
2	MAY 3360824
3	MAY 3949550
4	Screw & Washer
5	Agitator(Complete)
6	Tub Ring
7	MAY 3976308
8	MAY 21366
9	MAY W10042080
10	MAY W10116946
11	MAY 63849
12	BEARING, CAM
13	Block, Drive
14	MAY 383727
15	MAY 3347780
16	Clip, Harness (1)
17	Cam, Driven
18	Dog, Agitator (4)
19	MAY W10093670
20	SPACER, THRUST
21	MAY W10112540
22	MAY W10112537
23	MAY 358912
