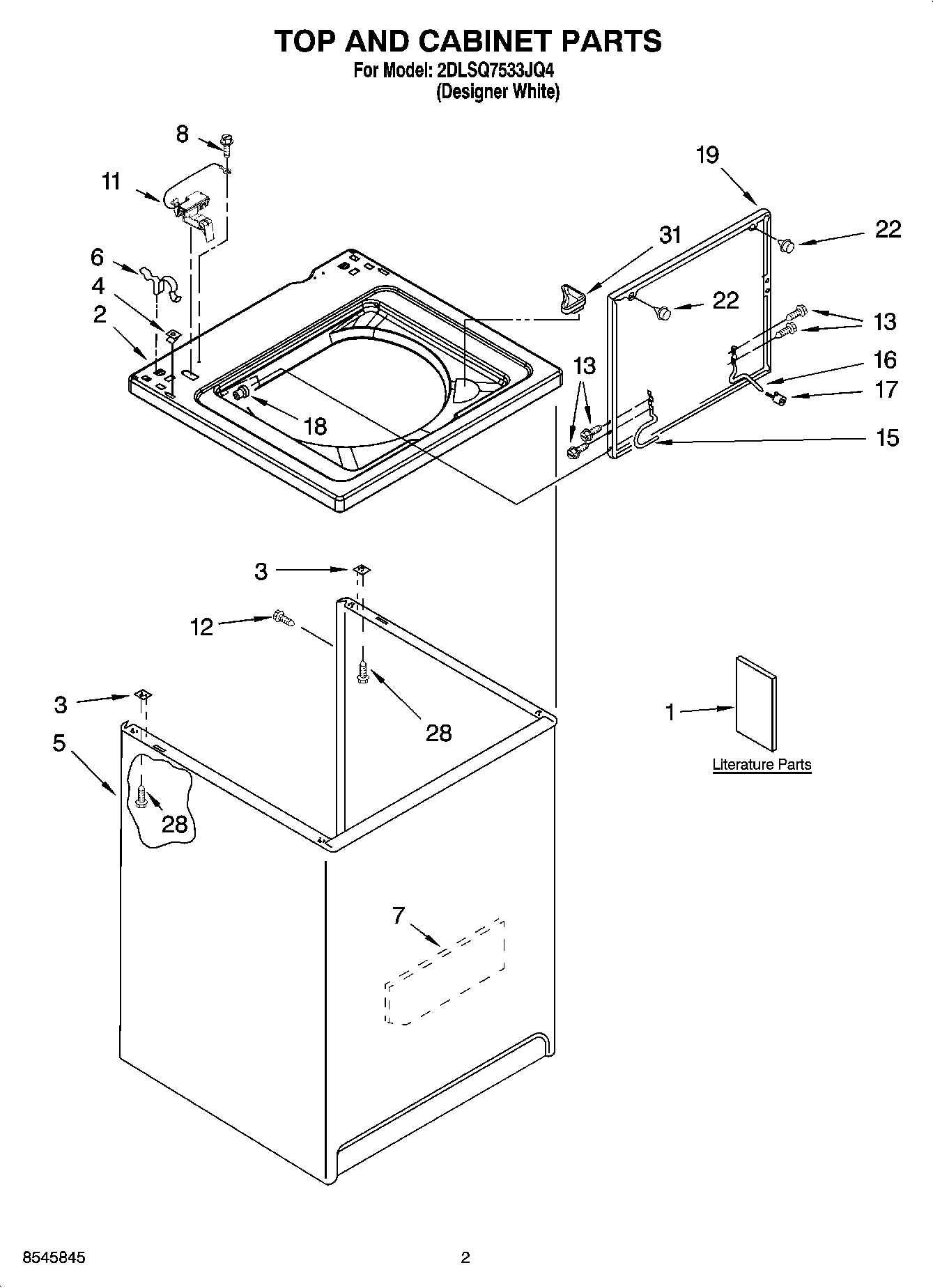

2DLSQ7533JQ4 01 – TOP AND CABINET PARTS

2DLSQ7533JQ4 01 – TOP AND CABINET PARTS

Written by

in

2DLSQ7533JQ4 01 – TOP AND CABINET PARTS

Products

PositionProduct
1Repair Parts List
1Wiring Diagram
1Use & Care Guide
1Installation Instructions
2Top (White)
3WP62750 Whirlpool Spacer
4WP357213 Whirlpool Hinge Stopper
563424 Whirlpool Cabinet Assembly
6WP62780 Whirlpool Cabinet Clip
7Cabinet – Sound Damper
8WP3351614 Whirlpool Screw
11WP8318084 Whirlpool Washer Lid Switch Assembly
12WP308685 Whirlpool Microwave Screw
13SCREW
158318088 Whirlpool Hinge Assembly
16WP54583 Whirlpool Hinge
17Bumper, Lid Hinge
18WP21258 Whirlpool Washer Lid Hinge Bearing
19WPW10193857 Whirlpool Lid Assembly
22WP9724509 Whirlpool Bumper
28WP3390631 Whirlpool Screw
31WP3362952 Whirlpool Bezel
